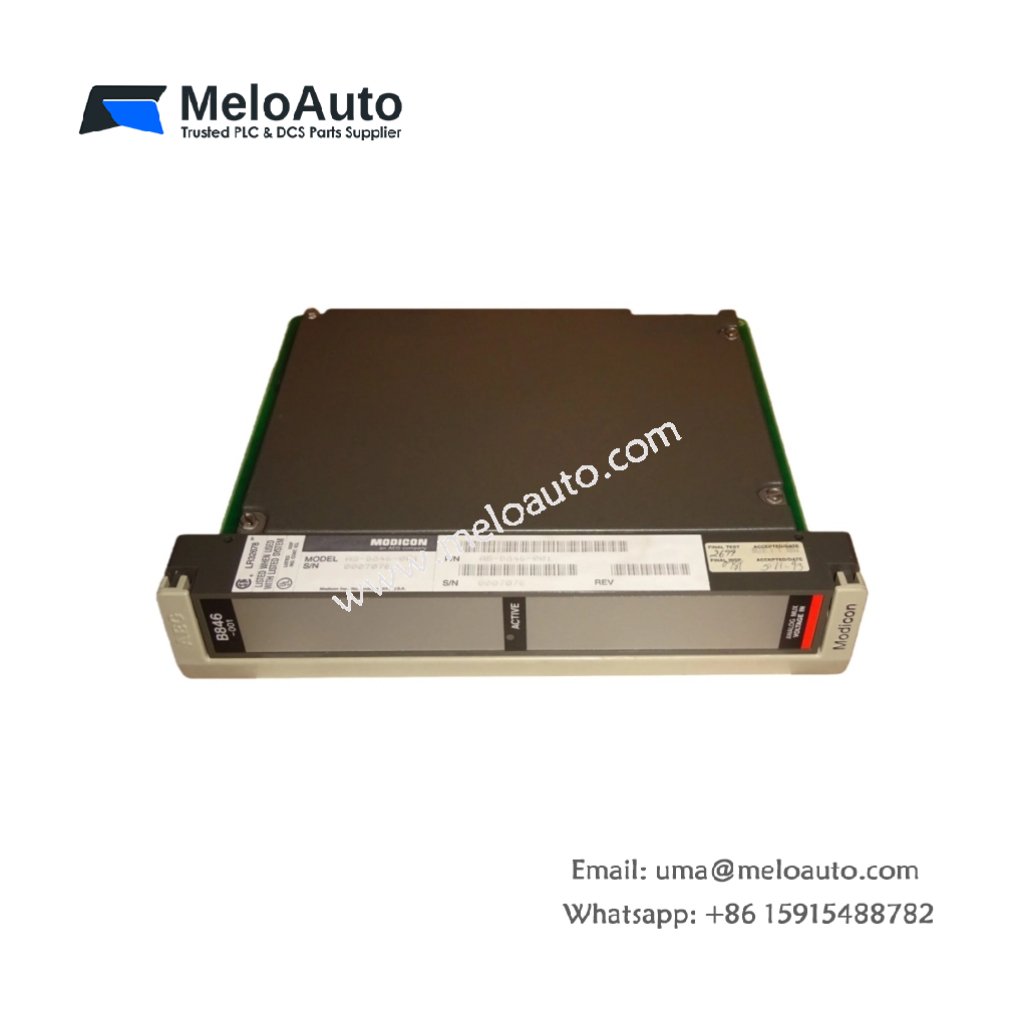

Schneider ASB846001 – Analog Input Multiplexer Module

Overview

The Schneider ASB846001 is an advanced analog input multiplexer module, part of Schneider Electric’s 800 Series. It features 16 input channels and supports a versatile input voltage range from -10 to 10 VDC, making it ideal for a wide range of industrial applications. With a fast response time of 3 ms and precise switching behavior, this module ensures reliable and efficient data acquisition in your system.

Key Features

• 16 Input Channels: The ASB846001 can handle 16 individual input channels, providing flexibility for complex systems.
• Wide Input Voltage Range: It supports an input voltage range of -10 to 10 VDC, accommodating various signal types.
• Fast Response: The module offers a 3 ms response time, ensuring rapid and accurate signal processing.
• Switching Behavior: Featuring a Break before Make switching mechanism, it guarantees minimal signal interference during transitions.
• Low Power Consumption: The module operates with low power requirements: 65 mA at +5 VDC and 1 mA at +4.3 VDC.
• Input Impedance: It has an input impedance equivalent to B873 or B875, ensuring compatibility with various sensors.

Technical Specifications

Applications

The Schneider ASB846001 module is ideal for applications that require precise analog signal handling, including:

• Industrial Automation: Efficiently manage multiple analog inputs in industrial systems.
• Signal Conditioning: Ideal for systems that need accurate multiplexing of analog signals.
• Data Acquisition: Perfect for collecting precise data from sensors across various industrial applications.
• Measurement Systems: Enables accurate input handling for various measurement tasks in real-time.
