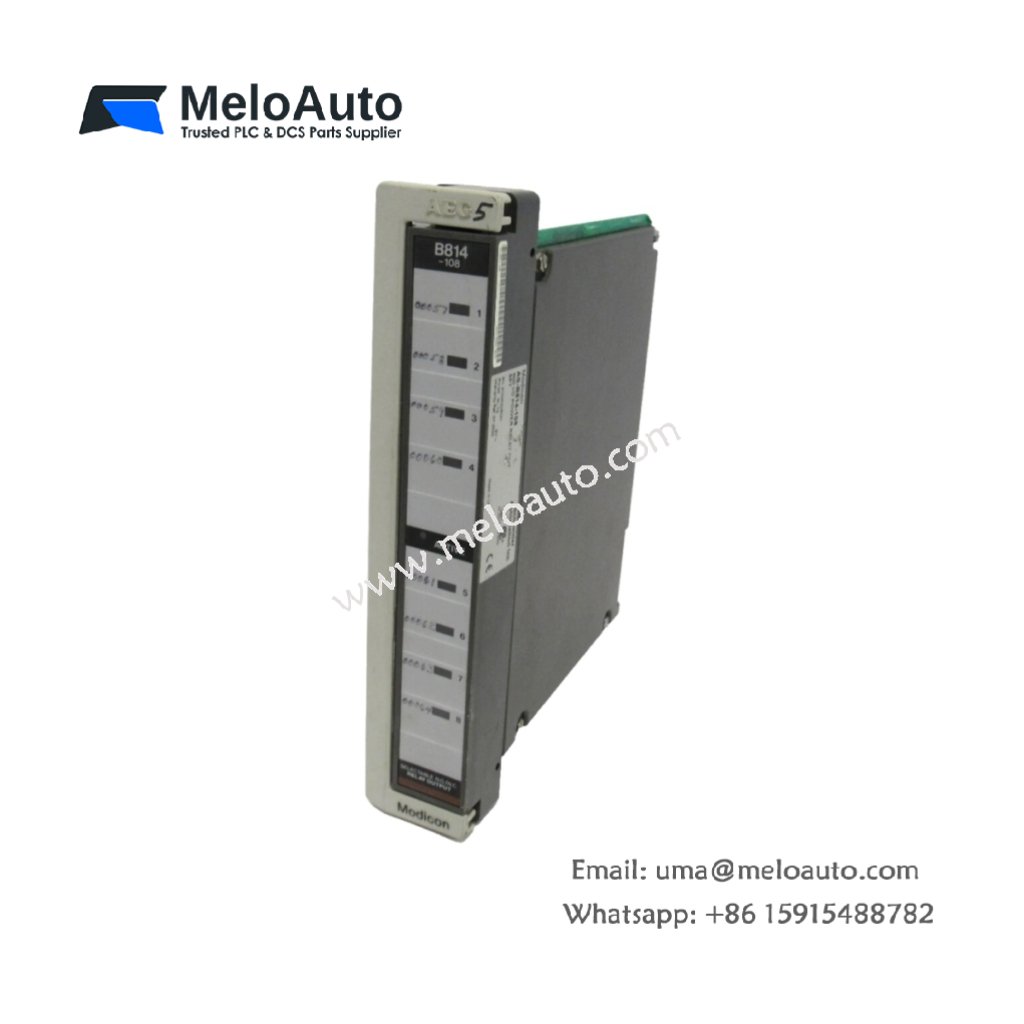

Schneider ASB814108 Output Module

The Schneider ASB814108 Output Module provides reliable and efficient control for industrial automation systems. With 8 relay output points, it supports both Normally Open (NO) and Normally Closed (NC) configurations, offering flexibility for various industrial applications.

Key Features of the Schneider ASB814108

• Model: Schneider ASB814108
• Manufacturer: Schneider Electric
• Category: Output Module
• Relay Configuration: The Schneider ASB814108 features 8 output points that can be configured as Normally Open (NO) or Normally Closed (NC). This flexibility meets the needs of a wide range of control requirements.
• Current Rating: This module handles up to 5 AMP at 30 VDC and 4 AMP at 230 VAC, ensuring efficient control of industrial equipment.
• Voltage Range: It operates across two voltage ranges: 30 VDC and 230 VAC. This versatility makes it compatible with different power configurations.
• Mounting: The Schneider ASB814108 mounts easily on a DIN rail, making installation fast and secure in any standard control panel or enclosure.
• Dimensions: The compact design (80 mm x 120 mm x 75 mm) ensures that it fits well even in space-constrained installations, optimizing panel space.
• Weight: At just 0.45 kg (0.99 lbs), the Schneider ASB814108 is lightweight and easy to handle, making it simple to integrate into existing systems.
• Operating Temperature: It operates within a temperature range of -20°C to 60°C, making it suitable for a wide variety of industrial environments.
• Response Time: The Schneider ASB814108 responds quickly, providing real-time output control for demanding automation tasks.

Applications of the Schneider ASB814108

The Schneider ASB814108 Output Module is perfect for controlling a variety of industrial devices such as motors, actuators, and valves. It is commonly used in manufacturing, process control, and other industrial systems. The module’s flexibility makes it an excellent choice for applications requiring reliable and efficient output control.

Why Choose the Schneider ASB814108?

• 8 Flexible Output Points: The Schneider ASB814108 offers 8 output points that can be configured as NO or NC, providing versatile control options for various devices.
• High Current Capacity: The module supports up to 5 AMP at 30 VDC and 4 AMP at 230 VAC, making it capable of handling high-power devices.
• Space-Saving Design: Thanks to its compact size, this module fits easily into tight spaces, optimizing the layout of your control panel.
• Dual Voltage Support: Whether operating at 30 VDC or 230 VAC, the Schneider ASB814108 can accommodate diverse power needs, providing flexibility for different system configurations.
• Reliable and Durable: With a wide operating temperature range and quick response time, the Schneider ASB814108 ensures dependable performance even in harsh conditions.

Specifications

The Schneider ASB814108 Output Module is an essential component for controlling and automating industrial systems. With its flexible output points, high power handling, and compact design, it delivers reliable performance across a variety of applications.
