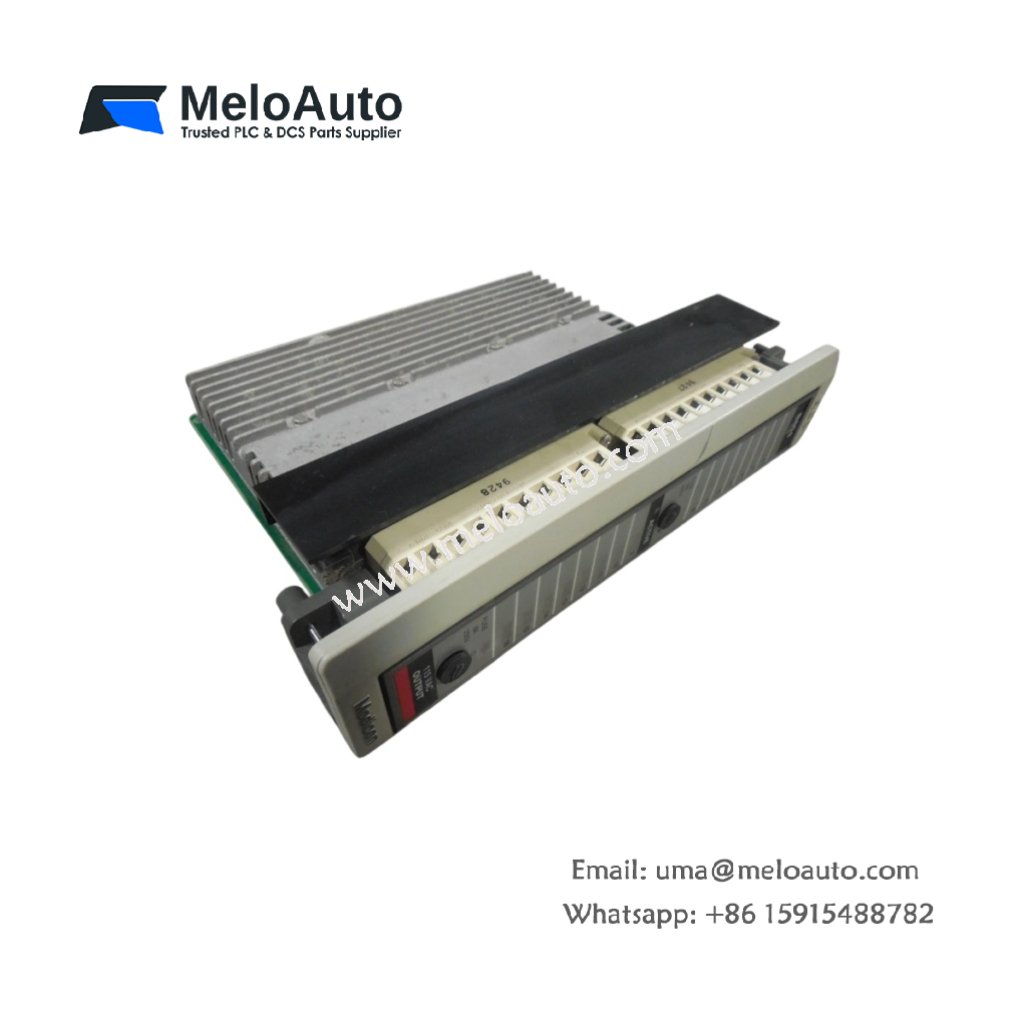

Schneider ASB804116 Output Module

Overview

The Schneider ASB804116 Output Module delivers reliable switching control for industrial automation systems. It integrates with RMS-TSG-TZ-C series PLC racks, enabling flexible process automation.

Key Features

Provides 16 discrete output channels for precise industrial device control.
Operates at 230 VAC, 50/60 Hz, supporting a wide range of standard industrial equipment.
Compact design fits easily into PLC racks, simplifying installation and maintenance.
Compatible with RMS-TSG-TZ-C series PLC modules for scalable automation solutions.
Supports modular deployment in manufacturing, processing, and assembly line applications.

Technical Specifications

Parameter	Details
Manufacturer	Schneider Electric
Model	ASB804116
Series	RMS-TSG-TZ-C
Category	Output Module
Number of Points	16
Output Type	Discrete Relay
Voltage Rating	230 VAC
Frequency	50/60 Hz
Load Current per Point	0.25 A
Dimensions (HxWxD)	6.0 x 3.2 x 1.8 in (152 x 82 x 46 mm)
Weight	0.55 lb (0.25 kg)
Mounting Type	DIN rail / PLC slot
Operating Temperature	0°C to 60°C
Protection Class	IP20

Applications

Schneider ASB804116 is ideal for controlling industrial devices in automation systems:

Driving relays, actuators, and solenoids with discrete outputs.
Integrating into RMS-TSG-TZ-C series PLC racks for modular process control.
Supporting manufacturing, assembly line, and industrial automation applications.

Advantages

Ensures reliable 16-point discrete output with standard industrial voltage and frequency.
Simplifies installation using compact DIN rail-mountable design.
Provides safe and stable operation with IP20 protection in industrial environments.
