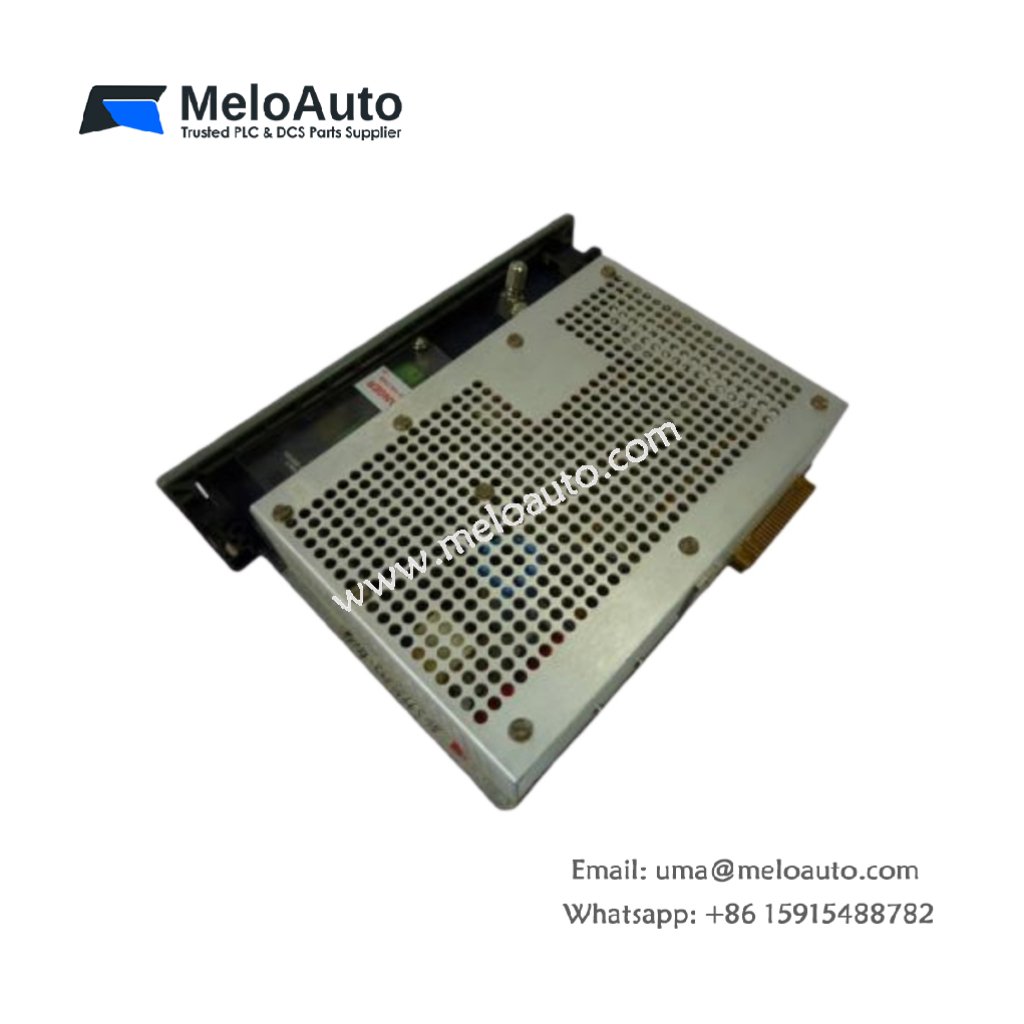

Schneider AS-P890-000 Remote I/O Processor

The Schneider AS-P890-000 Remote I/O Processor provides a reliable and efficient solution for integrating the 984 PC with 800 Series I/O modules. This processor is designed to offer seamless power distribution, high-quality communication, and compatibility with various industrial systems. It enables smooth data exchange between remote I/O systems, ensuring robust performance in complex automation applications.

Key Features of the Schneider AS-P890-000

Integrated Power Supply: The AS-P890-000 features an integrated power supply that delivers 3 amps of power directly to the adjacent 800 Series I/O modules. This ensures consistent and reliable operation.
Dual Communication Ports: With two half-duplex ASCII ports, the processor supports flexible communication options, allowing for easy integration into diverse control systems.
Full Compatibility: The processor is fully compatible with all 800 Series I/O modules, making it ideal for various industrial applications.
Coaxial Communication Pathway: The processor uses coaxial cabling to establish a stable and high-quality communication link between itself and the RIO Head, optimizing data transfer reliability.
Mounting Flexibility: You can mount the AS-P890-000 directly into a 19-inch or 27-inch 800 Series I/O housing (H819/H827-209), providing a versatile installation option for different system configurations.

Technical Specifications

Feature	Specification
Power Supply	Integrated, provides 3 amps
Communication Ports	2 Half-duplex ASCII ports
Compatibility	Fully compatible with 800 Series I/O modules
Mounting	Mounts in 19-inch or 27-inch I/O housing (H819/H827-209)
Communication Medium	Coaxial cabling for communication with RIO Head
I/O Module Connection	Direct connection through housing backplane
Dimensions (Mounting Housing)	19-inch or 27-inch I/O housing (H819/H827-209)
Power Output	3 amps, supplies adjacent 800 Series I/O modules
Product Weight	1.10 lb (0.5 kg)

Application and Usage

The Schneider AS-P890-000 processor is a vital component for integrating 800 Series I/O modules with a 984 PC. Its robust power supply and dual communication ports streamline the operation of remote I/O systems. As it ensures compatibility with all 800 Series modules, this processor is an excellent choice for industrial control systems. Furthermore, its easy-to-mount design and reliable coaxial communication path make it a flexible and dependable solution for complex automation projects.
