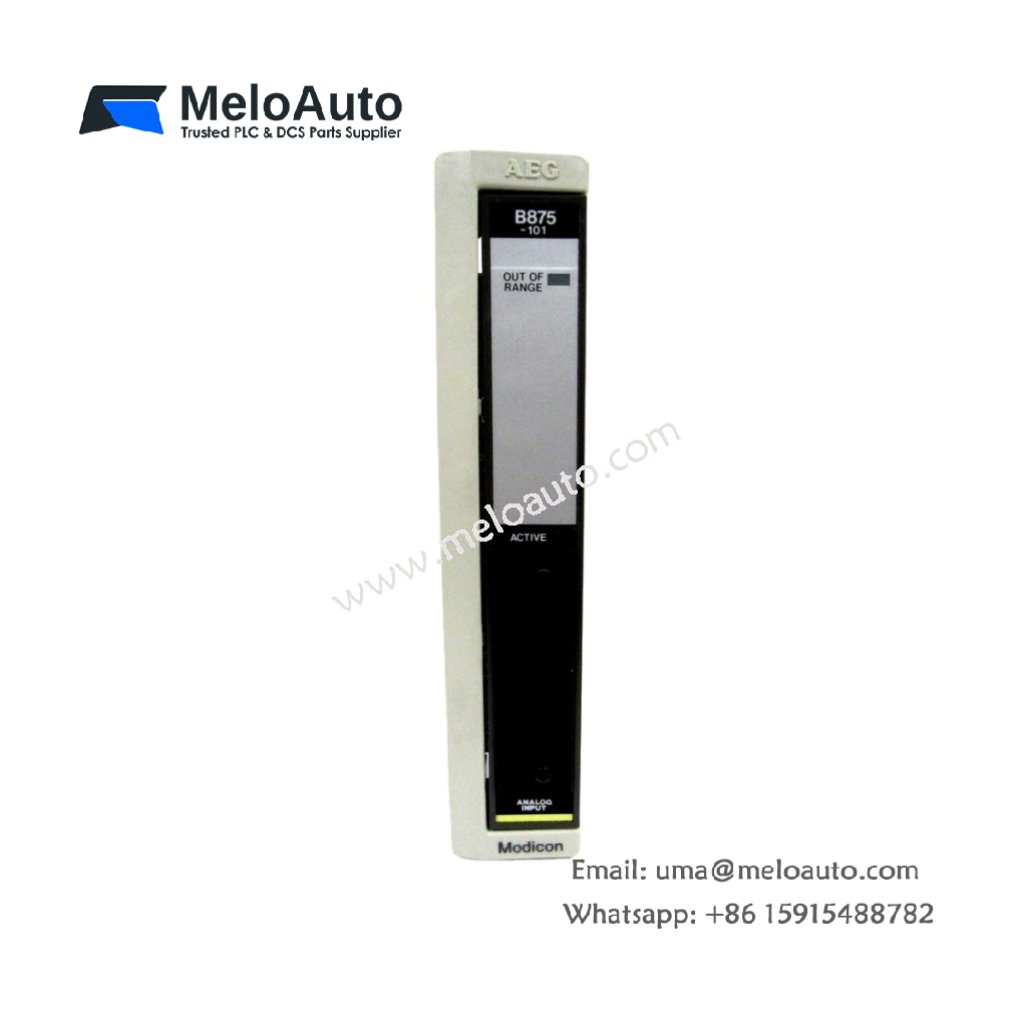

Schneider AS-B875-101 Analog Input Module

The Schneider AS-B875-101 is an advanced analog input module designed to effectively handle analog signals in various industrial environments. Supporting 8 analog input channels, this module ensures high compatibility with 984 PLCs. With a 12-bit resolution, it guarantees precise data acquisition, providing accurate control and monitoring for industrial processes.

Key Features of the Schneider AS-B875-101

8 Analog Input Channels: Manage multiple analog signals simultaneously for versatile applications.
High-Precision 12-Bit Resolution: Achieve precise data capture, ensuring accurate process control.
Voltage and Current Measurement: Measure voltages from 1 to 5 VDC and currents from 4 to 20 mA.
LED Status Indicators: Quickly assess module status with real-time visual feedback.
Lightweight Design: Weighing only 3.13 lbs (1.42 kg), it’s easy to integrate into existing systems.
Corrosion-Free Operation: Perform reliably in environments free from corrosive gases, enhancing durability.

Technical Specifications for Schneider AS-B875-101

Feature	Specification
Manufacturer	Schneider Electric
Product Type	Analog Input Module
Product Line	I/O Modules
Part Number	AS-B875-101
Weight	3.13 lbs (1.42 kg)
Number of Inputs	8 Analog Inputs
Resolution	12-bit
Measurement Voltage Range	1 to 5 VDC
Measurement Current Range	4 to 20 mA
Data Production Range	0 to 4096 or 4095 to 8192
Compatibility	984 PLCs
Status Indication	LEDs
Operating Environment	Free from corrosive gases

Product Description

The Schneider AS-B875-101 analog input module handles analog signals efficiently, making it an excellent choice for industrial applications. This module features 8 input channels, ideal for processing multiple signals at once, and weighs just 3.13 lbs (1.42 kg), allowing for seamless integration with existing systems. Its compatibility with 984 PLCs provides flexibility for established system setups.

With a 12-bit resolution, this module captures detailed analog data, ensuring accurate monitoring and control. It accommodates voltage readings from 1 to 5 VDC and current measurements from 4 to 20 mA, making it suitable for various sensors and equipment. Additionally, the data production range spans from 0 to 4096 or 4095 to 8192, providing versatile application possibilities.

The LED status indicators make it easy to check operational conditions at a glance, and the module performs optimally in environments free from corrosive gases, ensuring long-term reliability and performance.
