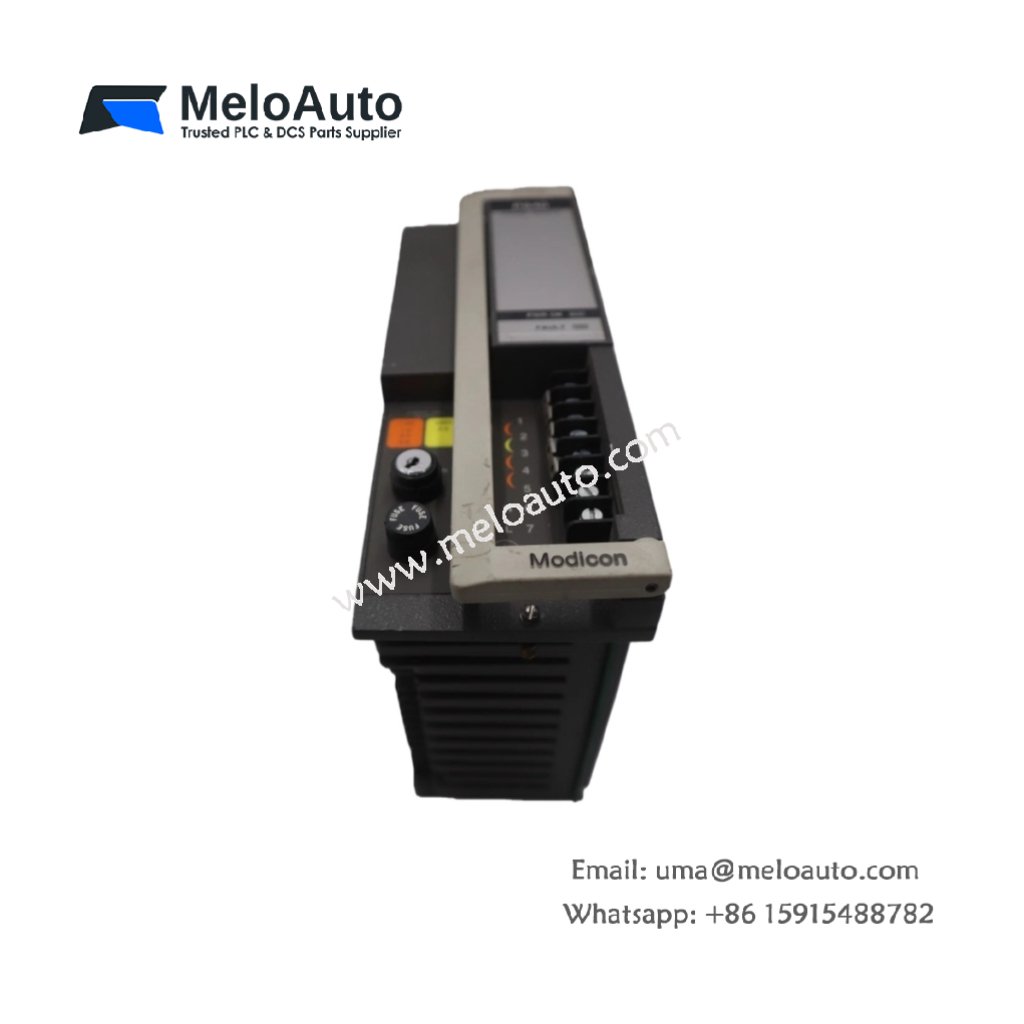

Schneider AS-B840-000 Relay Output Module

The Schneider AS-B840-000 is a high-performance relay output module, designed to seamlessly integrate into various automation systems. This module offers robust control over external devices by providing reliable relay-based outputs. As part of Schneider Electric’s industrial automation solutions, the AS-B840-000 guarantees dependable performance in diverse and demanding environments.

Key Features of the Schneider AS-B840-000

Reliable Relay Output: The AS-B840-000 utilizes relay outputs for controlling external equipment, ensuring reliable operation across numerous industrial processes. In addition, it supports various load types, which significantly enhances its versatility.
Space-Efficient Design: The module is compact, making it an ideal solution for systems with limited space. Therefore, it offers flexibility while maintaining a small footprint.
High-Performance Switching: Each output provides reliable switching capabilities, handling up to 5 A with resistive loads. Consequently, users can depend on the module to perform well even under challenging conditions.
Wide Operating Range: With an operating temperature range of -20°C to 60°C, the AS-B840-000 ensures stable performance in both indoor and outdoor environments.

Technical Specifications

Feature	Specification
Model Number	AS-B840-000
Manufacturer	Schneider Electric
Module Type	Relay Output Module
Number of Outputs	8 Outputs
Contact Configuration	SPDT (Single Pole Double Throw)
Nominal Load Voltage	24V DC / 120V AC
Max Load Current per Output	5 A (Resistive Load)
Relay Contact Rating	250V AC, 5 A (Resistive Load)
Power Supply Requirements	24 VDC ± 4%
Operating Temperature Range	-20°C to 60°C
Dimensions	100 mm x 100 mm x 50 mm
Weight	0.5 kg (1.1 lbs)
Mounting Type	DIN Rail

Advantages of the Schneider AS-B840-000

The Schneider AS-B840-000 relay output module excels in offering precise control over external devices. With its highly efficient relay contacts, it can manage a variety of load types. Additionally, the module’s compact design ensures it can fit into tight spaces, making it a great choice for space-constrained environments.

Furthermore, this module provides reliable performance even under heavy current switching. Its minimal footprint, combined with its high current-handling capabilities, makes it an excellent solution for industrial applications. With an operating temperature range of -20°C to 60°C, it performs optimally in a variety of conditions, both indoors and outdoors.
