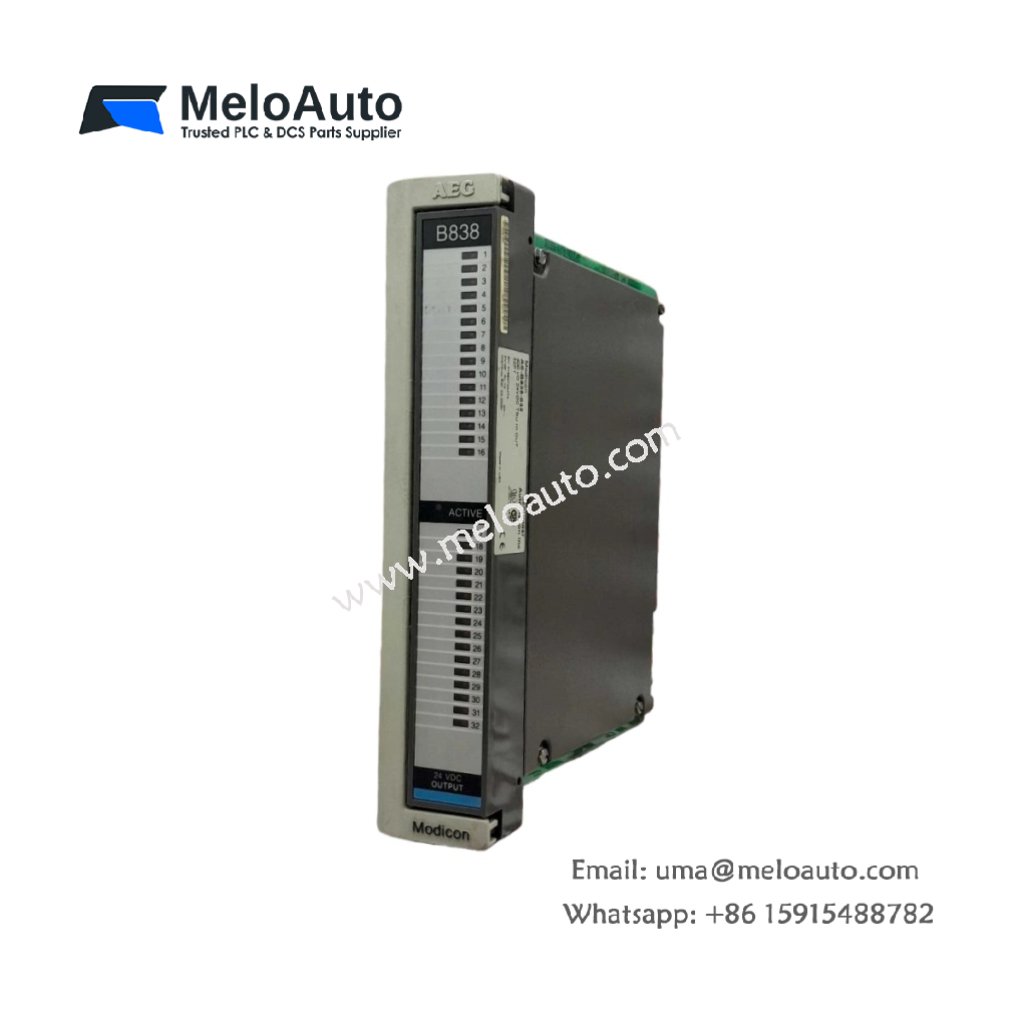

Schneider AS-B838-032 800 Series Output Module

The Schneider AS-B838-032 is an advanced 800 Series output module designed to deliver efficient and reliable performance in control systems. This module operates within a specified voltage range and features rapid state transitions. It supports multiple output capabilities, making it versatile for various industrial automation applications.

Key Features of the Schneider AS-B838-032

Efficient Operation: The AS-B838-032 operates within a voltage range of 20 to 28 VDC, ensuring stable performance in diverse environments.
Fast Response Time: It provides an impressive maximum response time of just 1 millisecond for both OFF to ON and ON to OFF transitions, ensuring quick system adjustments.
Flexible Output Configuration: With four groups, each containing eight outputs, this module offers 32 outputs in total, allowing versatile connectivity options for complex automation setups.
Minimal Leakage Current: The module exhibits a typical leakage current of just 1 mA when operating at 30 VDC, ensuring efficient power management.
Wide Operating Temperature Range: Designed to perform reliably in environments with temperatures ranging from 0°C to 60°C.

Technical Specifications

Feature	Specification
Model Number	AS-B838-032
Manufacturer	Schneider Electric
Product Line	800 Series
Weight	0.91 kg (2.00 lbs)
Space Required	1 Slot
External Power Supply	24 VDC ± 4V, 125 mA
Power Required	5 V, 160 mA; 4.3 V, 1 mA; -5 V, 0 mA
Max. Response Time	1 ms (OFF to ON, ON to OFF transitions)
Operating Voltage	20 to 28 VDC
Number of Output Groups	4
Outputs per Group	8
Leakage Current	1 mA (typical) at 30 VDC
Operating Temperature	0°C to 60°C

Advantages of the Schneider AS-B838-032

The Schneider AS-B838-032 module is built for high efficiency and precision in control systems. It boasts a fast response time of just 1 millisecond, making it highly suitable for systems that require quick state transitions. The four groups of eight outputs each provide ample flexibility for diverse automation applications.

Additionally, the module’s minimal leakage current and wide operating temperature range ensure optimal performance in various industrial conditions. Its small footprint allows for easy installation in a single slot, while its reliable power consumption makes it energy-efficient.
