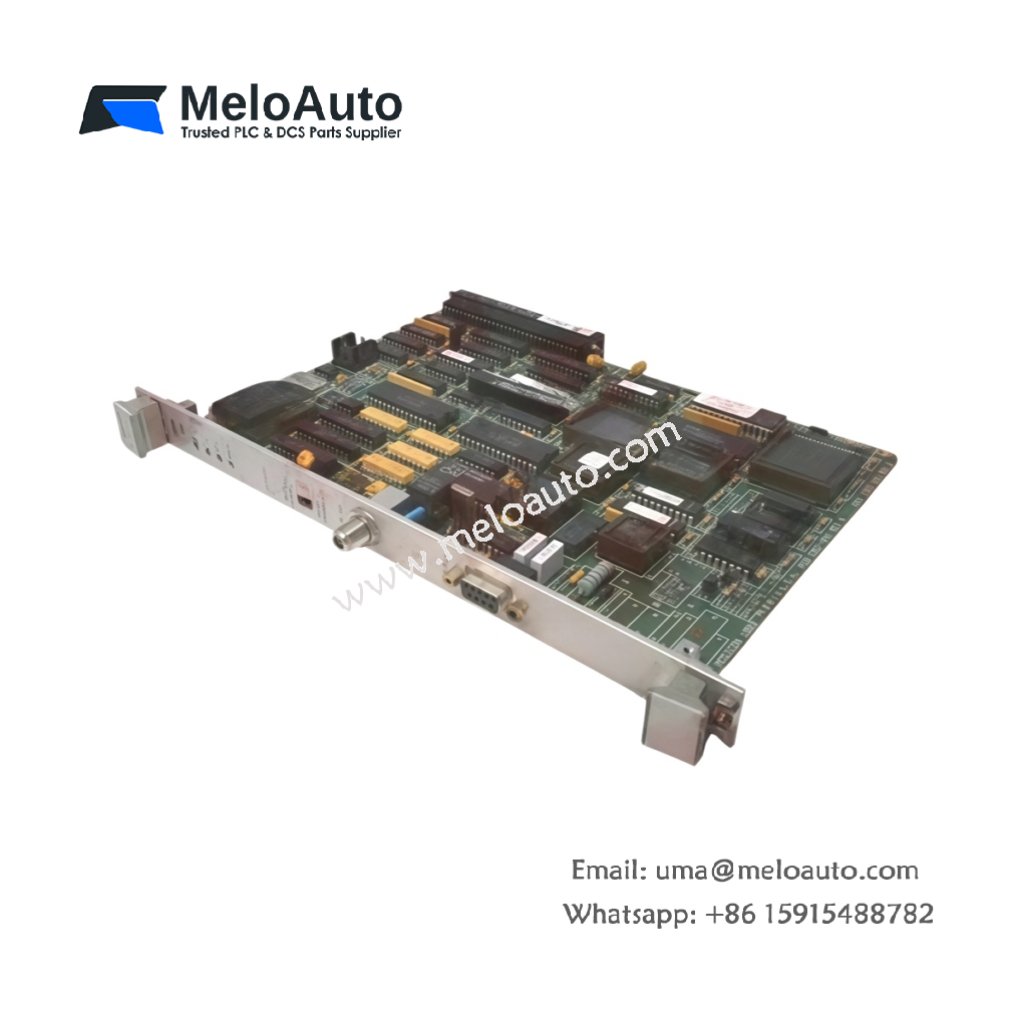

Schneider AM0984VM0 Programmable Controller Board

The AM0984VM0 serves as a programmable controller board for compact automation tasks. This unit executes logic programs and manages I/O operations efficiently. Its rectangular frame measures 118 millimeters in width. The board height reaches 112 millimeters exactly. Depth stays at 85 millimeters. You will find this unit weighs approximately 0.52 kilograms. Therefore, installation requires a standard DIN rail clip mounted securely. One removable terminal block provides power input and basic I/O connections.

Physical Layout and Connectors

The front panel features a 2-line LCD display for diagnostic messages. You will find five push buttons for local configuration access. One RS-232 serial port connects to programming software on a laptop. Three status LEDs indicate run, stop, and error conditions. Four mounting tabs secure the unit to TS35 DIN rails.

Technical Specifications

Parameter	Specification
Board Width	118 mm
Board Height	112 mm
Board Depth	85 mm
Unit Weight	0.52 kg
Processor	16-bit @ 16 MHz
Program Memory	48 KB (ladder logic)
Data Memory	24 KB (retentive)
Scan Time	1.2 ms per 1K instructions
Digital Inputs	8 (24V DC sinking)
Digital Outputs	6 (transistor, 0.5A each)
Communication Port	RS-232 (programming)
Component Total	342 discrete parts
Internal Energy Storage	680 µF capacitor bank
Backup Battery	Lithium (3V, 5 years)
Operating Temperature	0°C to +55°C

Internal Design and Energy Storage

The AM0984VM0 contains exactly 342 discrete components inside. A 680 microfarad capacitor bank filters the main power supply input. This bank holds enough charge for 20 milliseconds after power loss. The 16-bit processor runs at 16 megahertz for reliable execution. A lithium battery retains data memory for up to five years. EEPROM stores the user program without any battery backup required.

Operational Performance

This programmable controller board executes ladder logic from 48KB memory. It scans 1,000 instructions in approximately 1.2 milliseconds. Moreover, the unit includes 8 digital inputs and 6 transistor outputs onboard. You can connect sensors, pushbuttons, and small actuators directly. The LCD display shows real-time system status and diagnostic messages. Five buttons let you navigate menus without a programming computer. Consequently, you achieve compact control for small automation projects. Schneider designed this board for standalone machine applications. Its industrial enclosure meets IP20 protection standards.

In summary, the AM0984VM0 delivers compact yet capable controller performance. Use this board for small conveyors or packaging stations. It reduces system cost with integrated I/O points. Order this programmable controller board for your Schneider automation project.
