Schneider 690MCB00000 Field Wiring Block – 50-Terminal Breakout Module for Motion Control

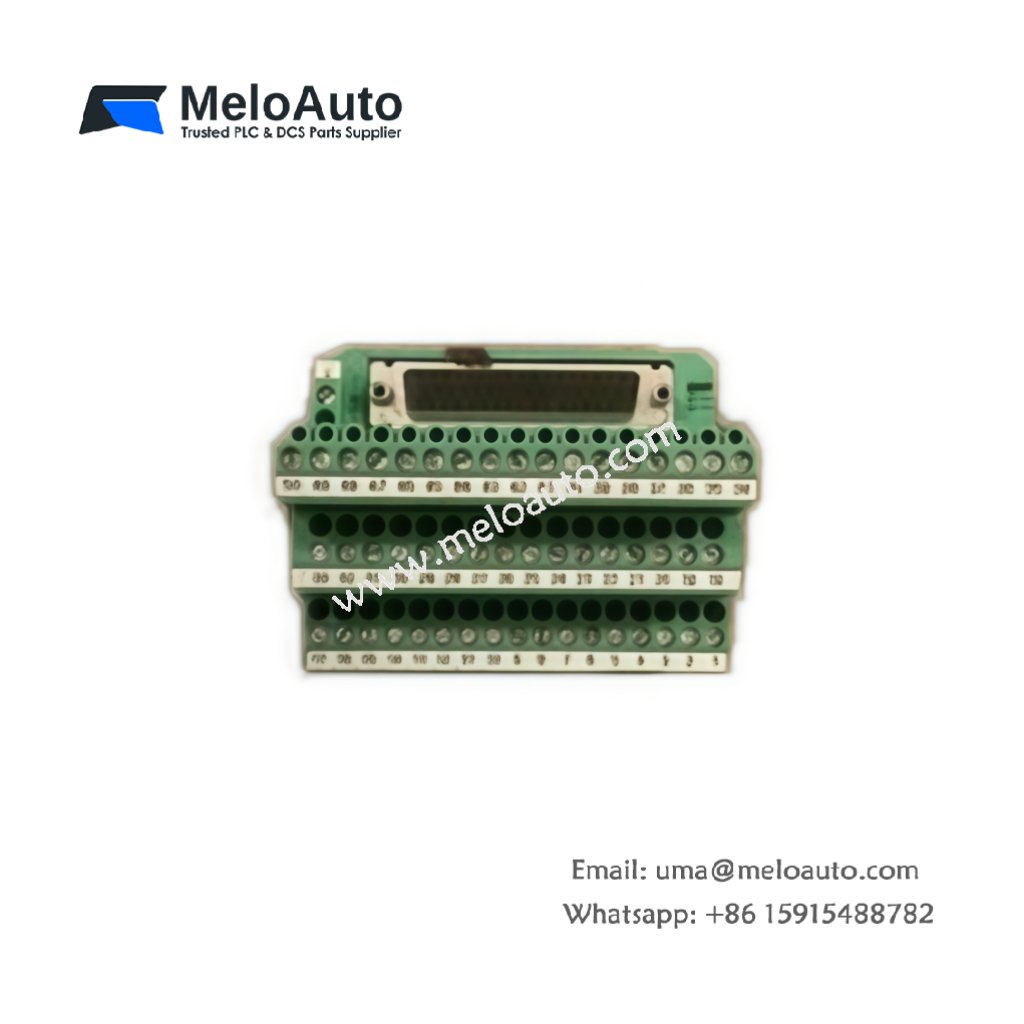

The Schneider 690MCB00000 is a high-performance field wiring block designed for use in motion control applications. This module is specifically built for the Modicon Quantum series, offering seamless integration and reliability. It provides 50 screw terminals and a robust 50-pin male connector, making it ideal for complex control systems. The 690MCB00000 ensures efficient and secure connections in industrial environments, supporting smooth communication between motion control systems and external devices.

Key Features of the Schneider 690MCB00000 Field Wiring Block

The Schneider 690MCB00000 offers essential technical specifications that make it a powerful solution for motion control systems:

• Function: Breakout module designed for motion control systems.
• Number of Screw Terminals: 50 screw terminals for efficient wiring.
• Connector Type: 50-pin male connector for reliable and secure connections.
• Mounting Type: Panel-mounted design ensures easy installation in control panels.
• Compatibility: Fully compatible with Modicon Quantum systems for seamless integration.
• Weight: 1.06 lbs (0.48 kg), providing a lightweight yet sturdy design.
• Dimensions: Compact size for space-efficient installation in control panels.
• Durability: Built with high-quality materials for long-term performance in industrial environments.
• Manufacturer: Schneider Electric
• Series: Modicon Quantum

Applications of the Schneider 690MCB00000 Field Wiring Block

The Schneider 690MCB00000 field wiring block is designed to meet the rigorous demands of motion control systems. It is ideal for systems requiring secure connections between PLCs, motion controllers, and field devices. With its 50 screw terminals, the 690MCB00000 offers flexibility and scalability, allowing for multiple connections in large control systems. Its robust design ensures stable operation in various industrial environments, supporting high-performance motion control applications.

This module’s compatibility with the Modicon Quantum series ensures a smooth and reliable integration, enhancing the overall performance and efficiency of the control system.

Why Choose the Schneider 690MCB00000 Field Wiring Block?

• High Connection Capacity: 50 screw terminals offer ample connections for complex systems.
• Seamless Integration: Designed for compatibility with Modicon Quantum systems.
• Space-Efficient Design: Panel-mounted design ensures easy installation in compact spaces.
• Durability: High-quality construction for long-lasting performance in industrial environments.
• Reliable Performance: Ensures secure and stable connections for motion control applications.

The Schneider 690MCB00000 field wiring block is a reliable and efficient solution for enhancing the connectivity and performance of motion control systems.
