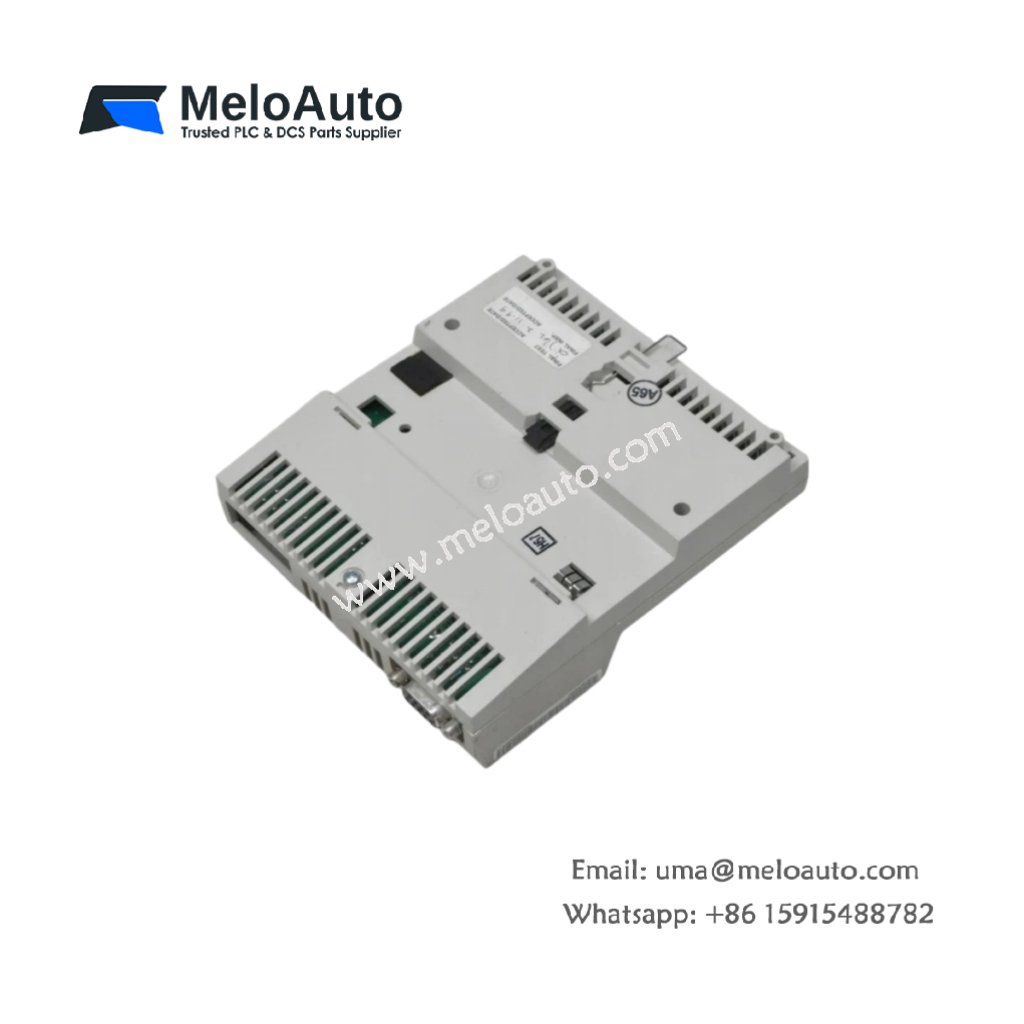

Schneider 170BDM34200 Modicon Momentum Remote I/O Module

Overview of the Schneider 170BDM34200 Modicon Momentum Remote I/O Module

The Schneider 170BDM34200 serves as a highly efficient remote I/O module specifically designed for the Modicon Momentum system. It provides 16 inputs and 16 outputs, enabling smooth signal processing and control. With its solid-state construction, the 170BDM34200 ensures reliable performance for industrial applications.

This module is perfect for use in systems requiring fast and secure data transfer. Equipped with Modbus Plus communication protocol, it allows easy integration and effective operation in a variety of automation processes. The compact design makes it ideal for space-constrained environments, while its flexibility and durability meet the demands of modern industrial applications.

Key Technical Specifications

Here’s a breakdown of the technical specifications for the Schneider 170BDM34200 Modicon Momentum Remote I/O Module:

Specification	Details
Model Number	170BDM34200
Product Type	Remote I/O Module
Series	Modicon Momentum
Dimensions (W x H x D)	120 mm x 85 mm x 65 mm
Weight	0.69 lbs (0.31 kg)
Inputs/Outputs	16 Inputs / 16 Outputs
Voltage Rating	24 V DC ± 10%
Power Consumption	2 W
Protection Class	IP20
Mounting Type	DIN Rail Mount
Communication Protocol	Modbus Plus
Contact Type	Contact Blocks
Connector Type	Screw Terminal
Operating Temperature Range	0°C to 60°C

Features of the 170BDM34200 Remote I/O Module

High I/O Capacity: The 170BDM34200 module features 16 discrete inputs and 16 outputs, allowing it to handle multiple signal channels. As a result, you can integrate it easily into your system for efficient control.
Solid-State Reliability: Built with solid-state components, this module guarantees fast, reliable, and efficient performance in even the most demanding environments.
Compact and Lightweight: At 120 mm x 85 mm x 65 mm and weighing just 0.69 lbs (0.31 kg), the 170BDM34200 is designed for easy installation, even in confined spaces.
Energy-Efficient: This module uses only 2 W of power, minimizing energy consumption while providing reliable functionality.
Seamless Communication: The Modbus Plus communication protocol allows the 170BDM34200 to exchange data quickly and securely. Its RS232 and RS485 ports ensure seamless communication with other devices.
Flexible Mounting: Thanks to its DIN Rail mounting, you can install this module easily and securely, ensuring stability and ease of access in industrial environments.
Protection for Harsh Conditions: Rated IP20, the 170BDM34200 offers protection against dust and moisture, ensuring durability in industrial settings.

Applications of the 170BDM34200 Remote I/O Module

The Schneider 170BDM34200 Modicon Momentum Remote I/O Module serves a wide range of applications:

Manufacturing Automation: Use it to control and monitor machines and production lines, ensuring efficiency and reducing downtime.
Energy Management: It helps in optimizing power distribution systems, ensuring effective energy management in industrial settings.
Building Automation: The module can control various systems such as HVAC, lighting, and security, improving operational efficiency in building management.

Why Choose the 170BDM34200?

The Schneider 170BDM34200 delivers excellent performance with its high I/O capacity, energy efficiency, and easy integration into the Modicon Momentum system. Its compact size and solid-state construction make it an ideal choice for industrial automation systems that require reliable, high-speed data processing. With its flexibility, ease of installation, and low power consumption, it ensures long-lasting, stable operation, even in harsh environments.
