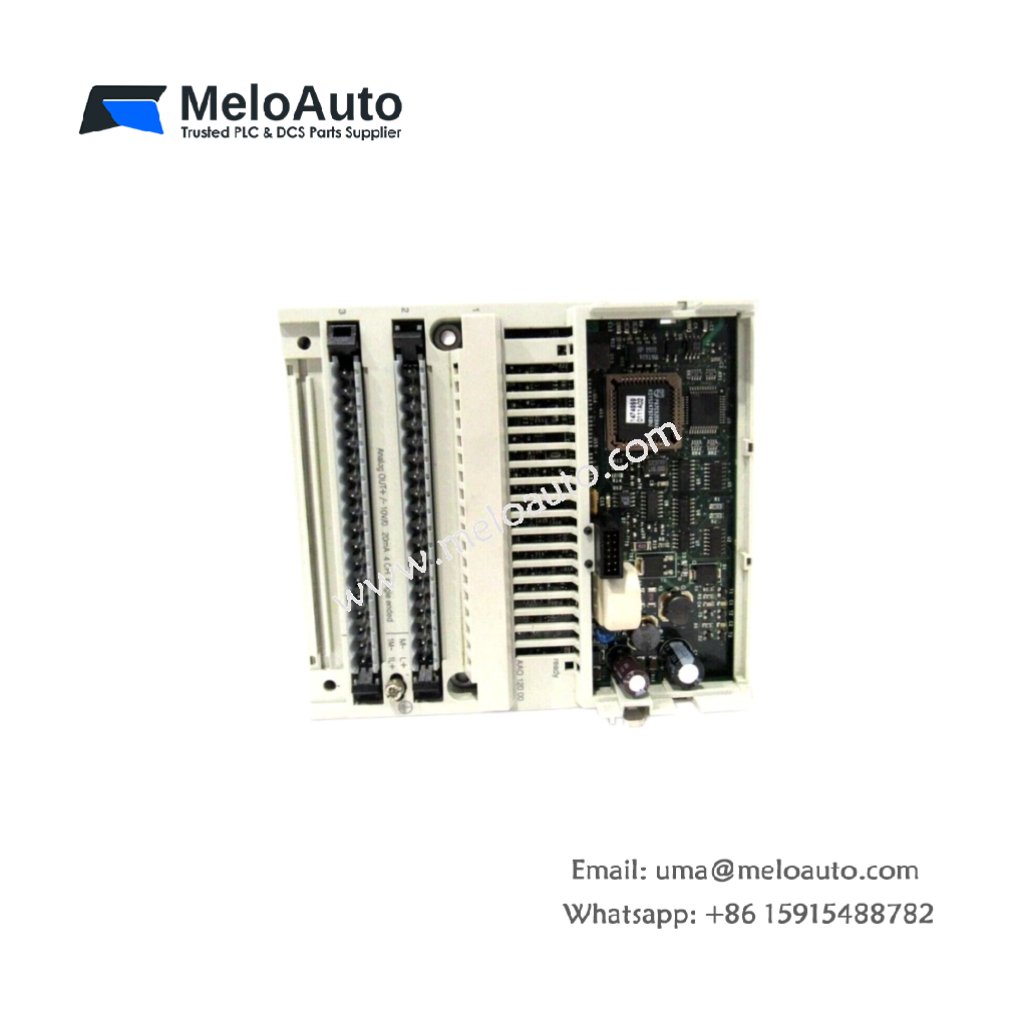

Schneider 170AAO12000 Analogue Output Base

The Schneider 170AAO12000 is an advanced analogue output base designed for the Modicon Momentum automation platform. This highly reliable module delivers precise control for your automation needs. With its versatile analogue output range and advanced features, it ensures seamless integration and superior performance in industrial applications.

Key Features and Specifications

Model: Schneider 170AAO12000
Type: Analogue Output Base
Manufacturer: Schneider Electric
Product Line: Modicon Momentum
Part Number: 170AAO12000
Weight: 0.6 kg (approx.)
Temperature Drift: ±10 % oFS/°C (±10 V at 60°C), 30 % oFS/°C (0…20 mA at 60°C)
Protection: Reverse polarity protection, internal short-circuit protection, CE marked

Detailed Technical Specifications

Parameter	Value
Output Number	Full 16 bits signed
Data Format	+/-10 V 12 bits + sign, 0…20 mA 12 bits + sign
Analogue Output Range	+/-10 V, 0…20 mA
Load Capacitance	<1 pF
Absolute Accuracy Error	+/-0.2% of full scale at 25 °C
Temperature Drift	+/-0.25 % full scale at 60 °C (±10 V), +/-0.4% full scale at 60°C (0…20 mA)
Update Time	<2 ms
Fail State	Hold, Reset to full scale, Reset to zero
Isolation Between Channels & Ground	500 V AC for 1 minute
Power Dissipation	≤8.5 W
Output Short-Circuit Protection	Internal 2 A slow-blow fuse
External Power Requirement	24 V DC
Permissible Common Mode Voltage	+/-30 V DC
Marking	CE
Local Signalling	4 LEDs for channel status
Current Consumption	150 mA for 24 V DC actuator, 530 mA for 24 V DC base

Outstanding Performance and Flexibility

The Schneider 170AAO12000 offers precise control with its 16-bit analogue outputs and +/-10 V and 0…20 mA output ranges. This module ensures that your industrial systems run smoothly, providing high accuracy and quick response times. Its absolute accuracy error is within ±0.2% of full scale at 25°C and ±0.25% at 60°C, ensuring the best performance in varied environments.

Efficient Power Management and Protection

This module is designed to operate efficiently with low power dissipation (≤8.5 W), making it ideal for energy-conscious applications. It includes reverse polarity protection and short-circuit protection, ensuring system safety even in challenging operating conditions.

Advanced Features for Industrial Automation

With CE marking, the Schneider 170AAO12000 complies with the highest standards for industrial products. The 4 LEDs provide real-time status of the channels, making troubleshooting and monitoring straightforward. Additionally, the 500 V isolation between channels and ground provides strong protection against potential electrical faults.

Seamless Integration with Modicon Momentum

The Schneider 170AAO12000 is fully compatible with the Modicon Momentum automation platform, ensuring that it integrates seamlessly into your existing industrial control systems. Whether you need to monitor machine operations or control process variables, this module offers the reliability and performance required for demanding applications.
