Schneider 140XCP51000 Dummy Module

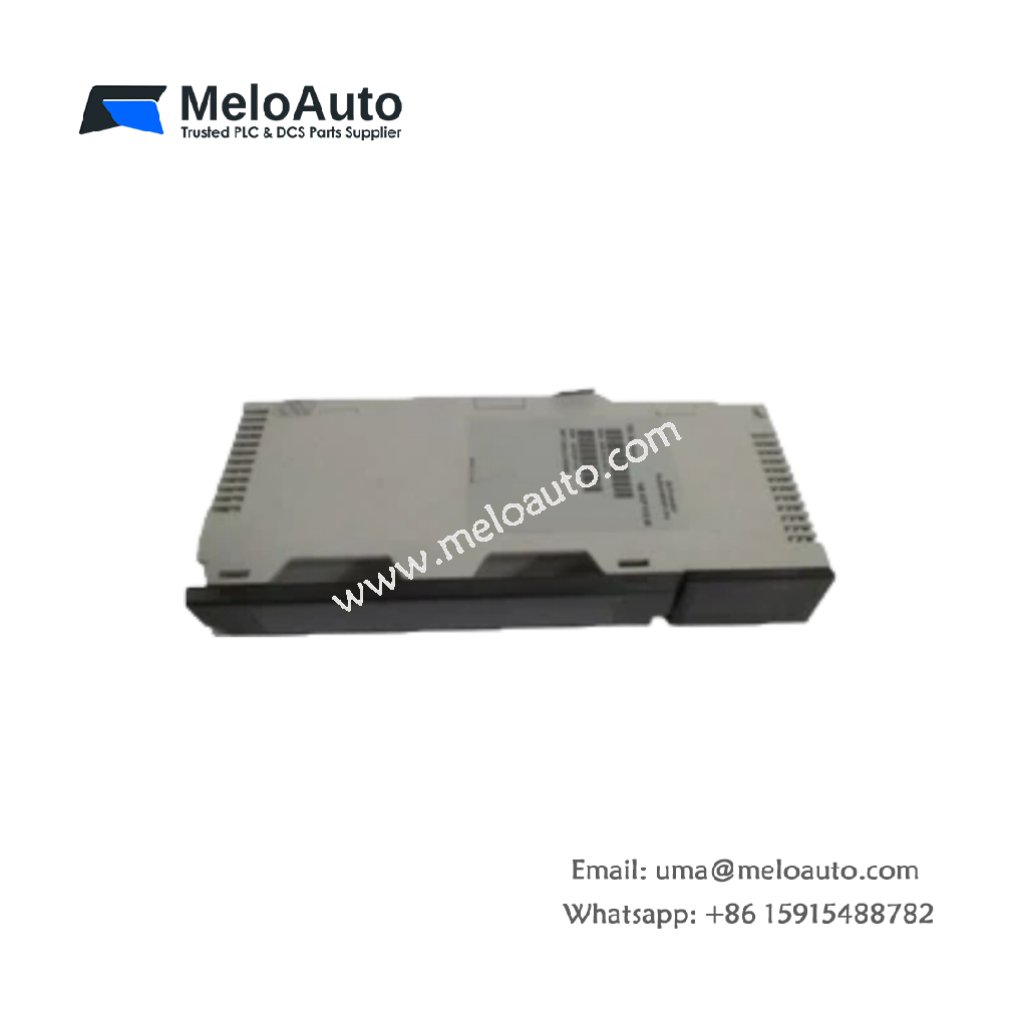

Overview of the Schneider 140XCP51000 Dummy Module

The Schneider 140XCP51000 is a crucial component for the Modicon Quantum automation platform. This dummy module is designed specifically for use in unused discrete I/O slots. By installing the 140XCP51000, engineers can maintain the system’s mechanical integrity during expansion or maintenance. It effectively prevents dust ingress, blocks open connectors, and ensures proper airflow within the system.

This module is essential for systems undergoing phased expansions or temporary module removals. It guarantees the system remains protected and operational until the next phase of development or maintenance.

Key Features of the Schneider 140XCP51000 Dummy Module

Maintains Mechanical Integrity: The 140XCP51000 secures empty I/O slots, preventing potential damage or misalignment.
Protects Connectors: It effectively blocks dust and debris from entering exposed connectors, ensuring system longevity.
Improves Airflow: Helps maintain airflow throughout the system, preventing overheating in unused slots.
Compatible with Modicon Quantum: The module is designed specifically for the Modicon Quantum automation platform, ensuring seamless integration.
Temporary Module Removal: Ideal for situations where I/O modules need to be removed temporarily during system maintenance or upgrades.

Technical Specifications of the Schneider 140XCP51000 Dummy Module

Parameter	Specification
Model Number	140XCP51000
Product Type	Dummy Module with Cover
Accessory Type	Mechanical Filler Module
Platform Compatibility	Modicon Quantum Series
Intended Use	Placeholder for Discrete I/O Slots
Accessory Destination	Quantum Discrete I/O Modules
Environmental Compliance	RoHS Compliant, Mercury-Free, Green Premium™ Certified
Material	High-Durability Plastic
Weight	0.3 kg
Dimensions (L x W x H)	100 x 50 x 20 mm
Color	Black
Operating Temperature Range	-20°C to +70°C
Humidity Range	5% to 95% Non-Condensing
Packaging	Standard Box
GTIN	3595861135284
Returnability	No

Applications of the Schneider 140XCP51000 Dummy Module

The Schneider 140XCP51000 Dummy Module is ideal for:

System Expansions: Keeps the system intact when expanding the Modicon Quantum platform.
Maintenance: Serves as a temporary placeholder when modules need to be removed for servicing.
Industrial Automation: Ensures the system remains protected in industrial automation environments, even when I/O modules are temporarily unavailable.
