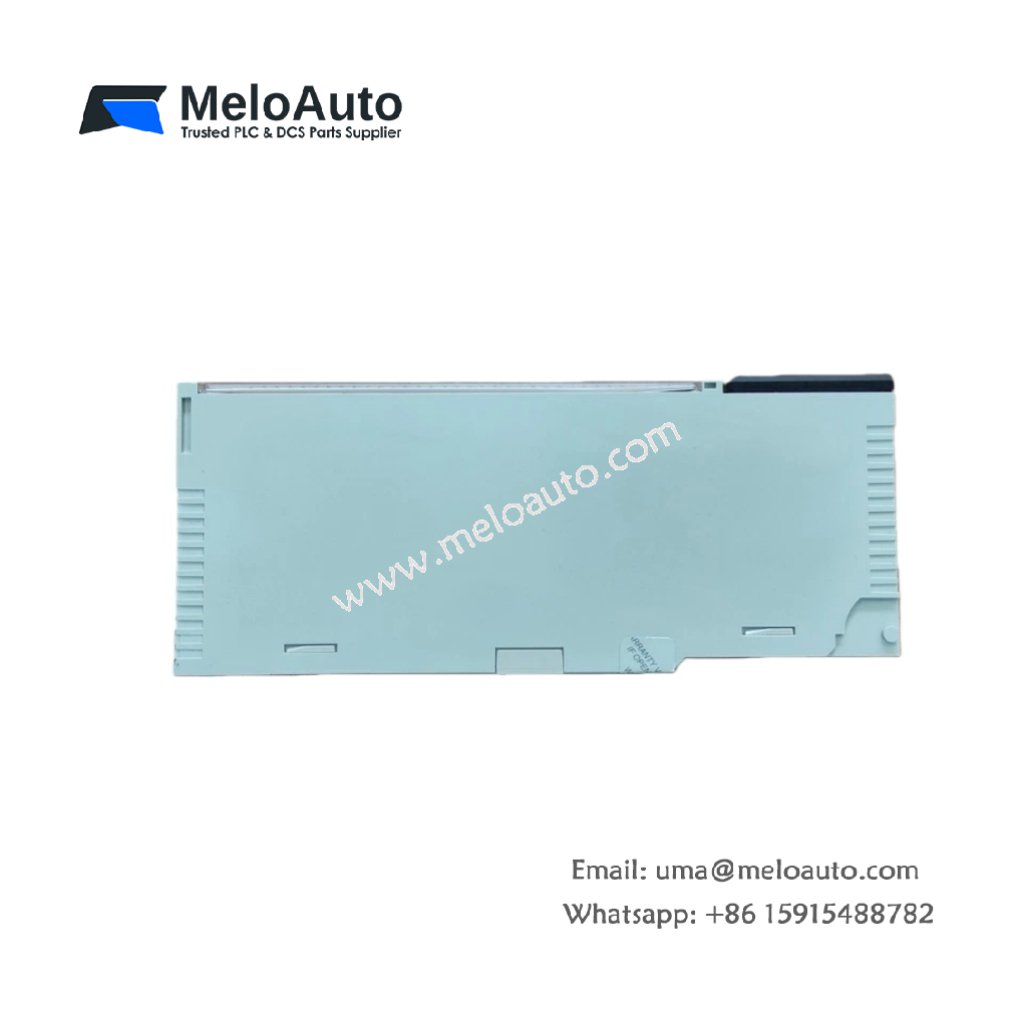

Schneider 140NOE77111 Ethernet Network Module

Overview of the 140NOE77111

The Schneider 140NOE77111 is an advanced Ethernet network module designed for the Modicon Quantum series, making it an ideal choice for automation applications. This module operates using the Ethernet Modbus TCP/IP communication protocol, ensuring seamless integration within industrial networks. With its transmission speeds of 10 Mbit/s or 100 Mbit/s, the 140NOE77111 caters to a wide range of data throughput needs, ensuring reliable and efficient communication.

As part of the Modicon Quantum series, this Ethernet module is built for high-performance industrial automation. It offers features such as I/O scanning, ModBus TCP messaging, and FDR server support, making it a versatile solution for modern industrial applications. Its Transparent Ready Concept ensures easy integration into existing systems, helping users optimize their operations without additional complexity.

Key Features and Specifications:

• Brand: Schneider Electric
• Model Number: 140NOE77111
• Product Line: Modicon Quantum
• Module Type: Ethernet Network Module
• Communication Protocol: Ethernet Modbus TCP/IP
• Transmission Rate: 10 or 100 Mbit/s
• Operating Temperature Range: 0°C to 60°C
• Storage Temperature Range: -40°C to 85°C
• Current Consumption: 750 mA at 5V DC

Technical Specifications:

Description:

The 140NOE77111 module is a critical component of the Modicon Quantum series, providing seamless communication within industrial automation environments. It supports both 10 Mbit/s and 100 Mbit/s transmission rates, ensuring reliable data flow across different network setups. This module is designed to operate efficiently within a wide temperature range, from 0°C to 60°C during operation, and can withstand storage temperatures as low as -40°C to as high as 85°C.

Equipped with a Class C30 web server, the 140NOE77111 enhances accessibility, allowing users to manage and control the module remotely with ease. Additionally, it supports I/O scanning for real-time data monitoring and ModBus TCP messaging for reliable data exchange. The module also includes FDR server support for efficient fault detection and recovery, ensuring smooth system operation.

To meet the needs of modern industrial networks, the 140NOE77111 provides SNMP network management for improved monitoring and control. It also supports global data and bandwidth management, helping users optimize network performance and ensure efficient data transfer across connected devices.

The 140NOE77111 is an energy-efficient module, consuming 750 mA at 5V DC, making it ideal for energy-conscious automation systems. This module is fully compatible with the Modicon Quantum series and can be integrated into existing systems without extensive configuration, making it a reliable solution for both new and legacy applications.

Features and Benefits:

• Flexible Communication: Supports both 10 Mbit/s and 100 Mbit/s transmission speeds for versatile network compatibility.
• Wide Temperature Range: Operates between 0°C to 60°C, suitable for industrial environments.
• Advanced Network Management: Includes SNMP network management and bandwidth management for optimized performance.
• Energy Efficient: Consumes 750 mA at 5V DC, ensuring low power consumption.
• Seamless Integration: Supports the Transparent Ready Concept for easy installation in existing systems.
• Web Server Support: Class C30 web server for remote monitoring and control.
