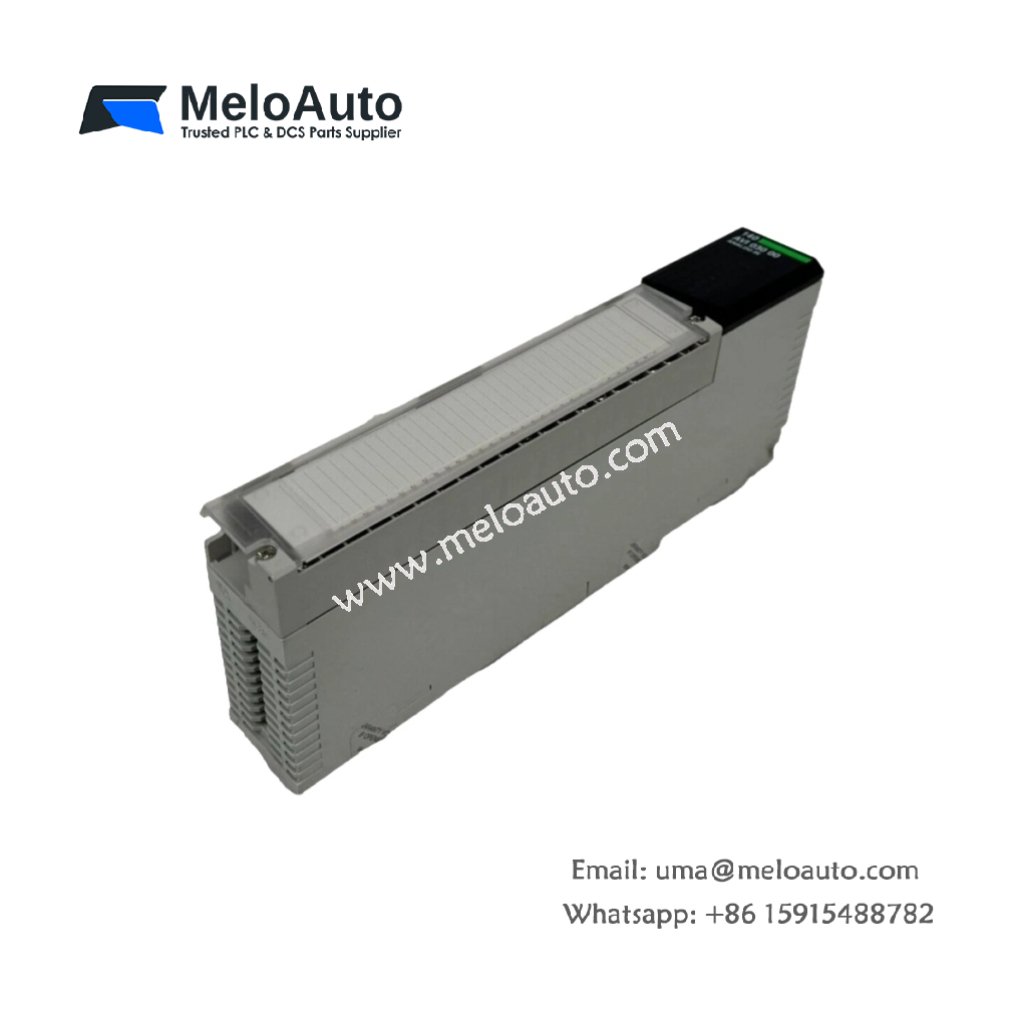

Schneider 140EIA92100C AS-Interface Master Module

The Schneider 140EIA92100C is an advanced AS-Interface Master Module from Schneider Electric’s Modicon series. This module facilitates seamless integration with your AS-Interface network, providing reliable communication between sensors, actuators, and the control system. With its flexible features and robust design, the 140EIA92100C is ideal for both small and large industrial automation applications.

Key Features and Specifications

• Model Number: Schneider 140EIA92100C
• Product Type: AS-Interface Master Module
• Product Line: Modicon
• Part Number: 140EIA92100C
• Weight: 1.50 lbs (0.68 kg)
• Maximum Cycle Time: 5 ms
• Discrete Input Points: 124
• Discrete Output Points: 124
• Maximum Server Devices: 31 Devices
• Operating Temperature Range: 0°C to 60°C
• Storage Temperature Range: -40°C to 85°C
• Power Supply: 30V DC
• Mounting Type: Rack Mountable
• Transmission Rate: 167 kbit/s
• IP Rating: IP20
• Conformance: CE Marked

Product Overview

The Schneider 140EIA92100C is a powerful AS-Interface Master Module that ensures smooth operation within your industrial automation system. With 124 discrete input points and 124 discrete output points, it offers the necessary connectivity for various devices in your system. It supports up to 31 server devices, making it perfect for medium-to-large-scale systems.

Operating in 0°C to 60°C and supporting -40°C to 85°C storage temperatures, this module is durable enough for most industrial environments. Additionally, it can handle a transmission rate of 167 kbit/s, enabling high-speed communication.

This module features an IP20 protection rating, ensuring protection against solid objects larger than 12mm, but is not waterproof. It is powered by a 30V DC supply and is designed to be mounted easily on a rack.

Applications

The Schneider 140EIA92100C AS-Interface Master Module is ideal for applications requiring reliable, real-time communication between automation components, such as sensors and actuators. It’s used across industries like automated manufacturing, machine control, and process automation. With its ability to manage multiple I/O points and server devices, it ensures smooth data exchange and system reliability.

Product Details

• Brand: Schneider Electric
• Model: 140EIA92100C
• Category: AS-Interface Master Module
• Series: Modicon Series
