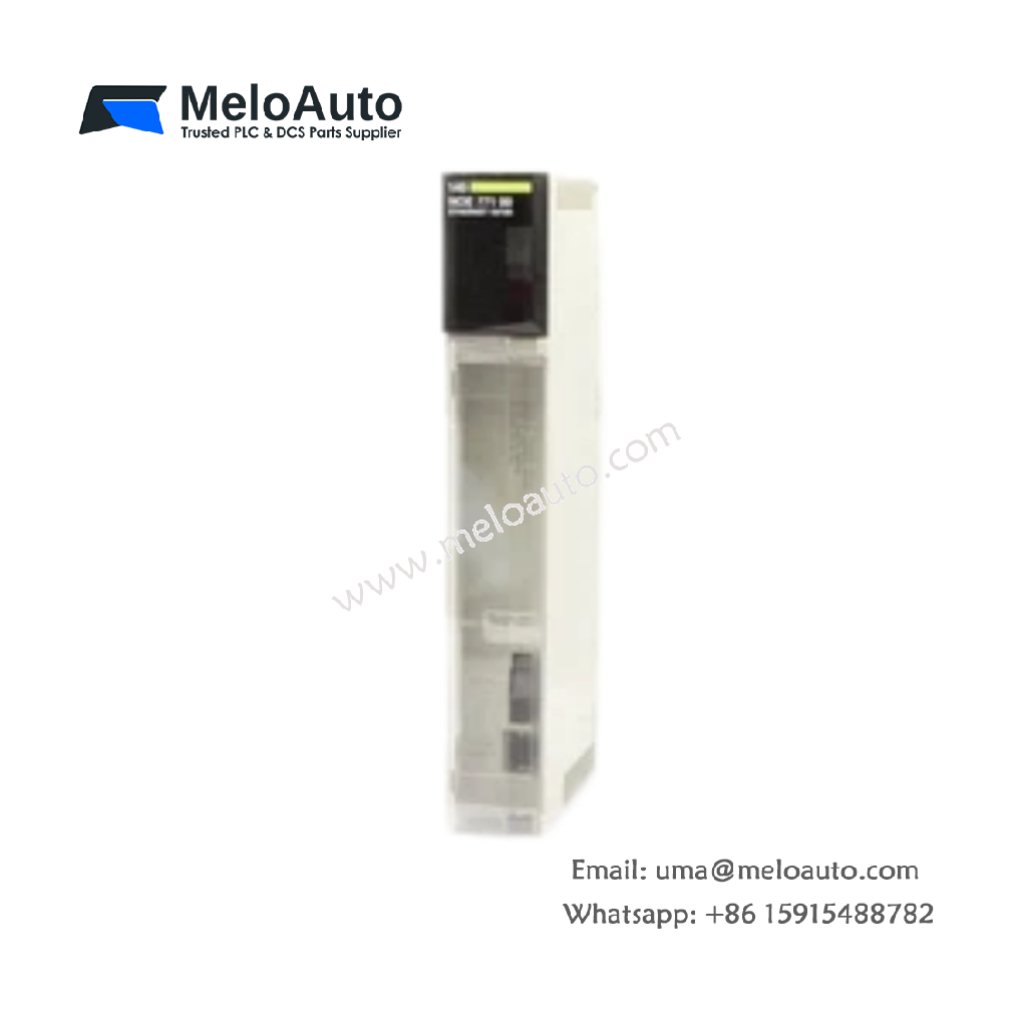

Schneider 140EDK77100 Communication Module

The Schneider 140EDK77100 is a high-performance communication module built for seamless integration into industrial automation systems. This versatile module supports multiple communication protocols, making it a reliable choice for efficient data transfer and communication between control components. It ensures smooth operation in various industrial applications, enhancing overall system performance.

Key Features and Specifications

Model: Schneider 140EDK77100
Type: Communication Module
Manufacturer: Schneider Electric
Product Line: Modicon
Part Number: 140EDK77100
Dimensions: 5.2 x 3.9 x 1.5 inches (132 x 100 x 38 mm)
Weight: 0.35 lbs (0.16 kg)
Communication Protocols: Modbus, Profibus, Ethernet
Power Supply: 24 VDC
Mounting: DIN rail
Operating Temperature: 0°C to 60°C
Humidity Range: 5% to 95% (non-condensing)

Detailed Technical Specifications

Parameter	Value
Model	140EDK77100
Manufacturer	Schneider Electric
Product Line	Modicon
Communication Protocols	Modbus, Profibus, Ethernet
Power Supply	24 VDC
Dimensions	5.2 x 3.9 x 1.5 in (132 x 100 x 38 mm)
Weight	0.35 lbs (0.16 kg)
Mounting	DIN rail
Operating Temperature	0°C to 60°C
Humidity	5% to 95% (non-condensing)

Reliable Communication Across Protocols

The Schneider 140EDK77100 enables dependable communication within complex control systems. By supporting Modbus, Profibus, and Ethernet, it guarantees compatibility with a wide range of industrial applications. Whether you’re upgrading your network or setting up new installations, this module ensures smooth data transfer, boosting system efficiency.

Flexible Integration and Easy Setup

With its 24 VDC power supply, the 140EDK77100 module provides power-efficient operation, even in demanding environments. Furthermore, it’s designed for DIN rail mounting, making installation quick and straightforward. You can effortlessly integrate it into your system, reducing downtime and improving your overall setup.

Compact, Durable, and Versatile

Despite its compact size of 5.2 x 3.9 x 1.5 inches and weight of just 0.35 lbs, the Schneider 140EDK77100 offers robust performance and durability. It functions reliably in environments with temperatures ranging from 0°C to 60°C. With its DIN rail mounting system, it fits seamlessly into your existing control panel, ensuring a secure and efficient setup.
