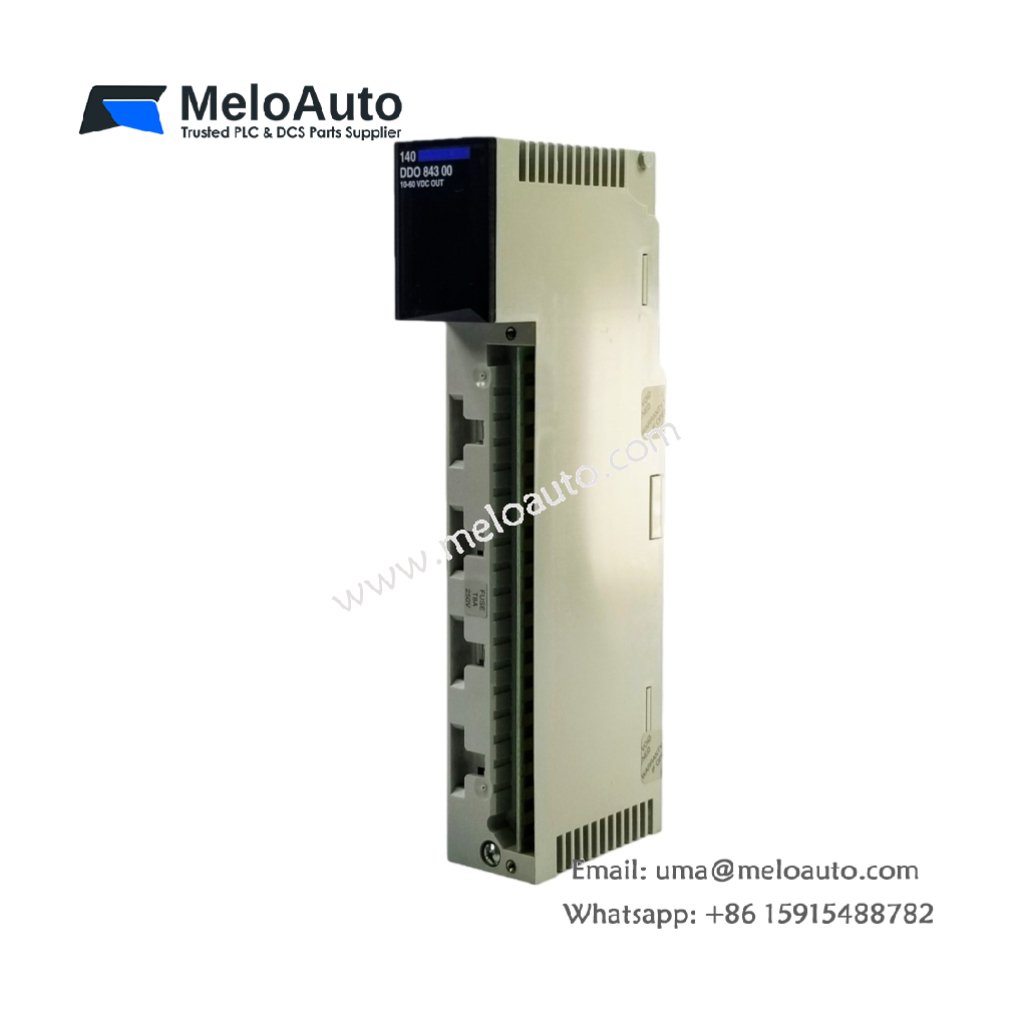

Schneider 140DDO84300C Discrete Output Module

The Schneider 140DDO84300C is a highly reliable discrete output module from Schneider Electric’s Modicon Quantum series. It offers a total of 16 discrete outputs, split into two channel groups, each consisting of 8 outputs. Designed to provide efficient control, the module operates within a voltage range of 10 to 60 V DC. Local signaling is enabled by 17 green LEDs and 1 red LED indicator, ensuring high visibility of the operational status. With its rugged design and precise functionality, the 140DDO84300C is ideal for use in industrial automation systems.

Key Features

Manufacturer: Schneider Electric
Model: 140DDO84300C
Category: Discrete Output Module
Series: Modicon Quantum
Total Outputs: 16 discrete outputs
Voltage Range: 10 to 60 V DC
Channel Groups: 2 channel groups with 8 outputs each
Local Signaling: 17 green LEDs and 1 red LED
Weight: 0.69 lbs (0.31 kg)
Coating: Conformal coating for environmental protection
Power Dissipation: Approximately 1 Watt
Temperature Range: 0 to 60°C (non-condensing environment)

Functions of the Schneider 140DDO84300C Discrete Output Module

The Schneider 140DDO84300C module serves a critical role in controlling various industrial devices by providing reliable and robust outputs. It allows for seamless operation with the following key functions:

Discrete Output Control: With 16 discrete outputs organized into two channel groups, it offers flexibility and high performance in complex automation systems.
Local Signaling: Equipped with 17 green LEDs and 1 red LED, it provides clear visual feedback on system status, improving diagnostics and operational monitoring.
Voltage Range: The module operates within a wide voltage range (10 to 60 V DC), making it suitable for diverse industrial applications and environments.
Reliability and Durability: The 140DDO84300C features a conformal coating to protect it from harsh conditions, ensuring long-term reliability.

Applications

The Schneider 140DDO84300C Discrete Output Module is widely used across various industrial sectors, including:

Manufacturing Automation: Ideal for controlling actuators, motors, and other devices in automated production lines.
Process Control: Commonly used in process automation systems to control discrete devices such as valves and relays.
Energy Management: Suitable for managing control systems in power generation plants, including energy monitoring and control devices.
Oil and Gas: Plays a key role in controlling field devices and equipment in oil and gas production facilities.
Water Treatment: Used in controlling pumps, valves, and other equipment in water treatment plants.

Technical Specifications

Parameter	Details
Input Voltage	10 to 60 V DC
Output Voltage	10 to 60 V DC
Number of Outputs	16 discrete outputs
Channel Groups	2 groups (8 outputs per group)
Coating	Conformal coating
Required Bus Current	160 milliamperes
Output Voltage Limits	10.2 to 72 V DC (absolute max)
Local Signaling	17 green LEDs, 1 red LED
Ambient Temperature	0°C to 60°C
Power Dissipation	Approximately 1 Watt
Weight	0.69 lbs (0.31 kg)

The Schneider 140DDO84300C Discrete Output Module operates efficiently within the specified voltage range of 10 to 60 V DC, with the maximum allowable voltage being 72 V under permanent conditions. It is designed for rugged industrial environments, capable of withstanding temperatures from 0°C to 60°C without condensation.

Why Choose the Schneider 140DDO84300C Discrete Output Module?

Flexible Output Control: With 16 discrete outputs, the module provides ample control for diverse industrial applications.
Visual Feedback: The built-in 17 green LEDs and 1 red LED ensure quick and easy diagnostics.
Rugged Design: The conformal coating and temperature resistance make it suitable for harsh environments.
High Efficiency: The module operates with minimal power dissipation, making it energy-efficient.

In summary, the Schneider 140DDO84300C Discrete Output Module offers efficient and reliable control, ideal for industrial automation systems. Its robust design, wide voltage range, and real-time signaling capabilities make it an excellent choice for process control and manufacturing applications.
