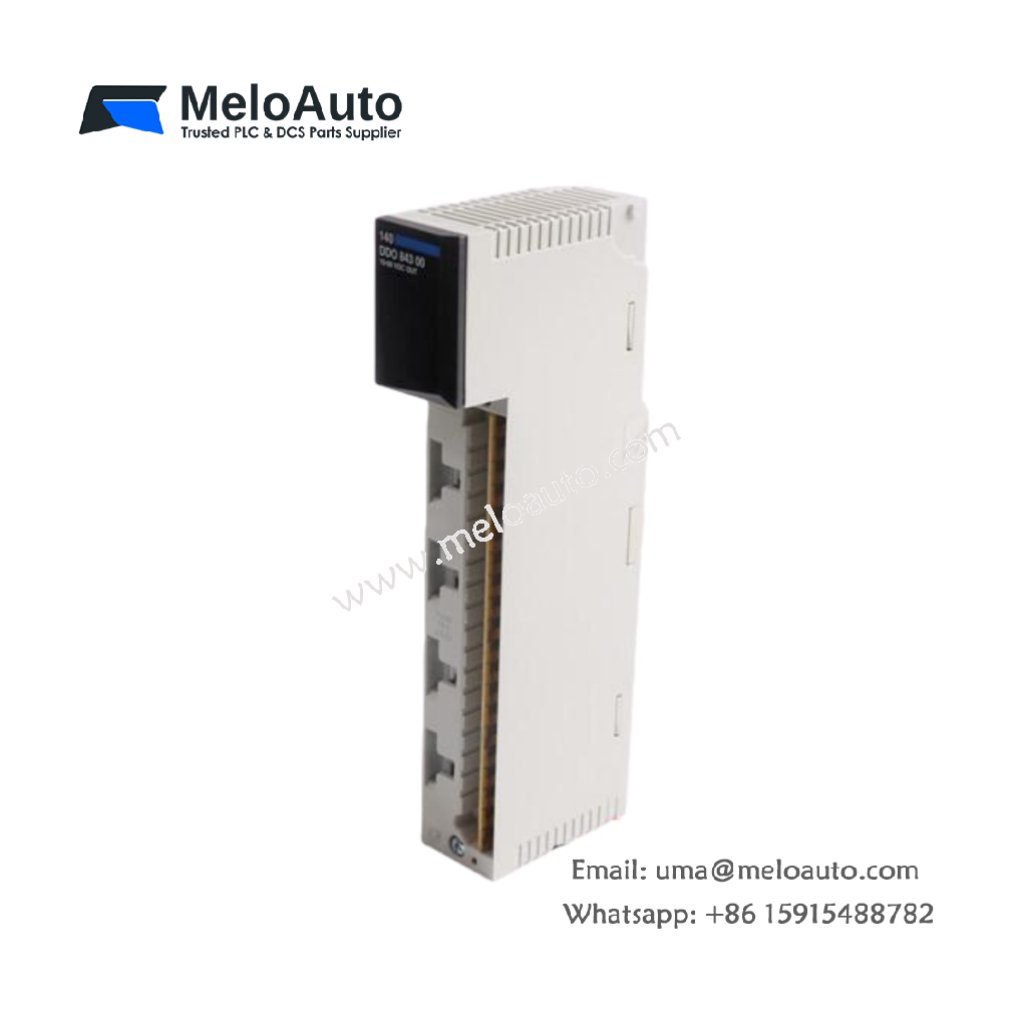

Schneider 140DDO84300 Discrete Output Module

The Schneider 140DDO84300 is a high-performance discrete output module designed for the Modicon Quantum series. Featuring 16 channels, this module provides reliable output control for various industrial automation applications.

Key Features

Product Type: Discrete Output Module
Manufacturer: Schneider Electric
Product Line: Modicon Quantum
Part Number: 140DDO84300
Output Type: Discrete outputs with positive logic
Number of Channels: 16
Voltage Range: 10 to 60V DC
Maximum Output Voltage: 72V DC (permanent)
Operating Temperature: 0°C to 60°C
Storage Temperature: -40°C to 85°C
Mounting Type: Rack mountable
Humidity Tolerance: 95% without condensation
CE Marking: Yes

Technical Specifications

Specification	Details
Manufacturer	Schneider Electric
Product Type	Discrete Output Module
Product Line	Modicon Quantum
Part Number	140DDO84300
Number of Channels	16
Discrete Output Voltage	10 to 60V DC
Output Voltage Limits	10.2 to 72V DC
Output Logic	Positive (Source)
Groups of Channels	2 groups of 8 channels
Leakage Current	1 mA at 60V
Maximum Output Voltage	72V (Permanent)
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 85°C
Mounting Type	Rack Mountable
Required Bus Current	160 mA
Maximum Relative Humidity	95% without condensation
CE Marking	Yes

Description

The Schneider 140DDO84300 is a key component in the Modicon Quantum series, offering 16 discrete output channels for precise control. It supports a wide output voltage range of 10 to 60V DC, with a maximum output voltage of 72V DC, ensuring versatility in automation tasks.

This module uses positive logic output and groups the channels into two sets of eight. To operate, the module requires 1 output word for addressing, ensuring efficient control across multiple outputs. It also has a bus current requirement of 160 mA to maintain consistent performance.

Operating within an environment temperature range of 0°C to 60°C, the 140DDO84300 performs well under diverse industrial conditions. Additionally, it can endure storage temperatures between -40°C and 85°C, making it suitable for harsh environments. The module supports a maximum relative humidity of 95%, ensuring stability even in humid conditions without condensation.

The 140DDO84300 is designed to be mounted in a rack for easy integration into existing setups. It carries the CE certification, meeting international safety standards. With a maximum leakage current of 1 mA at 60V, the module provides reliable and safe operation, while the absolute maximum output is capped at 72V to ensure optimal functioning.
