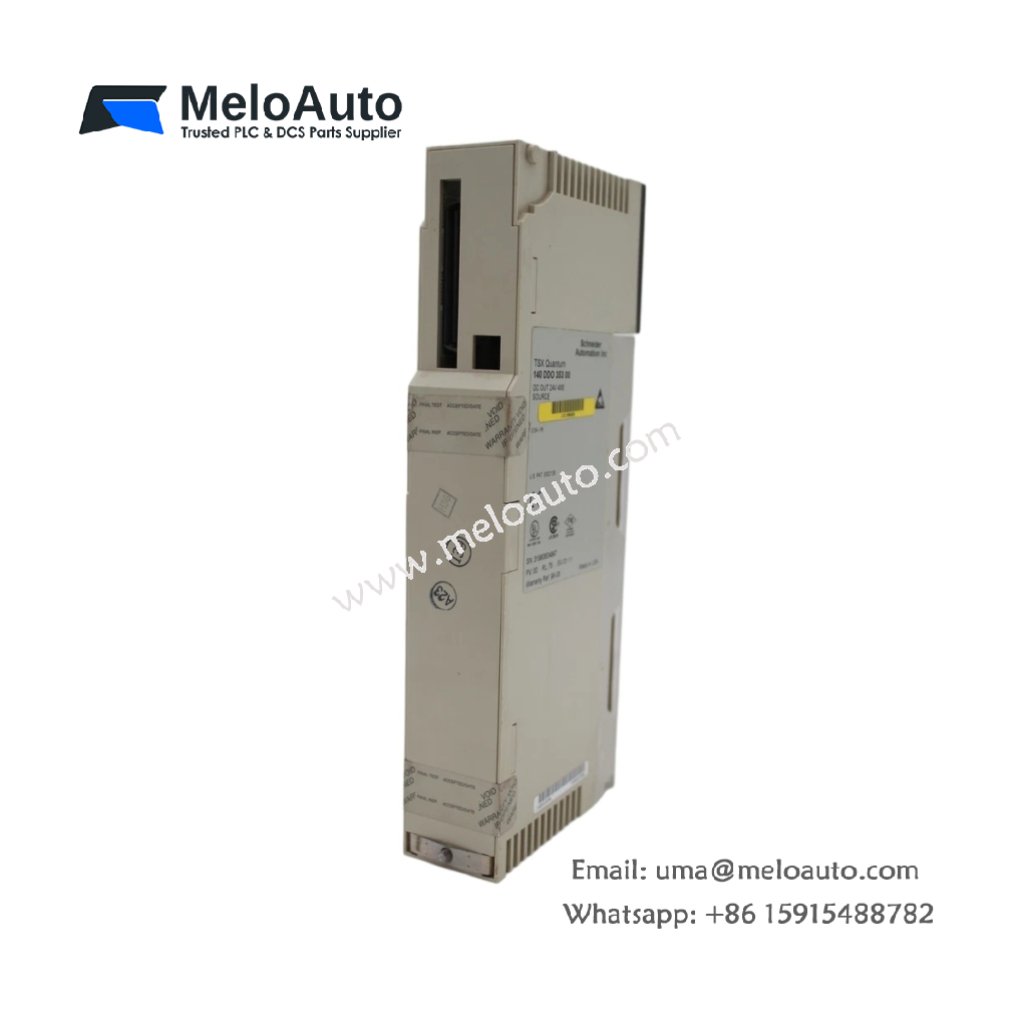

Schneider 140DDO35301C Discrete Output Module

Overview

The Schneider 140DDO35301C Discrete Output Module ensures high-performance control for industrial automation systems. It is specifically designed to provide precise and reliable output management for discrete control applications. This module integrates seamlessly into Schneider’s Modicon PLC systems, handling outputs with efficiency and robustness.

Operating at 24 V DC, the 140DDO35301C guarantees stable performance for a variety of applications. Moreover, it comes with multiple channels to support complex control needs, all within a compact, space-saving design. The 140DDO35301C is ideal for environments where space and reliability are both critical.

Technical Specifications

Feature	Specification
Model	140DDO35301C
Manufacturer	Schneider Electric
Product Type	Discrete Output Module
Voltage	24 V DC
Number of Channels	8 Channels
Output Type	Discrete (ON/OFF)
Current per Channel	0.5 A
Operating Temperature Range	-20°C to +70°C
Weight	0.65 kg (1.43 lbs)
Mounting Type	DIN Rail Mountable
Protection Rating	IP20
Communication Protocol	Modbus
Dimensions	3.9″ x 3.2″ x 2.1″ (100mm x 80mm x 53mm)

Key Features

High Current Output: Each of the 8 output channels in the 140DDO35301C module can supply up to 0.5 A of current. This allows for wide compatibility across multiple applications.
Wide Temperature Range: The module operates effectively in a temperature range of -20°C to +70°C, making it highly adaptable for varying industrial environments.
Compact Design: Thanks to its DIN rail mountable design, the 140DDO35301C module offers a space-saving solution, particularly useful for constrained installation spaces.
Efficient Output Control: The module provides 8 discrete output channels, enabling precise ON/OFF control signals across various industrial systems.
Reliable Protection: With an IP20 protection rating, the 140DDO35301C is built to withstand typical industrial conditions while maintaining optimal performance.
Modbus Communication: The module integrates effortlessly with Modicon PLC systems through the Modbus communication protocol, ensuring smooth system connectivity.

Conclusion

In conclusion, the Schneider 140DDO35301C Discrete Output Module is an ideal solution for industrial automation systems. It provides 8 output channels, each capable of 0.5 A of current. The module’s robust design, combined with its wide temperature range and IP20 protection, ensures that it meets the demands of most industrial environments. Additionally, its Modbus communication protocol guarantees easy integration with existing systems.
