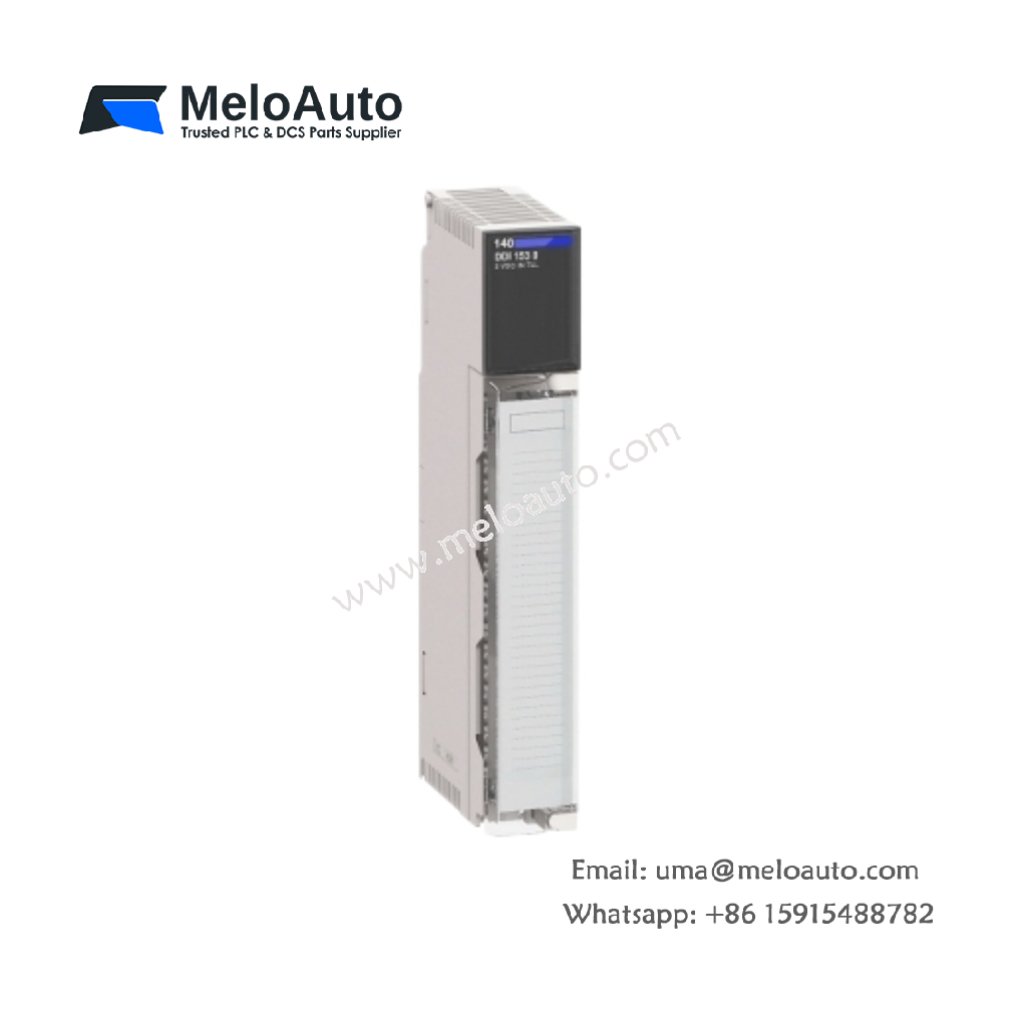

Schneider 140DDI35310C Discrete Input Module – Modicon Quantum Series

The Schneider 140DDI35310C Discrete Input Module, designed for the Modicon Quantum automation platform, delivers high-performance input processing for industrial applications. Operating at 24V DC, this module provides 32 discrete inputs and accommodates up to four groups of channels. It is engineered for reliability, ensuring seamless integration into complex automation systems. Additionally, the 140DDI35310C module features a wide voltage input range and guarantees precise voltage states, making it an excellent choice for demanding industrial environments.

Key Features and Specifications

• Model Number: Schneider 140DDI35310C
• Category: Discrete Input Module
• Series: Modicon Quantum
• Discrete Input Number: 32
• Group of Channels: 4
• Logic Input Type: Negative (source)
• Discrete Input Voltage: 24V DC
• Input Voltage Limits: 19.2V to 30V
• Voltage State 1 Guaranteed: -30V to -15V DC
• Voltage State 0 Guaranteed: -5V to 0V DC
• Current State 1 Guaranteed: ≥ 2.5 mA at Us = -14V
• Addressing Requirement: 2 input words
• Input Impedance: 2400 Ohms
• Bus Current Requirement: 330 mA
• Module Format: Standard

Product Overview

The Schneider 140DDI35310C Discrete Input Module is built to handle complex industrial applications with ease. It supports 32 discrete inputs, offering flexibility through four groups of channels. The module accepts 24V DC input voltage and ensures a precise input voltage range from 19.2V to 30V. Importantly, it provides guaranteed voltage states of -30V to -15V for state 1 and -5V to 0V for state 0. This guarantees reliable operation, even in fluctuating industrial environments.

Furthermore, the 140DDI35310C module requires only two input words for addressing, facilitating efficient integration with control systems. Its high input impedance of 2400 Ohms ensures stability, while its bus current requirement of 330 mA helps optimize overall system power usage. Designed for standard module configurations, it is both easy to install and highly effective in automating industrial processes.

Applications

The Schneider 140DDI35310C Discrete Input Module is an ideal choice for industries like manufacturing, energy, and process control. It excels in systems requiring reliable input processing from various sensors and devices. Whether integrated into large automation systems or used in machine monitoring, it delivers the performance and precision needed for real-time control.

Product Details

• Brand: Schneider
• Model: 140DDI35310C
• Category: Discrete Input Module
• Series: Modicon Quantum
