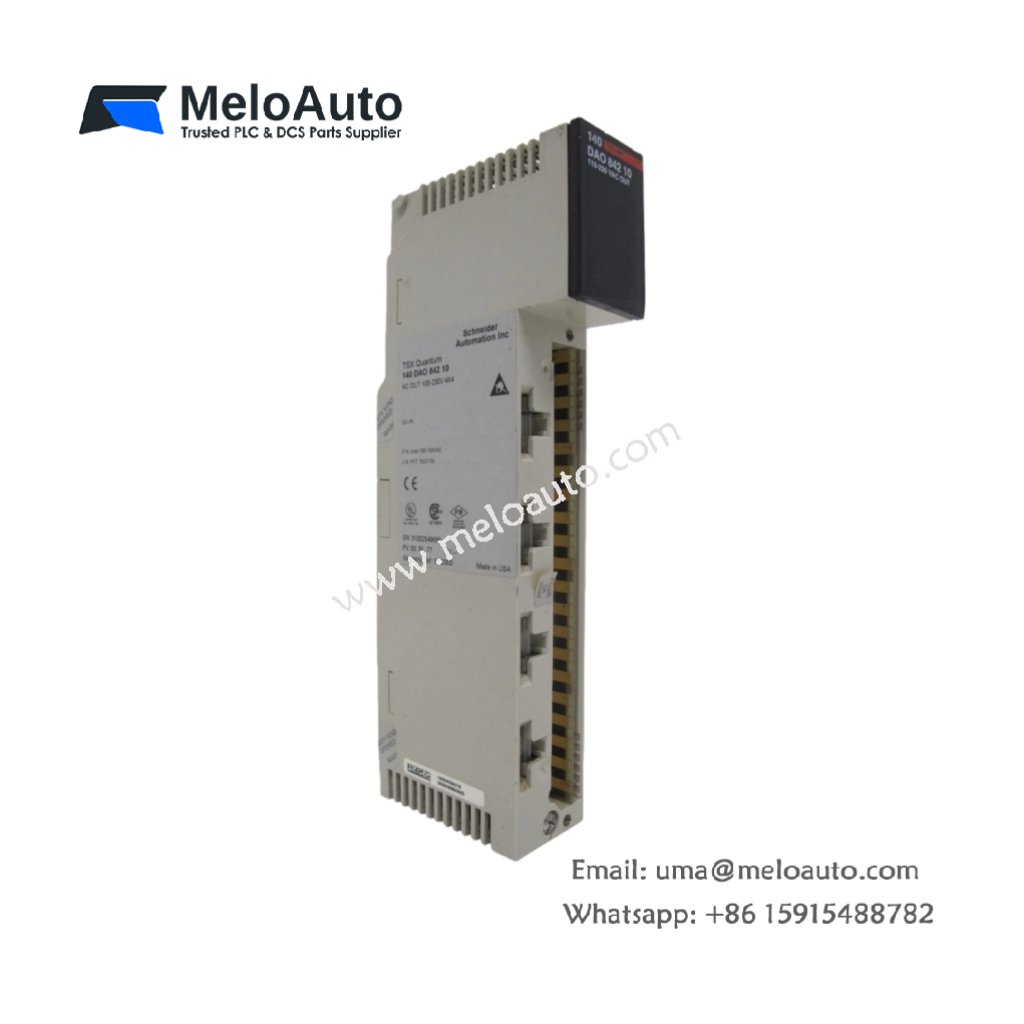

Schneider 140DAO84210 Discrete Output Module – Modicon Quantum Series

Overview

The Schneider 140DAO84210 is a versatile discrete output module from the Modicon Quantum series. Featuring 16 discrete output channels, this module operates efficiently within a voltage range of 85 to 253V AC, offering flexibility for various industrial applications.

Key Features

• Number of Channels: The 140DAO84210 includes 16 channels, organized into four groups for optimal functionality.
• Discrete Output Voltage: It operates within a voltage range of 85 to 253V AC, making it suitable for diverse environments.
• Maximum Voltage Drop: The module ensures a low maximum voltage drop of 1.5V, maintaining efficiency across all outputs.
• Supply Frequency: Designed to work across 47 to 63 Hz, this module ensures stable performance in different industrial setups.
• dv/dt Rating: The 140DAO84210 can handle a dv/dt rating of 400V/rms, ensuring durability under varying operational conditions.
• Maximum Output: This module can support a maximum output of 300Vrms for 10 seconds and 400Vrms for one cycle in AC environments.

Technical Specifications

Performance and Versatility

The Schneider 140DAO84210 discrete output module delivers reliable and efficient operation with 16 discrete output channels. Its 85 to 253V AC voltage range makes it adaptable to different industrial applications, while the low 1.5V maximum voltage drop ensures consistent performance.

Designed for high performance, it supports supply frequencies of 47 to 63 Hz and can handle a dv/dt rating of 400V/rms, making it suitable for challenging industrial environments. Additionally, the maximum output rating of 300Vrms for 10 seconds and 400Vrms for a cycle at AC ensures the module can manage high-demand tasks.

Robust Environmental Adaptability

The 140DAO84210 operates effectively within a wide temperature range of 0°C to 60°C and can be stored between -40°C and 85°C, making it ideal for installations in extreme environments. It is designed to withstand 95% humidity levels without condensation, ensuring reliable performance in fluctuating conditions.

Easy Integration and Compliance

This module features a rack-mountable design, simplifying integration into existing control systems. The CE marking confirms that the 140DAO84210 meets essential safety and regulatory standards. Its rugged design and robust specifications make it a dependable choice for industrial automation systems.

Conclusion

The Schneider 140DAO84210 discrete output module is an essential component for reliable and flexible industrial control systems. With its 16 output channels, wide voltage range, and robust environmental tolerance, this module ensures top-notch performance in demanding industrial environments. Its low voltage drop, energy efficiency, and easy integration make it a valuable asset for a wide range of applications.
