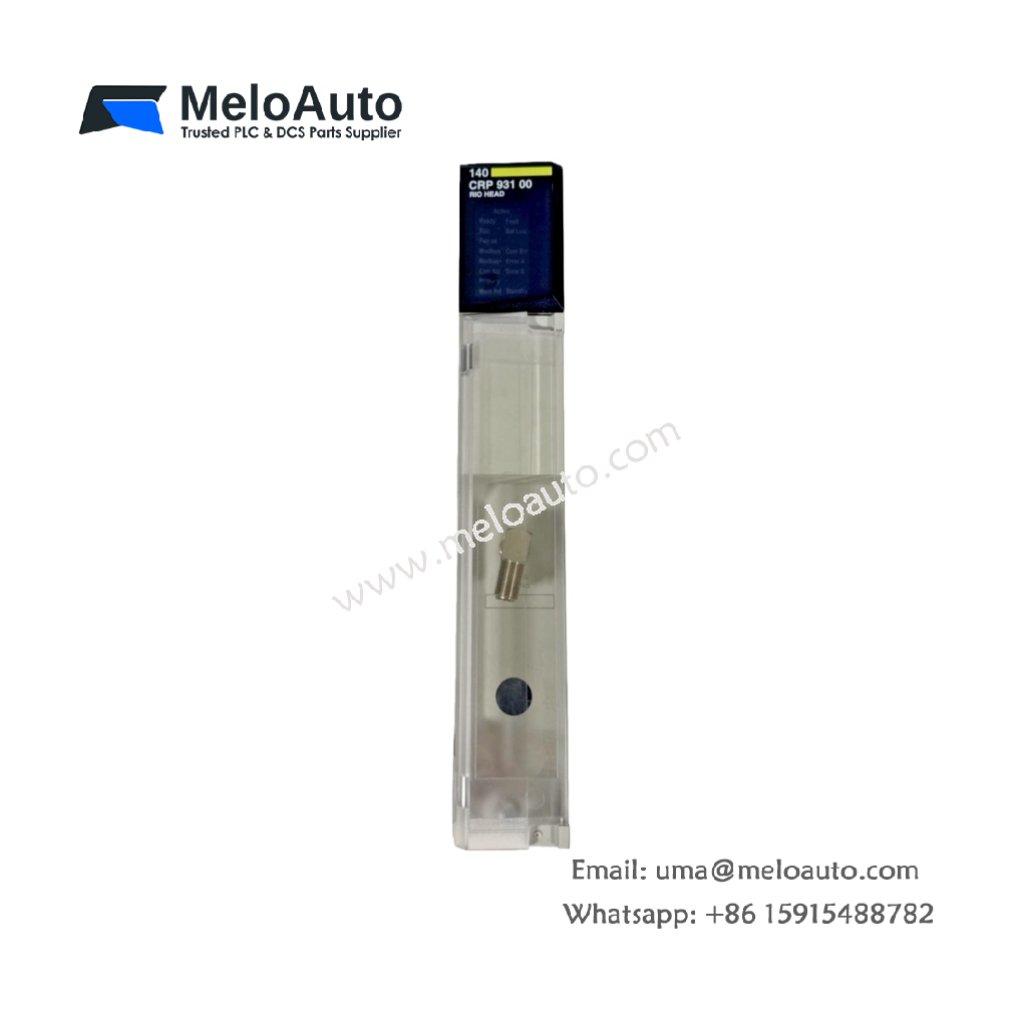

Schneider 140CRP93100 RIO Head-End Adaptor

Overview

The Schneider Electric 140CRP93100 is a high-performance RIO head-end adaptor from the Modicon Quantum series. It enables reliable communication over a single channel and supports up to 31 drops within a network. This module is ideal for integration into industrial automation systems where precise data transmission and high reliability are crucial.

Key Features

• Single Channel Communication: The 140CRP93100 supports 1 channel, facilitating communication for up to 31 drops within your system. It ensures efficient data management for multiple connected devices.
• High-Speed Data Transmission: Featuring a transmission rate of 1544 Mbit/s, the module provides fast data transfer for real-time applications.
• Data Handling Capacity: With 64 input words and 64 output words per drop, this module allows efficient data handling across the network, ensuring reliable system control.
• Wide Temperature Tolerance: The 140CRP93100 functions within an operating range of 0°C to 60°C, while it can be stored between -40°C to 85°C, offering flexibility for diverse environments.
• Coaxial Cable Compatibility: Designed for use with 75 Ohm coaxial cable, this module ensures optimal signal integrity and reliable connectivity.
• Signal Integrity: The module maintains a dynamic rating of 35 dB, minimizing signal degradation, which guarantees strong and clear data transmission.
• High Isolation Voltage: With an isolation voltage of 500V DC, the 140CRP93100 protects your system from electrical interference, ensuring safe operation.
• Humidity Resistance: The module can operate in environments with 95% relative humidity (non-condensing), making it reliable even in high-humidity conditions.
• Low Power Consumption: Drawing only 600 mA of bus current and dissipating 3W of power, it delivers performance while maintaining energy efficiency.

Technical Specifications

Product Description

The Schneider Electric 140CRP93100 serves as a RIO head-end adaptor within the Modicon Quantum series. This module efficiently manages communication through a single channel, supporting up to 31 drops. It integrates seamlessly into your automation system, enabling robust and fast data exchange across connected devices.

With 75 Ohm coaxial cables, the module guarantees minimal signal loss and maintains high data integrity. The 140CRP93100 supports 64 input and 64 output words per drop, ensuring smooth and reliable communication. It operates with a high-speed transmission rate of 1544 Mbit/s, making it suitable for real-time industrial applications.

Designed to function across a temperature range of 0°C to 60°C, this module is also capable of withstanding extreme storage temperatures from -40°C to 85°C. Its 95% relative humidity tolerance (non-condensing) ensures reliable operation even in humid environments.

Thanks to its dynamic rating of 35 dB, the 140CRP93100 maintains a stable signal during high-speed data transfers, while its 500V DC isolation voltage protects your equipment from electrical noise and interference. The module consumes only 3W of power and requires 600 mA of bus current, providing efficient performance without wasting energy.

Applications

• Industrial Automation Systems: Ideal for use within Modicon Quantum systems, the 140CRP93100 ensures seamless communication for networked devices.
• Real-Time Data Networks: With its high transmission rate of 1544 Mbit/s, this module is perfect for networks requiring fast data exchanges.
• Harsh Environmental Conditions: Designed to perform in extreme temperatures and humid environments, it offers reliable communication in various industrial settings.

Conclusion

The Schneider Electric 140CRP93100 is a reliable and efficient RIO head-end adaptor that supports 1 channel and 31 drops in Modicon Quantum networks. With high-speed data transfer, robust signal integrity, and broad environmental tolerance, it meets the demanding needs of modern industrial automation systems.
