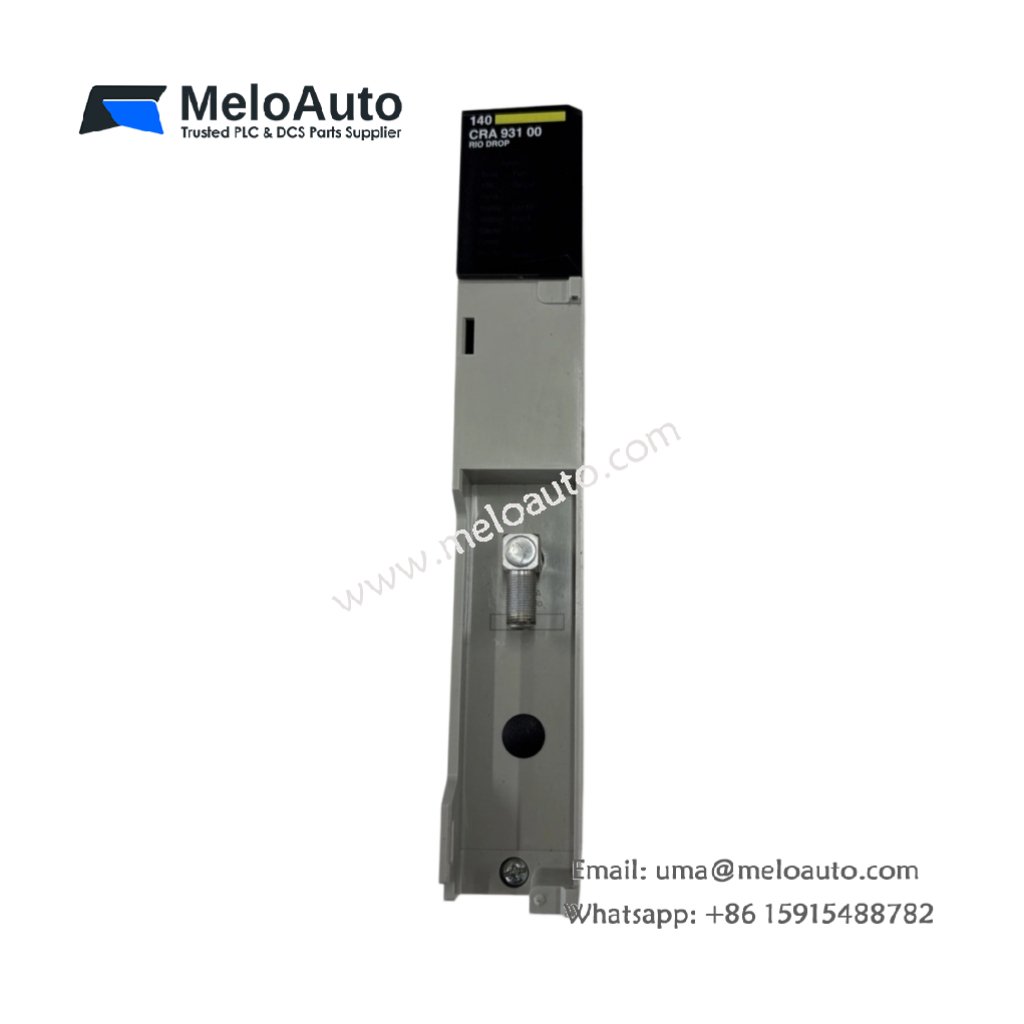

Schneider 140CRA93101C RIO Drop Adaptor Module

The Schneider 140CRA93101C RIO Drop Adaptor module is specifically designed for integration with Schneider Electric’s Quantum series. It provides seamless connectivity for I/O expansion, ensuring enhanced performance and reliability in your automation system.

Key Features of the Schneider 140CRA93101C RIO Drop Adaptor Module

The Schneider 140CRA93101C is an essential module for expanding your Quantum system, offering the following features:

Compatibility: Fully compatible with the Quantum series, ensuring smooth integration with existing systems.
Maximum I/O Support: It supports up to 27 I/O channels, allowing for significant expansion.
Cable Type: Designed for 75 Ohm coaxial cables, ensuring stable transmission over long distances.
Transmission Rate: The module supports a 1544 Mbit/s transmission rate, providing high-speed data transfer.
Isolation Voltage: Features 500 V DC isolation between the coaxial center and ground for enhanced safety.
Electrical Connection: Equipped with a female connector, elbowed with a single cable, making installation convenient.
Diagnostics and Startup: Quick diagnostics and startup ensure smooth operation and faster troubleshooting.

Technical Specifications

Feature	Specification
Model	140CRA93101C
Type	RIO Drop Adaptor Module
Compatibility	Quantum Series
Maximum Number of I/O	27
Cable Type	75 Ohm Coaxial Cable
Transmission Rate	1544 Mbit/s
Dynamic Range	35 dB
Isolation Voltage	500 V DC
Electrical Connection	Female Connector F, Elbowed with Cable
Power Dissipation	3 W (1 channel)
Bus Current Requirement	600 mA (1 channel)
Module Format	Standard

Why Choose the Schneider 140CRA93101C RIO Drop Adaptor Module?

The Schneider 140CRA93101C offers significant advantages for expanding your Quantum system:

High Compatibility: This module integrates perfectly with the Quantum series, making it easy to expand without compatibility issues.
Fast Data Transfer: The 1544 Mbit/s transmission rate ensures quick and reliable data communication for your automation system.
Efficient Power Consumption: With only 3 W power dissipation per channel, the module maintains energy efficiency while operating at peak performance.
Robust Isolation: The 500 V DC isolation prevents electrical interference, ensuring safety and reliability in harsh environments.
Space-Efficient Design: The compact format with a female connector F ensures a neat installation with minimal space requirements.

Applications of the Schneider 140CRA93101C RIO Drop Adaptor Module

The Schneider 140CRA93101C RIO Drop Adaptor module is ideal for various industrial applications, including:

Industrial Automation: It enhances I/O capacity and data transfer speed for automation systems in manufacturing environments.
Process Control: Ideal for industries that require high-speed, reliable communication for process control and monitoring.
Energy Management: Can be used in energy monitoring systems to ensure stable data flow for accurate readings.
Building Automation: Suitable for expanding building automation systems, ensuring efficient and smooth operation.
