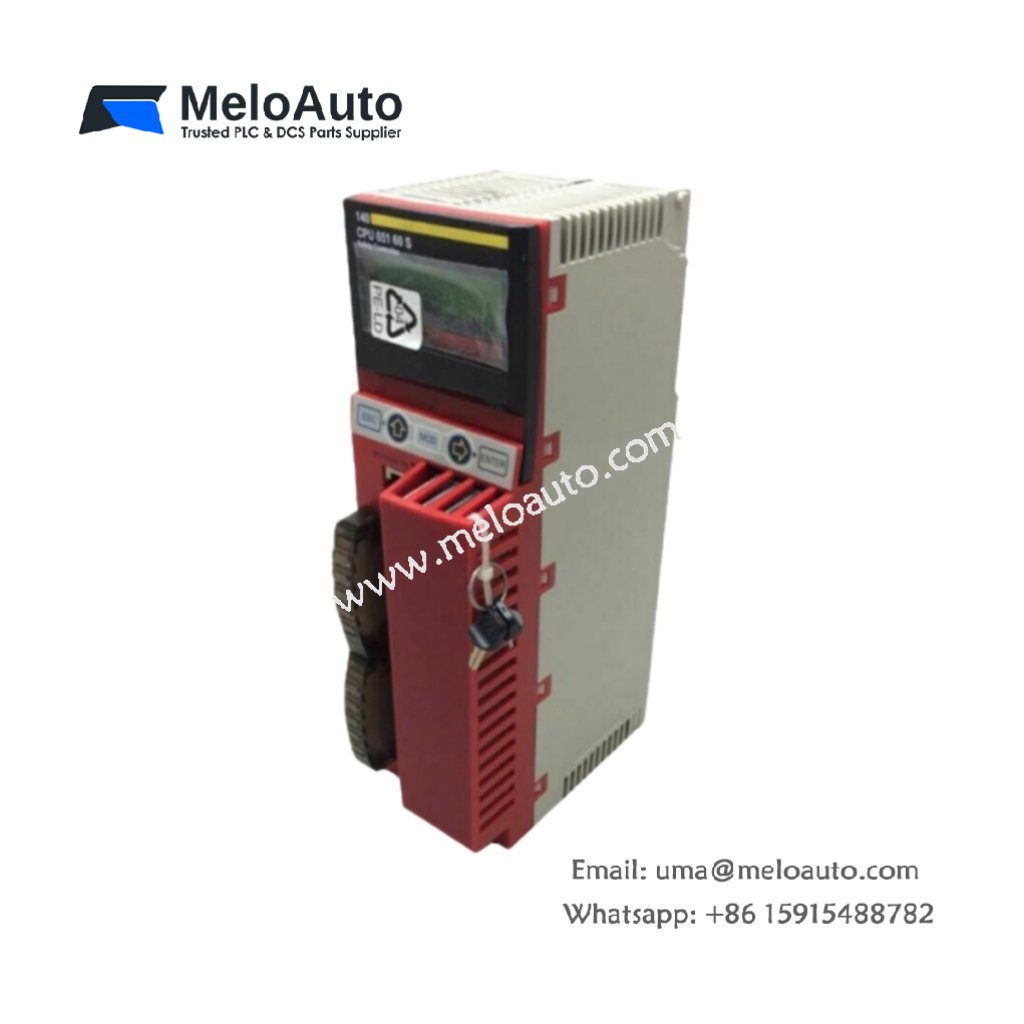

Schneider 140CPU65160 Unity Processor

Overview

The Schneider 140CPU65160 is a high-performance processor from the Modicon Quantum series. Equipped with a Unity Processor and a clock speed of 266 MHz, this controller delivers powerful performance for demanding industrial applications. With 1024 KB of RAM and support for multiple communication protocols, it offers reliable and efficient data handling.

Key Features

• Clock Speed: The Unity Processor operates at a high frequency of 266 MHz, providing fast processing power.
• RAM Capacity: Offers 1024 KB of RAM to handle complex data processing tasks.
• Communication Protocols: Supports Ethernet, Modbus, and Modbus Plus, ensuring flexible integration with various systems.
• Local Racks: Accommodates 2 local racks, allowing for system expansion as needed.
• Temperature Range: Operates within an 0°C to 60°C range, making it suitable for most industrial environments.
• Storage Temperature: Withstands extreme temperatures from -40°C to 85°C for safe storage.
• USB Connectivity: Includes 1 USB connection for easy communication and integration.
• Counter I/O Support: Handles counter I/O, providing versatility for different automation tasks.
• High-Speed Interrupt Inputs: Supports high-speed interrupt inputs for real-time applications.
• Time-Stamping I/O: Accurate time-stamping for I/O operations ensures precise data logging.

Technical Specifications

Performance & Versatility

The 140CPU65160 ensures optimal performance across various industrial conditions. With a robust clock frequency of 266 MHz and 1024 KB of RAM, it handles large amounts of data while maintaining high processing speed. It supports a variety of communication standards, including Ethernet, Modbus, and Modbus Plus, making it adaptable to different automation networks.

It can operate in environments with temperatures from 0°C to 60°C, while its storage capabilities extend to extreme conditions ranging from -40°C to 85°C. This makes the 140CPU65160 ideal for both normal operating and harsh storage environments.

Easy Integration

The 140CPU65160 is designed for rack mount installation, simplifying system integration. With a 2760 mA bus current requirement, it ensures a stable power supply for reliable operation. Additionally, the 1 USB connection and extensive I/O support (including counter I/O and high-speed interrupt inputs) make it a highly versatile component in any automation system.

Conclusion

The Schneider 140CPU65160 Unity Processor is a robust, high-speed controller designed for the Modicon Quantum series. With its advanced features, including Ethernet, Modbus, and Modbus Plus communication capabilities, it is a reliable solution for a wide range of industrial automation tasks. Its flexibility in temperature ranges, I/O support, and processing power ensures it can meet the needs of both standard and demanding applications.
