Schneider 140CPU53414C | Quantum Processor

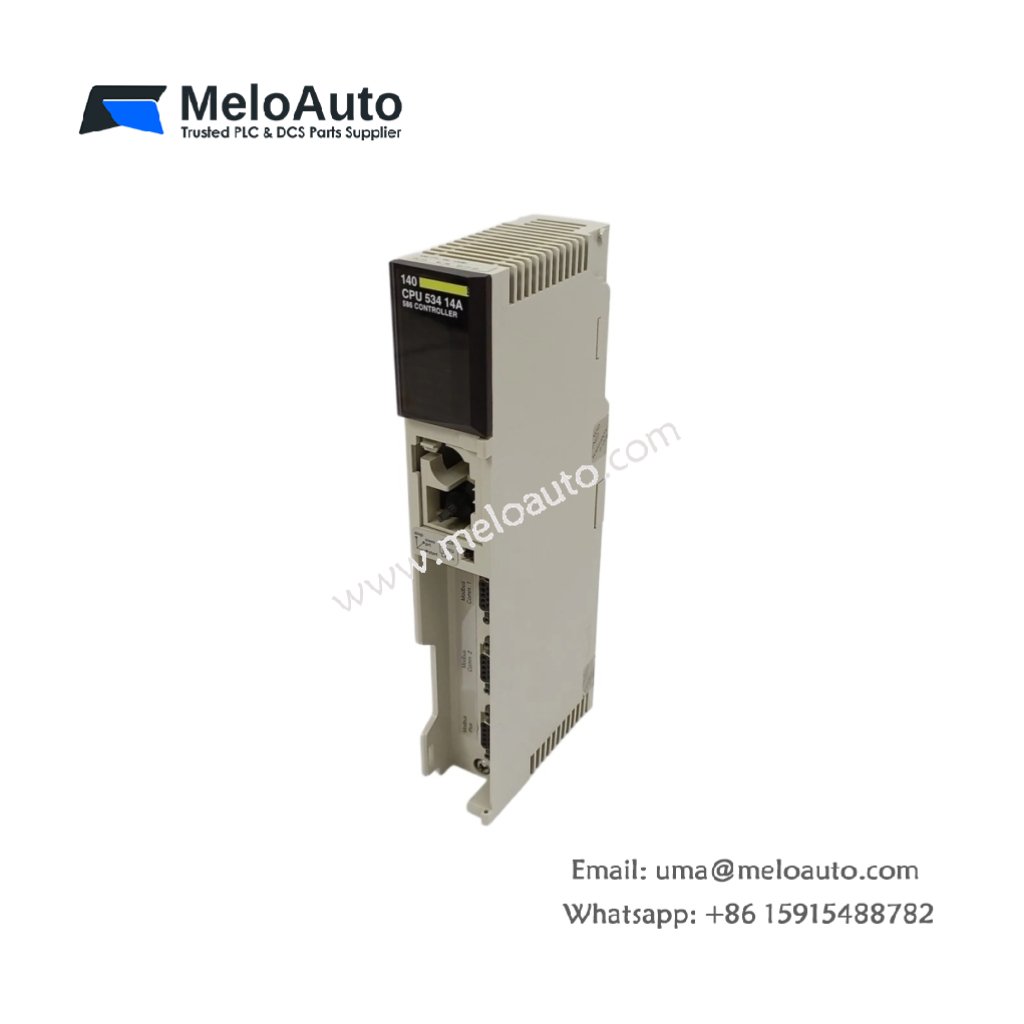

The Schneider 140CPU53414C serves as the main controller for the Modicon Quantum automation platform. This processor delivers powerful execution of complex control programs for large-scale applications. It includes 14 MB of built-in flash memory for extensive user program storage. Weighing only 0.45 kg, the Schneider 140CPU53414C fits into any standard Quantum rack slot. Its dimensions measure 150 mm x 100 mm x 55 mm.

Processing Power and Memory Architecture

The Schneider 140CPU53414C executes 0.09 milliseconds per 1K of boolean logic for fast scanning. This processor handles up to 64,000 discrete I/O and 8,000 analog I/O channels. It also features 10 MB of internal RAM for rapid data access. Moreover, the Schneider 140CPU53414C includes a 14 MB flash memory for program backup and data logging. Consequently, you can store extensive applications without needing external memory cards.

Communication Ports and Energy Storage

The Schneider 140CPU53414C features two built-in communication ports for networking flexibility. One port supports Modbus RS-232 serial communication for programming and HMI connections. The second port supports Modbus Plus for high-speed peer-to-peer networking between controllers. Importantly, the Schneider 140CPU53414C contains a lithium battery for SRAM data backup. This battery provides energy storage for up to 1,000 hours without external power. Therefore, your critical data remains safe during power outages.

Technical Specifications Table

Below are the complete technical parameters for engineers and procurement teams:

Parameter	Specification
Full Product Name	Schneider 140CPU53414C
Product Category	Modicon Quantum High-Performance Processor
Processor Type	32-bit RISC microcontroller
Processing Speed	0.09 ms per 1K boolean instructions
Program Memory (Flash)	14 MB
Internal RAM	10 MB
Discrete I/O Capacity	Up to 64,000 channels
Analog I/O Capacity	Up to 8,000 channels
Built-in Communication Ports	2 (Modbus RS-232 + Modbus Plus)
Serial Port Connector	1 x 9-pin SUB-D (RS-232)
Modbus Plus Connector	1 x 9-pin SUB-D
Supported Protocols	Modbus, Modbus Plus, Modbus TCP (with NOE module)
Energy Storage Type	Lithium battery (user-replaceable)
Battery Backup Duration	1,000 hours (approximately 41 days)
Current Consumption (5V DC)	900 mA from rack
Power Dissipation	4.5 W maximum
Number of Components	1 main PCB + battery holder + metal housing + 2 communication ports
Net Weight	0.45 kg (450 grams)
Gross Weight (packaged)	590 grams
Dimensions (H x W x D)	150 mm x 100 mm x 55 mm
Real-Time Clock Accuracy	±2 minutes per month
RTC Battery Backup	Same lithium battery (shared)
Maximum Number of Remote I/O Drop	64
Maximum Distributed I/O	32,000 channels
Operating Temperature	0°C to +60°C
Storage Temperature	-40°C to +85°C
Degree of Protection	IP20
Certifications	CE, UL 508, CSA, ATEX Zone 2
Configuration Software	Unity Pro XL, Concept, ProWORX 32

Installation and Application Details

The Schneider 140CPU53414C mounts directly into any Modicon Quantum rack. Insert the processor into the leftmost slot of the rack for proper system operation. You need Unity Pro XL or Concept software for programming this processor. The Schneider 140CPU53414C suits large process control, water treatment, and material handling systems. It supports hot standby configurations for redundant control applications. Thus, this processor delivers exceptional performance for demanding industrial automation environments. Replace the lithium battery every 5 years under normal operating conditions.
