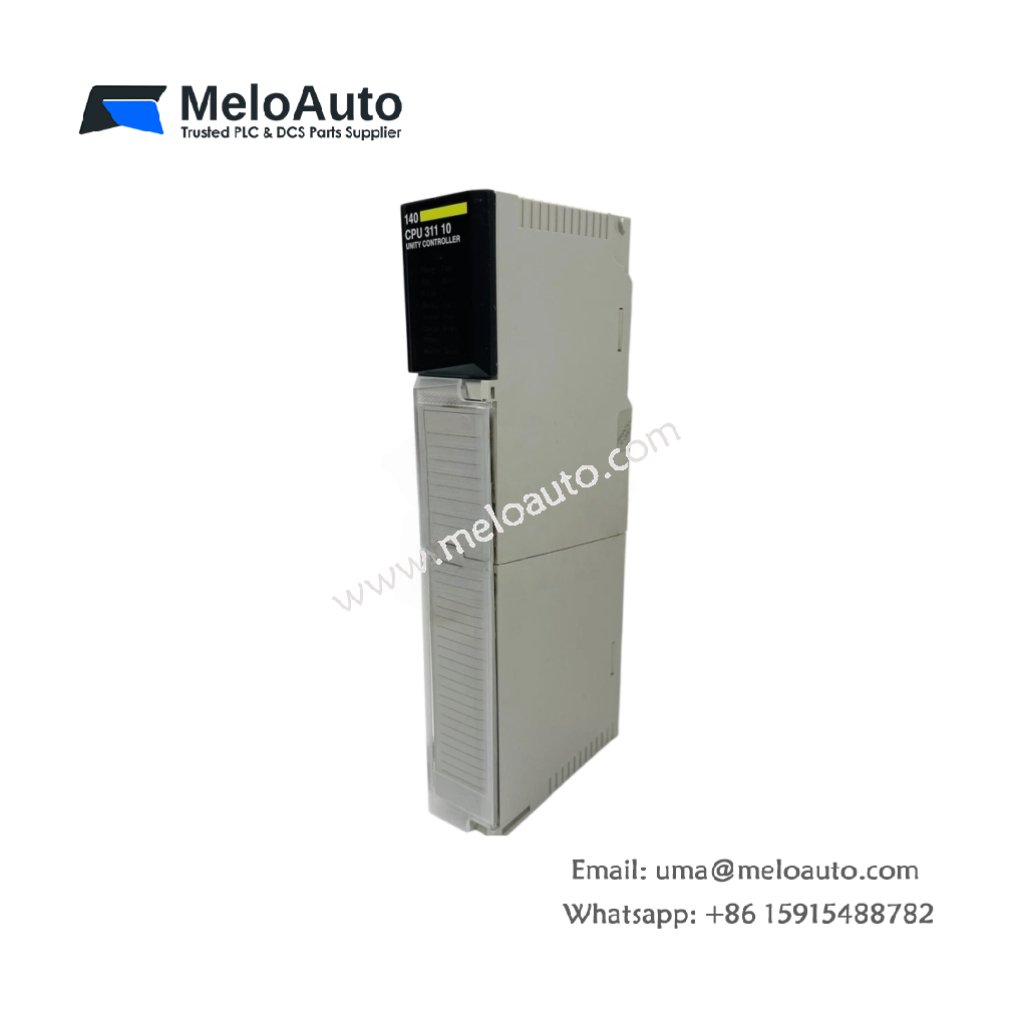

Schneider 140CPU31110C Unity Processor

Technical Specifications

Parameter	Value
Brand	Schneider
Model	140CPU31110C
Category	Unity Processor
Weight	1.08 lbs (0.49 kg)
Dimensions	5.4 x 4.9 x 3.5 inches
Component Count	256 discrete components
Processor Type	32-bit RISC
Clock Speed	266 MHz
Program Memory	1024 KB flash
Data Memory	1024 KB SRAM
Backup Memory	256 KB flash
Processing Speed	0.09 µs per boolean instruction
Communication Ports	1 x Modbus, 1 x USB
Energy Storage	3 x 220µF, 2 x 100µF
Backup Battery	3V lithium (10 years life)
Operating Temperature	0°C to 60°C

Physical Construction and Component Density

This 140CPU31110C Unity processor measures 5.4 inches in height. Its width reaches 4.9 inches with a depth of 3.5 inches. The total weight comes to approximately 1.08 pounds. Manufacturers placed 256 discrete components on this high-density PCB. These components include a RISC CPU, memory chips, bus drivers, and power regulators. The board uses a six-layer design for signal integrity.

Processing Power and Memory Architecture

140CPU31110C features a 32-bit RISC processor running at 266 MHz. This CPU executes boolean instructions in just 0.09 microseconds. Program memory includes 1024 KB of flash for user applications. Data memory provides another 1024 KB of static RAM for variables. A separate 256 KB of flash holds backup system parameters. A 3V lithium battery preserves SRAM contents during power loss. This battery lasts approximately 10 years under normal conditions. Consequently, the processor retains critical data through extended outages.

Communication Interfaces and I/O Handling

The Unity processor includes two built-in communication ports. One Modbus port connects to HMIs, drives, or SCADA systems. One USB port allows direct connection to programming software. The 140CPU31110C manages local and remote I/O racks seamlessly. It supports up to 2048 digital I/O points total. Additionally, it handles 256 analog I/O channels for process control. For energy storage, the board integrates three 220µF capacitors. Two additional 100µF capacitors filter high-frequency power noise.

Application Use and System Reliability

You will find this processor in Modicon Quantum PLC systems. It suits water treatment, material handling, and manufacturing lines. The 140CPU31110C operates reliably from 0°C to 60°C ambient. A real-time clock adds timestamps to diagnostic events. Therefore, this Unity processor delivers high-speed logic control for demanding industrial applications.
