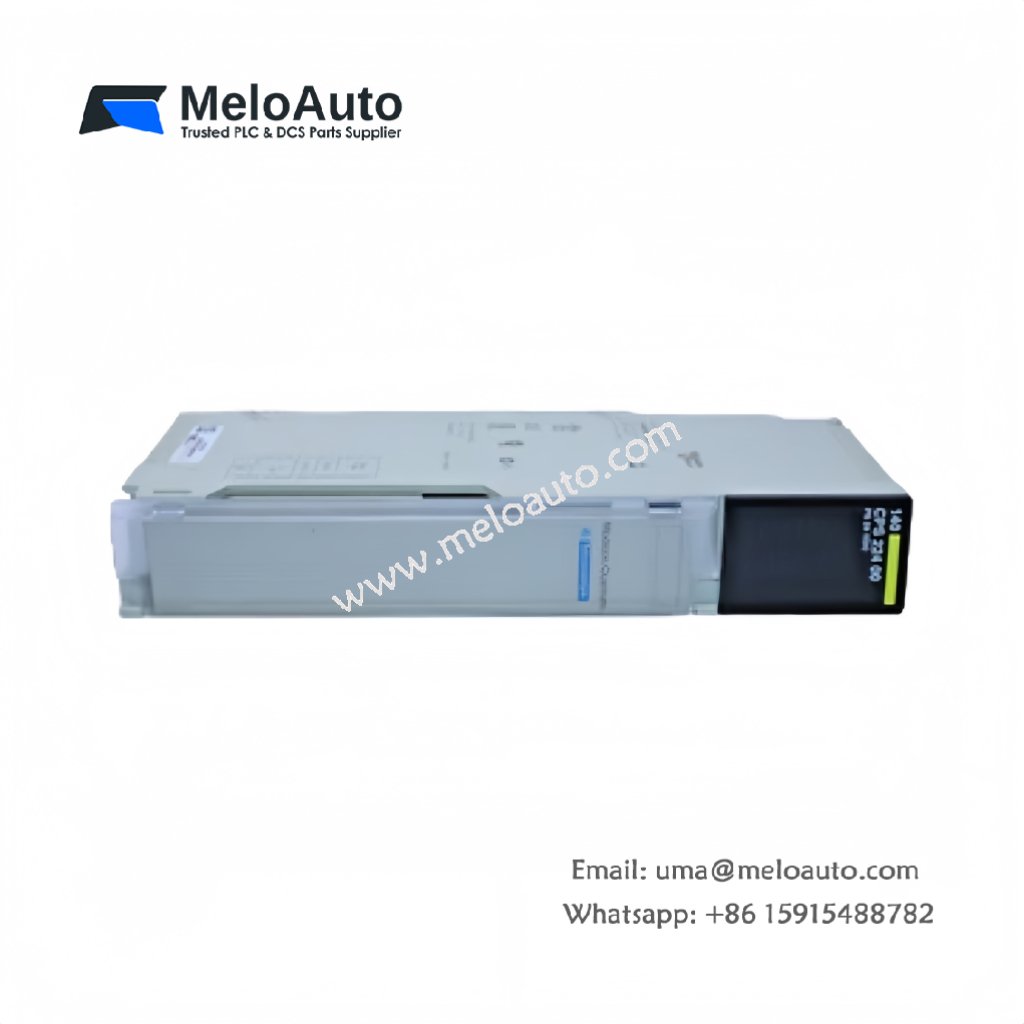

Schneider 140CPS22400 Power Supply Module

Overview

The Schneider 140CPS22400 is a high-performance power supply module from the Modicon Quantum series. Designed for demanding industrial automation applications, it operates efficiently with a 24 V DC input, supporting a wide input voltage range from 20 V to 30 V. This module ensures reliable power delivery while protecting sensitive equipment with its internal overvoltage protection mechanism.

Key Features

Manufacturer: Schneider Electric
Model Number: 140CPS22400
Product Type: Power Supply Module
Product Line: Modicon Quantum
Part Number: 140CPS22400
Weight: 0.65 kg (1.43 lbs)
CE Marking: Yes
Status: In Stock

Technical Specifications

Specification	Details
Input Voltage	24 V DC (Range: 20-30 V)
Input Current	3800 mA
Output Voltage	5.1 V DC
Output Current	8 A (Redundant)
Power Dissipation	6 + (1.8 x Iout) (where Iout is in A)
Overvoltage Protection	Internal
Fuse Rating	5 A, slow-blow
Power Supply Duration	Max input power interruption: 100 ms
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 85°C
Relative Humidity	95% non-condensing
Alarm Output	1 NC 6 A 220 V power supply fault
Local Signaling	1 LED (green, PWR OK)

Performance and Reliability

The 140CPS22400 power supply module is designed to provide continuous and stable power to Modicon Quantum systems. It features a 5.1 V DC output and delivers an 8 A redundant output current, ensuring a constant supply even during peak demands. The module’s internal overvoltage protection and slow-blow fuse provide enhanced safety, protecting the system from potential power surges.

With a 3800 mA input current, it efficiently powers industrial automation equipment while maintaining energy efficiency. The module’s inrush current is 14 A at 20 V and 25 A at 24 V, which makes it ideal for heavy-duty applications requiring immediate power stability.

Environmental and Operational Conditions

Operating Temperature: 0°C to 60°C
Storage Temperature: -40°C to 85°C
Relative Humidity: 95% without condensation
Operating Altitude: Up to 5000 meters
Electromagnetic and Electrostatic Protection:
- Electrostatic discharge resistance: 4 kV (contact), 8 kV (air)
- Electromagnetic field resistance: 9.14 V/m (10 V/m) 80-2000 MHz

The 140CPS22400 is designed to operate in diverse industrial environments, making it a reliable choice for a variety of applications. Whether in extreme temperatures or in challenging electrical environments, this power supply module ensures consistent performance.

Applications

Industrial Automation: Ideal for powering Modicon Quantum systems in control cabinets and automation networks.
Process Control Systems: Supports uninterrupted operation of critical control equipment in manufacturing and processing environments.
Heavy Machinery: Provides reliable power for machinery and equipment that demands high energy efficiency and low downtime.
