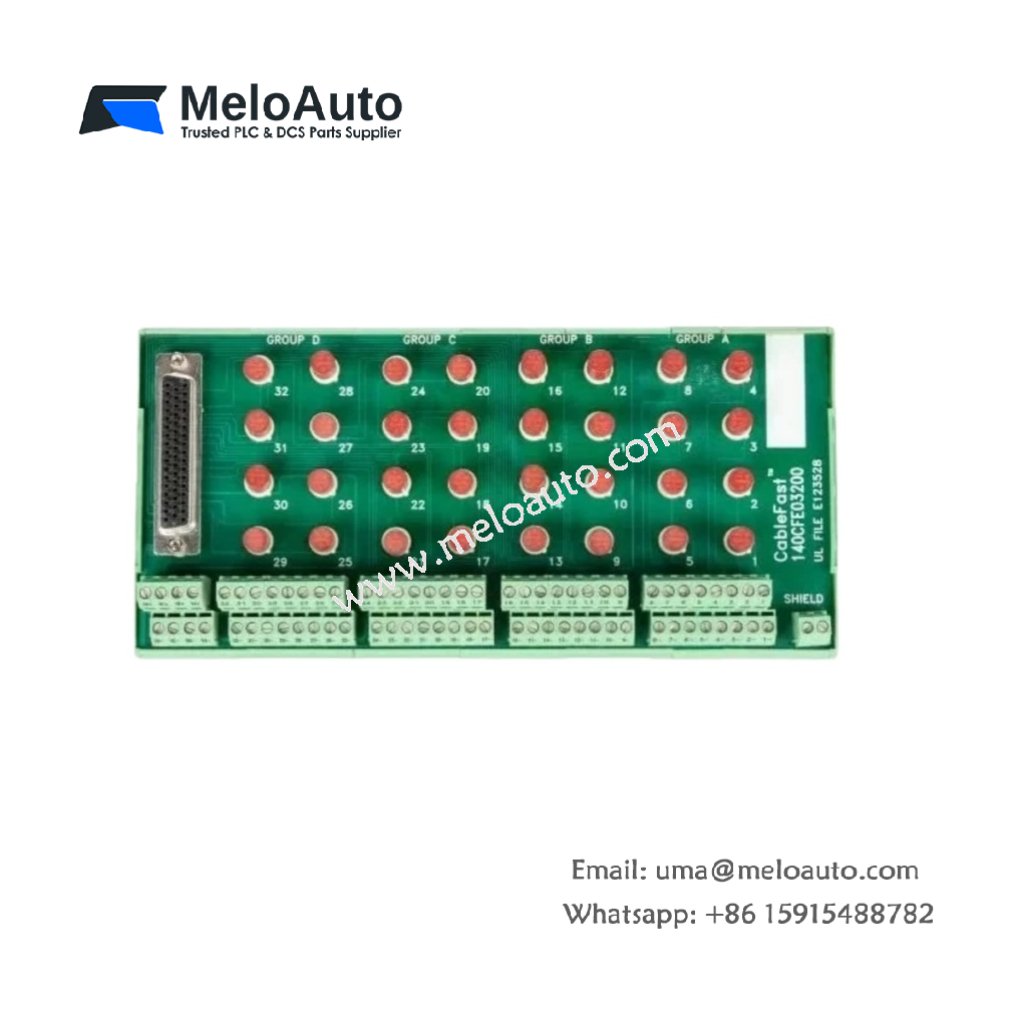

Schneider 140CFE03200 32-Point Digital Output Block

Overview

The Schneider 140CFE03200 is a 32-point digital output block designed for industrial applications that require reliable and safe output control. Operating at a 24 V DC voltage, this module provides fused outputs that each handle up to 0.5 A, with a total current capacity of 16 A. It supports communication through Modbus or Profibus protocols, making it highly versatile.

Each output point includes resettable ceramic fuses, which enhance safety and minimize downtime during faults. Moreover, the module is compact and easy to install, with flexible mounting options like DIN rail mounting. This feature allows you to integrate it quickly into your control systems.

Key Features

Manufacturer: Schneider Electric
Product Type: Digital Output Block
Product Line: Accessories
Part Number: 140CFE03200
Communication Interfaces: Modbus, Profibus
Voltage Rating: 24 V DC
Output Points: 32
Current Rating per Output: 0.5 A
Total Current Rating: 16 A
Fuse Type: Resettable Ceramic Fuses
Fuse Rating: 0.8 A per point
Temperature Range: -10°C to 60°C
Protection Class: IP20
Mounting Type: DIN Rail Mountable
Weight: 0.45 kg (1.00 lbs)

Technical Specifications

Specification	Details
Part Number	140CFE03200
Manufacturer	Schneider Electric
Product Type	Digital Output Block
Voltage Rating	24 V DC
Number of Outputs	32
Current Rating per Output	0.5 A
Total Current Rating	16 A
Fuse Type	Resettable Ceramic Fuses
Fuse Rating	0.8 A per point
Temperature Range	-10°C to 60°C
Protection Class	IP20
Mounting Type	DIN Rail Mountable
Communication Interface	Modbus, Profibus
Weight	0.45 kg (1.00 lbs)

Description

The Schneider 140CFE03200 is designed to offer robust and reliable output control in demanding environments. With 32 fused digital outputs, this module ensures safe and efficient control of various industrial tasks. Each output can manage up to 0.5 A, which makes it suitable for numerous applications.

This module operates at 24 V DC, providing the necessary power for control tasks in typical industrial settings. The built-in resettable ceramic fuses offer crucial protection, ensuring the system remains operational even when a fault occurs. The fuse rating of 0.8 A per point helps protect each output from overloads, and the resettable feature minimizes downtime.

The 140CFE03200 also provides an excellent temperature tolerance, with an operational range between -10°C to 60°C. This temperature range gives the module the flexibility to function in various environments, from industrial plants to automation setups. Additionally, the IP20 protection ensures the module is resistant to dust, making it suitable for a broad range of industrial applications.

Mounting the unit is straightforward, thanks to the DIN rail design. The module is compact, with a total weight of only 0.45 kg, making it easy to handle during installation. In addition, it supports Modbus and Profibus communication, making it compatible with various industrial control systems.

Applications

The 140CFE03200 is ideal for controlling digital outputs in automated machinery, manufacturing processes, and industrial control systems. It is particularly beneficial in environments where reliable and secure output control is necessary.

Why Choose the Schneider 140CFE03200?

Enhanced Safety: Each output includes resettable ceramic fuses that protect against faults and minimize maintenance needs.
Reliable Communication: The module supports both Modbus and Profibus communication protocols for seamless integration.
Wide Operating Temperature: The module operates between -10°C and 60°C, making it suitable for diverse applications.
Easy Installation: It mounts effortlessly on DIN rails, reducing installation time and complexity.
Compact and Durable: Weighing only 0.45 kg, it combines a lightweight design with solid performance.
