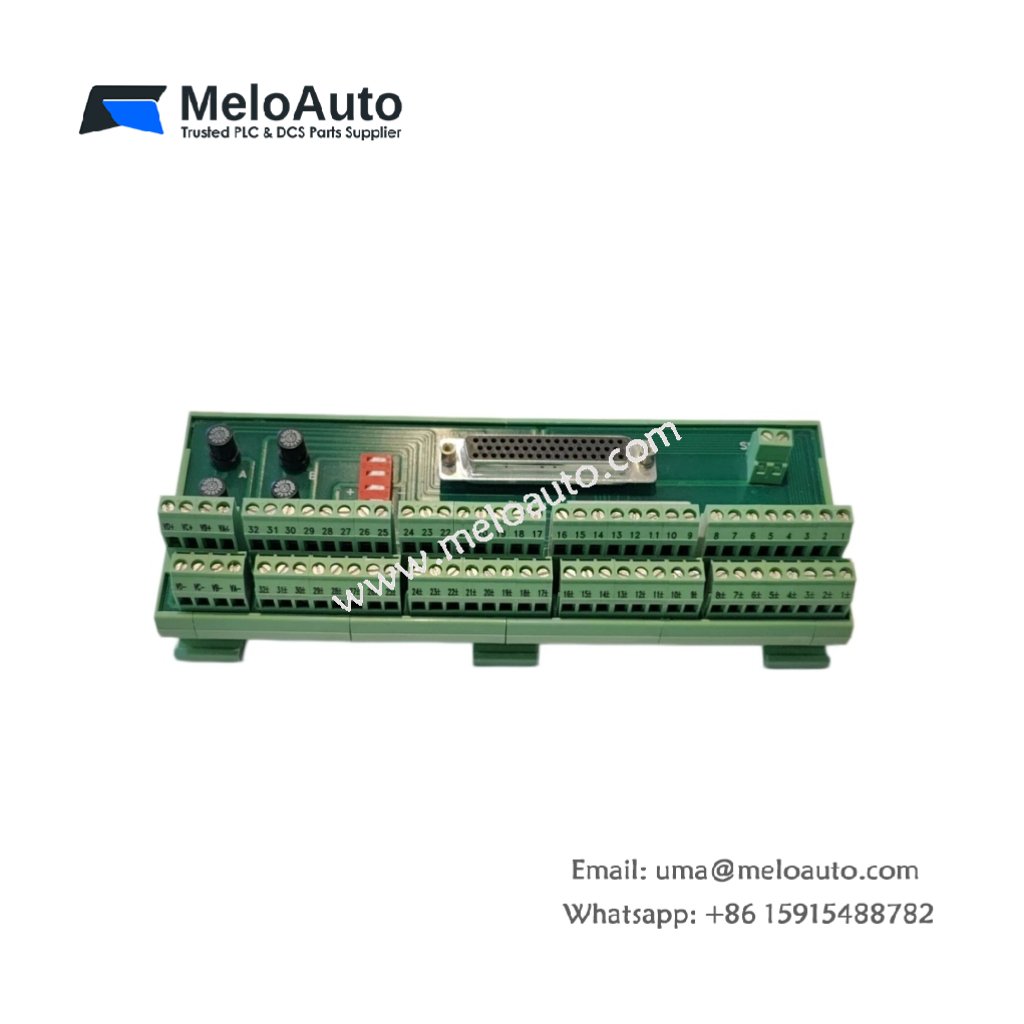

Schneider 140CFC03200 TAL Block for Quantum PLC Systems

The Schneider 140CFC03200 serves as a termination assembly block for Quantum I/O modules. You can mount this unit directly onto a DIN rail inside the control cabinet. It simplifies field wiring connections for discrete and analog signals. This block suits factory automation and process control applications.

Technical Specifications and Hardware Layout

The Schneider 140CFC03200 measures 125 mm in height. Its width reaches 95 mm, and the depth equals 42 mm. The Schneider 140CFC03200 weighs approximately 0.28 kilograms. A single internal PCB holds all termination and signal conditioning circuits. The block contains no energy storage capacitors or batteries. Two 20-pin ribbon connectors interface with the Quantum I/O module. One 50-pin terminal block handles all field wiring connections. Four green LEDs display power and communication status.

Termination Specifications and Compatibility

The Schneider 140CFC03200 accepts wiring from up to 32 field devices. It works with Quantum discrete and analog I/O modules seamlessly. Each terminal accepts solid or stranded wires from 0.2 mm² to 1.5 mm². Consequently, this block reduces wiring time and installation errors. The block includes labeled terminals for easy channel identification. A grounding terminal connects the shield wire for noise reduction. The TAL block requires no external power supply for operation.

Installation and Practical Guidelines

You must mount the Schneider 140CFC03200 on a DIN rail using the integral clips. Transitioning to wiring, strip 7 mm of insulation from each wire end. Insert the wire into the spring-clamp terminal until it locks firmly. Connect the ribbon cables to the corresponding Quantum I/O module. Four front LEDs show power and module communication status. The operating temperature range spans from 0°C to 60°C reliably.
