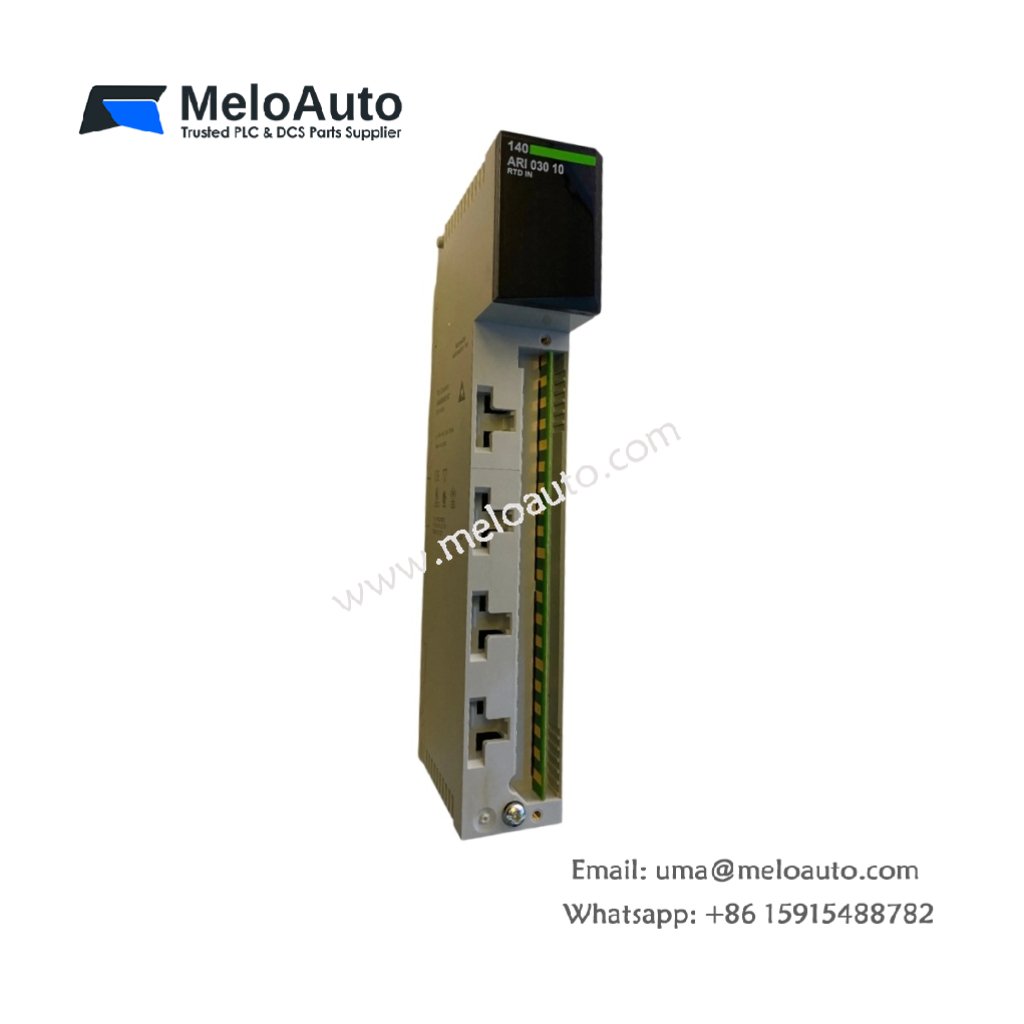

Schneider 140ARI03010C Analog Input Module

The Schneider 140ARI03010C Analog Input Module is engineered to deliver high-accuracy measurements for your automation system. Designed for use in industrial applications, this module features superior resolution and precision, making it ideal for demanding control and monitoring tasks.

Key Features of the Schneider 140ARI03010C Analog Input Module

The Schneider 140ARI03010C offers excellent performance and flexibility in various automation systems:

High Analog Input Resolution: The module provides a 13-bit resolution for accurate signal conversion.
Input Impedance: With an impedance greater than 10 MΩ, it ensures minimal signal loss and high reliability.
Absolute Accuracy Error: The module delivers ±0.01% full scale accuracy, ensuring precision even in critical applications.
Linearity Error: The module features a ±0.5°C error margin at 25°C, minimizing errors in measurement.
Accuracy Drift: Temperature-induced accuracy drift is ±0.5°C at 77°F (25°C) and ±0.9°C between 32°F and 140°F (0°C to 60°C).
Isolation Between Channels and Bus: Features 1780 V AC isolation at 47 to 63 Hz for secure data transmission.
Fast Update Time: Offers a 1200 ms update time for 3-wire connections, ensuring quick and reliable data updates.
Fault Detection: The module includes broken wire detection and overtaking scale features to identify system issues quickly.

Technical Specifications

Feature	Specification
Model	140ARI03010C
Type	Analog Input Module
Analog Input Resolution	13 bits
Input Impedance	≥10 MΩ
Absolute Accuracy Error	±0.01% full scale
Linearity Error	±0.5°C at 25°C
Accuracy Drift (Temperature)	±0.5°C at 77°F (25°C), ±0.9°C (32°F to 140°F)
Isolation Between Channels and Bus	1780 V AC (47–63 Hz)
Isolation Between Channels	2500 V DC for 60 seconds
Update Time	1200 ms (3 wires), 640 ms (2/4 wires)
Fault Type	Broken wire, overtaking scale

Why Choose the Schneider 140ARI03010C Analog Input Module?

The Schneider 140ARI03010C provides reliable and precise measurements that are essential in industrial automation:

Enhanced Accuracy: With 13-bit resolution and minimal linearity error, this module ensures precision in measurement, even in fluctuating conditions.
Reliable Isolation: The 1780 V AC isolation prevents electrical interference, ensuring the module operates safely in complex environments.
Wide Temperature Range: It operates effectively across a wide temperature range, with accuracy drift of ±0.9°C from 32°F to 140°F (0°C to 60°C), making it versatile for diverse industrial applications.
Quick Updates: With an update time as low as 640 ms (for 2/4-wire configurations), the module can support high-speed data collection and fast-response systems.

Applications of the Schneider 140ARI03010C Analog Input Module

The Schneider 140ARI03010C is ideal for a wide range of automation tasks:

Process Control: This module is perfect for applications where precise and reliable analog signals are essential for controlling industrial processes.
Manufacturing Automation: It allows for detailed monitoring and control, improving efficiency and ensuring safety across factory floors.
Energy Management: Suitable for measuring and monitoring energy usage in real-time, helping industries optimize energy consumption.
HVAC Systems: The module is excellent for controlling temperature, humidity, and air quality in building automation systems.
