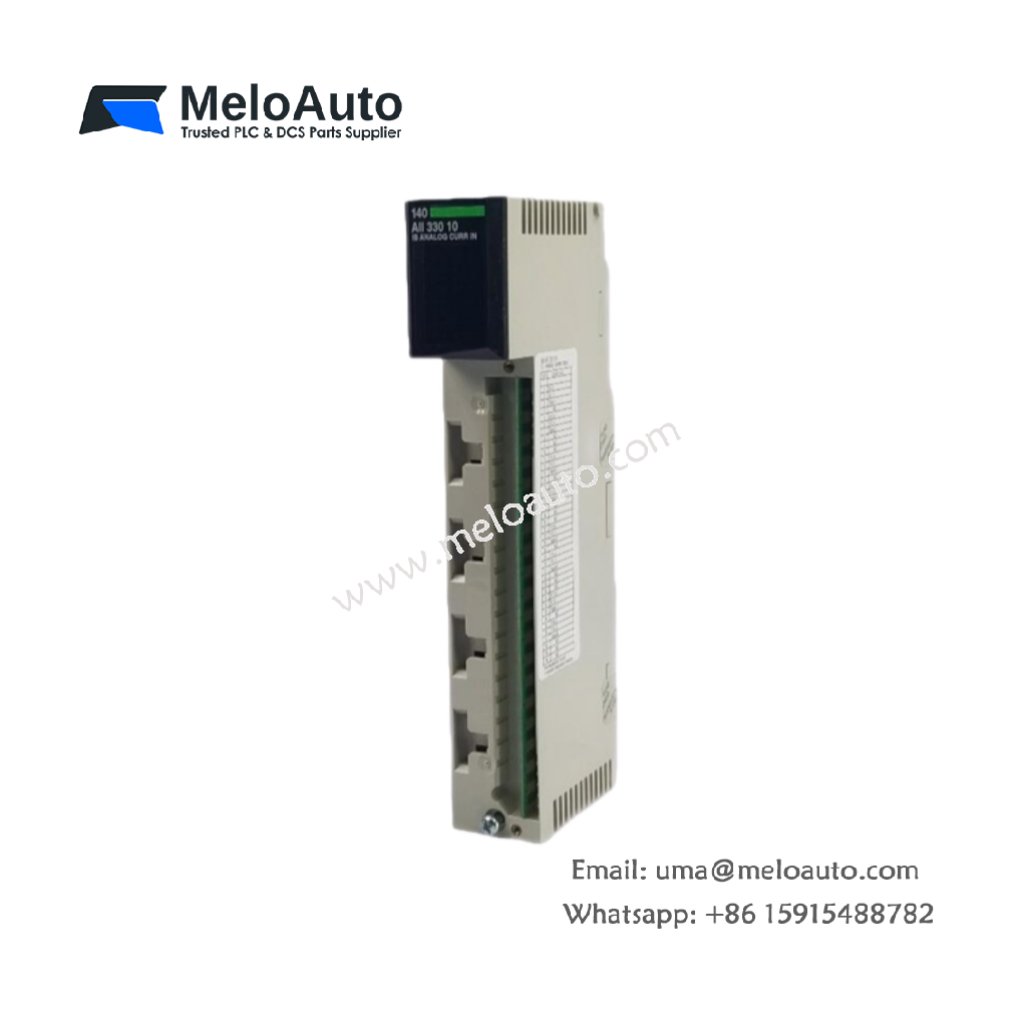

Schneider 140AII33010 Current Input Module

Overview

The Schneider 140AII33010 is a highly reliable current input module designed for the Modicon Quantum series. With the capacity to handle up to 8 inputs, this module provides broad compatibility and is ideal for industrial applications that require precise current monitoring. It operates across a wide range of input signals, ensuring versatility and efficiency in demanding environments.

Key Features

Supports 8 Inputs: Processes up to 8 individual inputs, allowing flexibility in industrial control systems.
Wide Input Range: Compatible with 0-20 mA, 0-25 mA, and 4-20 mA input signals, catering to a variety of applications.
Maximum Input Protection: Internally limited to 25 mA, preventing overcurrent damage.
Compact and Lightweight: Weighing only 0.91 kg (2.00 lbs), it is easy to install and integrate.
Efficient Power Consumption: Consumes just 7.5 W, ensuring low energy consumption while maintaining performance.
Reliable Temperature Range: Operates effectively within the temperature range of 0°C to 60°C, suitable for diverse industrial conditions.
Internal Fuse for Protection: Safeguards against electrical faults, enhancing the module’s durability.
High Input Impedance: Features an impedance of 100 Ohm ± 0.1%, ensuring precise measurements and control.
Humidity Tolerance: Performs reliably in environments with relative humidity from 5% to 95%, without condensation.

Technical Specifications

Specification	Value
Model	140AII33010
Manufacturer	Schneider Electric
Product Type	Current Input Module
Product Line	Modicon Quantum
Part Number	140AII33010
EAN	3595860025616
Number of Inputs	8
Input Range	0-20 mA, 0-25 mA, 4-20 mA
Power Dissipation	7.5 W
Maximum Input	25 mA (internally limited)
Operating Temperature	0°C to 60°C
Protection Type	Internal Fuse
Input Impedance	100 Ohm ± 0.1%
Relative Humidity	5% to 95% (non-condensing)
Weight	0.91 kg (2.00 lbs)

Applications

The Schneider 140AII33010 is designed for a variety of industrial applications, including:

Industrial Control Systems: Used for precise current monitoring and control.
Process Monitoring: Ideal for chemical, oil, and gas industries where accurate measurement of current signals is crucial.
Automation Systems: Perfect for integrating with the Modicon Quantum platform in industrial automation setups.
Energy Management: Ensures efficient and reliable current input processing for power distribution systems.

Conclusion

The Schneider 140AII33010 current input module offers versatile, precise, and reliable performance. With its wide input range, protection features, and efficient design, it is an excellent choice for a variety of Modicon Quantum control systems in harsh industrial environments.
