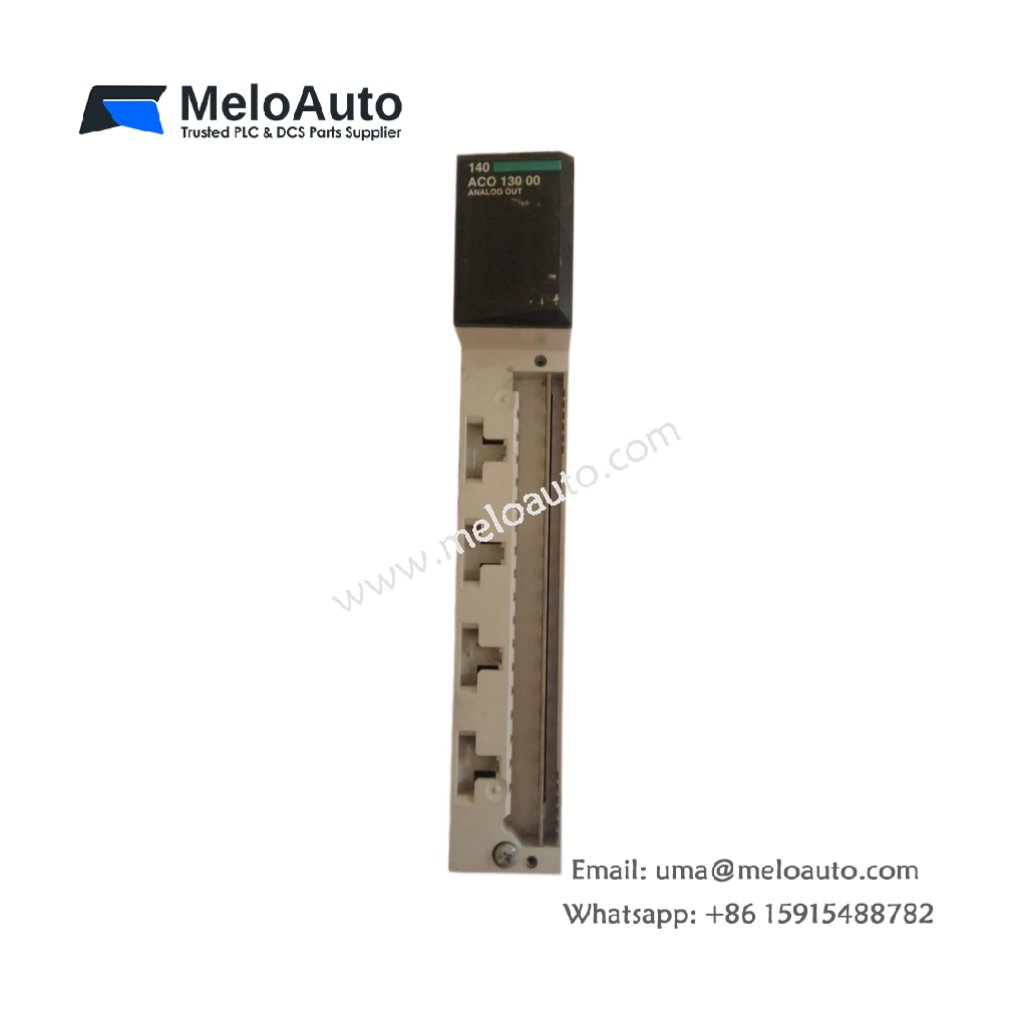

The Schneider 140ACO13000C is a top-tier analog output module, designed to meet the stringent demands of modern industrial automation systems. This module delivers precise, reliable analog signals to control various devices in your application.
Key Features
-
Manufacturer: Schneider Electric
-
Model: 140ACO13000C
-
Product Type: Analog Output Module
-
Category: Industrial Automation
Technical Specifications
The Schneider 140ACO13000C provides versatile analog output for controlling equipment such as actuators, motors, and other devices. Below are the key specifications:
| Specification | Details |
|---|---|
| Module Type | Analog Output Module |
| Part Number | 140ACO13000C |
| Series | Modicon M340 |
| Output Channels | 4 Channels |
| Output Type | Voltage / Current |
| Voltage Output Range | 0 to 10 V DC |
| Current Output Range | 0 to 20 mA |
| Resolution | 12 bits |
| Output Accuracy | ±0.1% of full scale |
| Output Impedance | 1 kΩ (voltage), 500 Ω (current) |
| Power Consumption | 5 V DC, 70 mA |
| Operating Temperature | -20°C to +70°C |
| Mounting | DIN Rail Mountable |
| Dimensions | 90 mm x 90 mm x 60 mm (L x W x H) |
| Weight | 0.25 kg (0.55 lbs) |
| Communication Interface | Modbus, CANopen, or Ethernet |
Product Description
The Schneider 140ACO13000C analog output module supports both voltage and current outputs, making it suitable for a broad range of industrial control applications. With four output channels, the module can easily interface with various actuators and control systems.
This module provides a 12-bit resolution, ensuring that output signals are highly accurate and stable. It delivers 0-10 V DC and 0-20 mA outputs with precision. The DIN rail mounting feature simplifies installation, while the -20°C to +70°C temperature range guarantees reliable performance even in harsh environments.
Designed for flexibility, the 140ACO13000C integrates smoothly with other Schneider Electric components, and it also supports Modbus, CANopen, and Ethernet communication protocols.
Benefits and Applications
-
Precise Control: With 12-bit resolution, the module delivers high accuracy for demanding applications.
-
Versatile Output: It offers both voltage (0-10V) and current (0-20mA) output ranges, making it adaptable for different types of equipment.
-
Reliable Performance: It operates efficiently in a -20°C to +70°C temperature range, ensuring consistent performance across varying conditions.
-
Quick Integration: Thanks to DIN rail mounting, installation is fast and straightforward.
Conclusion
In summary, the Schneider 140ACO13000C is a robust and adaptable solution for controlling analog devices in industrial environments. It offers high-resolution output, versatility, and easy integration with various systems. Whether you need to control actuators or motors, this module ensures optimal performance for your automation needs.
