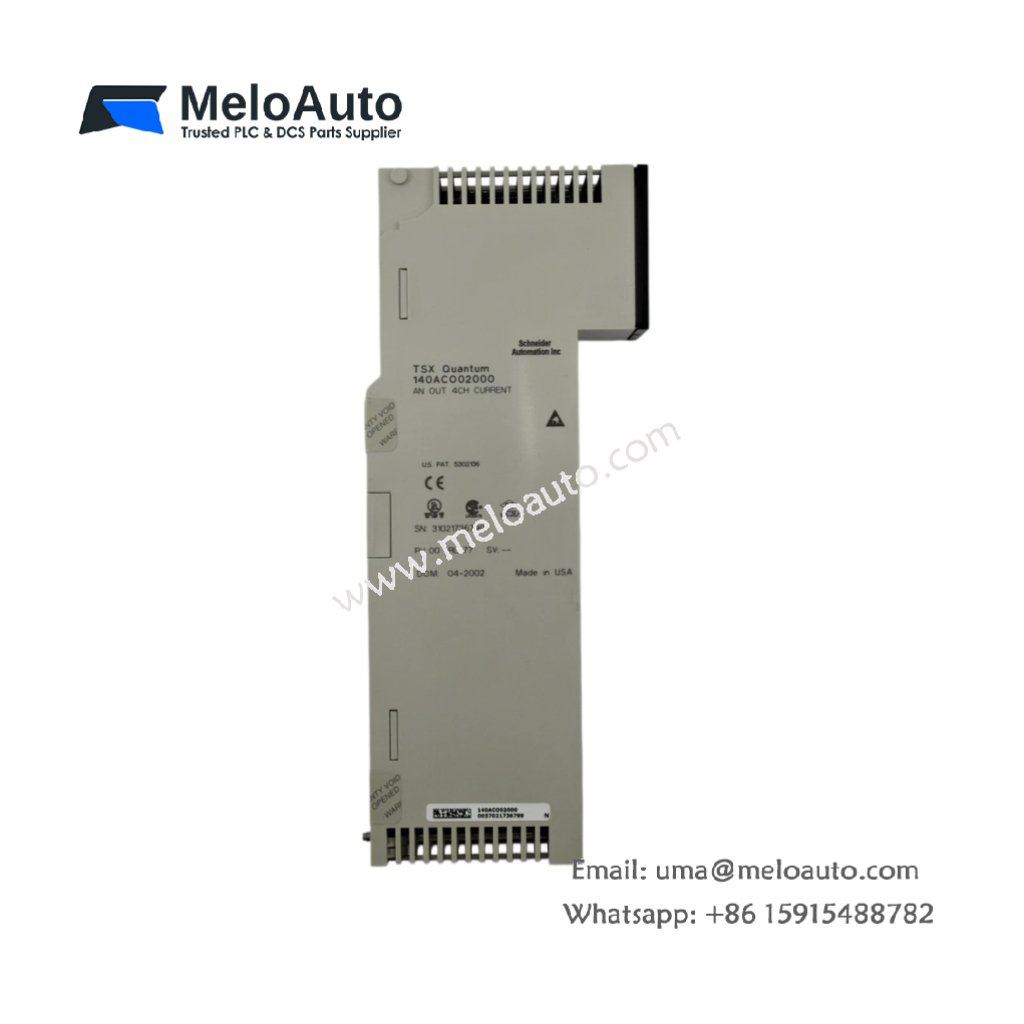

Schneider 140 ACO 020 00 Analog Output Module

The Schneider 140 ACO 020 00 is a highly reliable analog output module designed for industrial automation systems. It offers precise control and flexibility for output signals, ensuring seamless integration into Schneider Electric’s Modicon series control systems. This module is perfect for applications requiring high accuracy and reliability in signal processing.

Key Features and Specifications

Feature	Specification
Model	Schneider 140 ACO 020 00
Product Type	Analog Output Module
Manufacturer	Schneider Electric
Product Line	Modicon
Part Number	140 ACO 020 00
Number of Outputs	2 outputs
Output Range	0 to 10 V or 4 to 20 mA (depending on configuration)
Resolution	16 bits
Accuracy	±0.1% of full scale
Load Impedance	> 10 kΩ (voltage) or ≤ 500 Ω (current)
Power Supply	24 VDC
Current Consumption	50 mA
Operating Temperature	0°C to 60°C
Storage Temperature	-20°C to 85°C
Humidity Range	5% to 95% RH (non-condensing)
Mounting Type	DIN Rail Mounting
Dimensions (L x W x D)	90mm x 130mm x 105mm
Weight	0.35 kg
Compliance	CE Certified
Interface	Modbus RTU

High-Precision Output Control

The Schneider provides outstanding control over analog output signals. It supports both 0 to 10 V and 4 to 20 mA output ranges. This module offers a 16-bit resolution, delivering precise output with an accuracy of ±0.1%. It guarantees dependable signal transmission in industrial control systems, improving the reliability of your automation processes.

Seamless Integration with Modicon Systems

Designed to integrate flawlessly with Schneider Electric’s Modicon series, the is perfect for various industrial applications. Whether you are controlling actuators or feedback systems, it provides the flexibility needed for a wide range of operations. Its Modbus RTU communication ensures efficient network integration, making it a reliable solution for industrial automation setups.

Robust and Reliable Performance

The Schneider 140 ACO 020 00 is built to withstand industrial environments. It performs efficiently in temperatures ranging from 0°C to 60°C and works reliably even in environments with up to 95% humidity. With CE certification, this module adheres to high-quality standards, ensuring robust performance and longevity in demanding conditions.

Energy-Efficient and Compact Design

This module features a compact design that is easy to integrate into tight spaces, with dimensions of 90mm x 130mm x 105mm. Despite its small size, the 140 ACO 020 00 offers powerful performance with low current consumption of just 50 mA, making it energy-efficient for long-term use in industrial applications.
