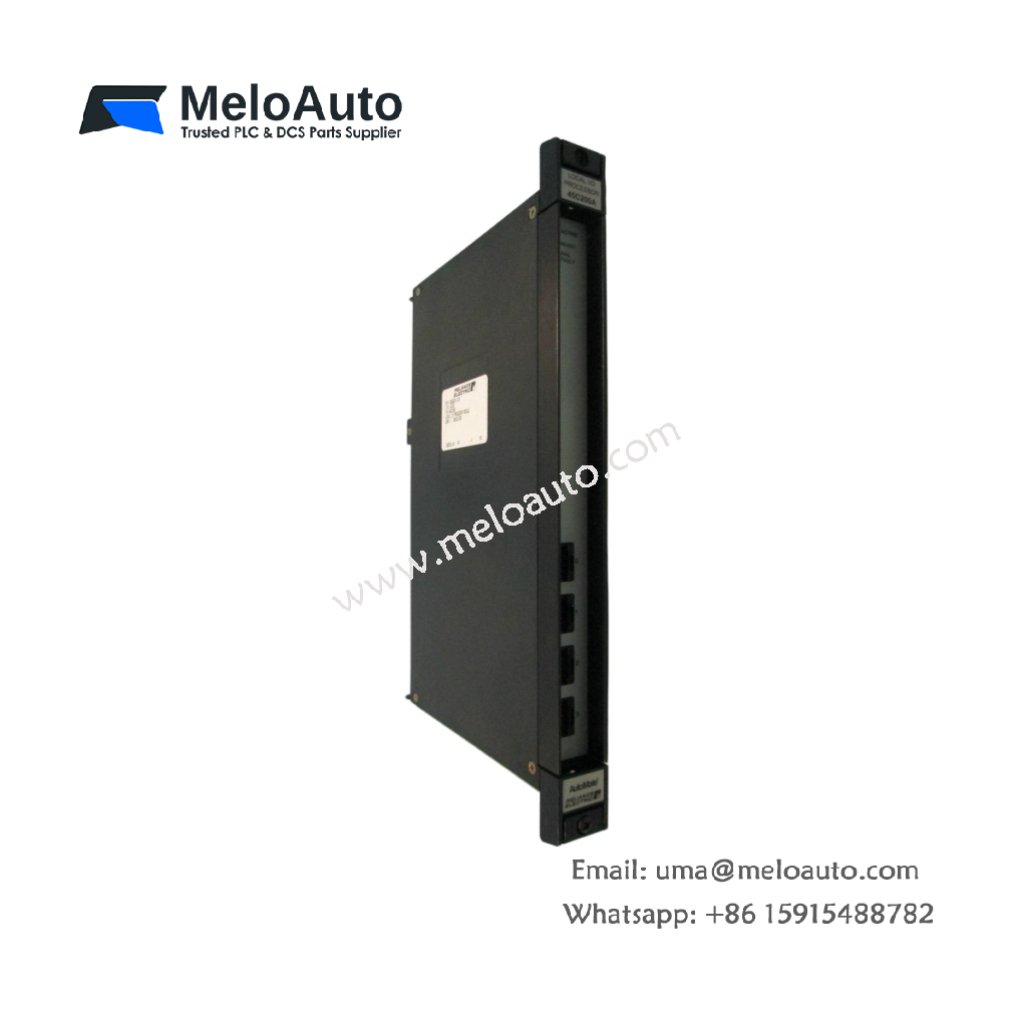

Reliance Electric 45C200 Local I/O Processor Module

Overview of the Reliance Electric 45C200 Local I/O Processor Module

The Reliance Electric 45C200 Local I/O Processor Module is designed for the AutoMate 30/40 system, offering a powerful solution for expanding I/O capabilities. It supports the connection of up to 256 digital I/O points, making it ideal for systems that require high input/output capacity. The Reliance Electric 45C200 ensures seamless communication and efficient data handling for industrial automation tasks, helping optimize system performance.

This module is engineered to work flawlessly with both master and remote I/O racks, offering flexible integration into various automation configurations.

Key Features and Benefits

High I/O Capacity: The Reliance Electric 45C200 can connect up to 256 digital I/O points, providing ample capacity for large automation systems.
Versatile Communication: It interfaces with four I/O rails or Local Heads, ensuring reliable communication across the system.
Data Handling: Utilizes a custom LSI chip for protocol and error checking, ensuring accurate data transmission and minimizing communication errors.
Easy Installation: With two front-facing mounting feet, the Reliance Electric 45C200 can be easily installed, reducing setup time and effort.
Reliable Compatibility: Fully compatible with both master and remote I/O racks, allowing for flexible system configuration.

Technical Specifications

The following technical specifications outline the key features of the Reliance Electric 45C200 Local I/O Processor Module:

Specification	Details
Model	Reliance Electric 45C200
Type	Local I/O Processor Module
I/O Capacity	Supports up to 256 digital I/O points
Communication	Interfaces with four I/O rails or Local Heads
Data Handling	Uses custom LSI chip for protocol and error checking
Ports	Four front-facing ports (0, 1, 2, 3)
Mounting	Two mounting feet for easy installation
Compatibility	Works with master and remote I/O racks
Dimensions	150 mm x 120 mm x 60 mm
Weight	0.6 kg
Power Supply	24V DC
Operating Temperature	-10°C to 60°C

Applications

The Reliance Electric 45C200 Local I/O Processor Module is ideal for applications that require reliable and high-capacity I/O handling. It is widely used in industrial automation, manufacturing, process control, and energy management systems. This module is particularly suitable for large-scale systems, where accurate data handling and efficient communication are essential.

The Reliance Electric 45C200 ensures that your automation system can manage complex I/O operations with ease, increasing overall efficiency and reducing potential system errors.

How to Integrate the Reliance Electric 45C200 Local I/O Processor Module

To integrate the Reliance Electric 45C200 into your automation system, connect the module to the system’s I/O rails or Local Heads. Ensure that the system’s power supply is 24V DC, and then mount the module using the provided mounting feet. Once installed, the Reliance Electric 45C200 enables seamless communication between I/O devices, optimizing overall system performance.
