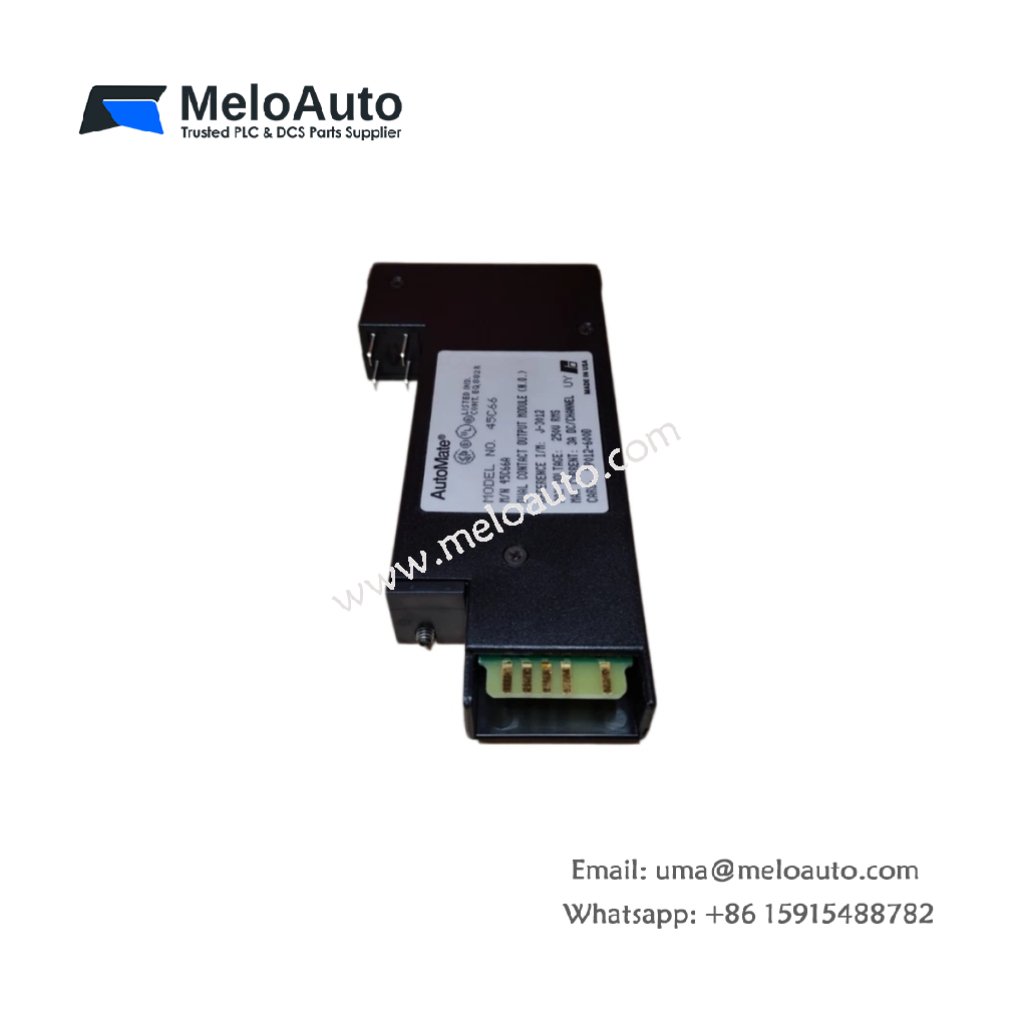

The Reliance 45C66 offers exceptional performance in industrial automation systems. This relay output module manages high-current loads with precision and ensures reliable operation in demanding environments. It provides individual channel isolation, which helps prevent electrical interference and guarantees stability in the system.
Key Features of the Reliance 45C66 Relay Output Module
- High-Current Output: The Reliance 45C66 supports up to 3A DC per channel. This capability ensures stable performance under heavy electrical loads.
- Individual Isolation: Each output channel enjoys individual isolation, which minimizes electrical interference and enhances system reliability.
- Wide Voltage Range: The module operates within a voltage range of 1 to 250V RMS and is rated for 250VAC, making it versatile enough for various industrial applications.
- Off-State Current: It maintains a maximum off-state current of 4.6 mA at 125V RMS, ensuring precise control over each output state.
Technical Specifications
| Specification | Value |
|---|---|
| Model | Reliance 45C66 |
| Output Current per Channel | 3A DC |
| Voltage Range | 1 to 250V RMS |
| Maximum Voltage Rating | 250VAC |
| Maximum Off-State Current | 4.6 mA at 125V RMS |
| Number of Channels | 8 (per module) |
| Isolation | Individual Channel Isolation |
| Weight | 500 g |
| Dimensions | 120mm x 90mm x 40mm |
Applications
The Reliance 45C66 module proves ideal for industrial automation systems. It offers a reliable, efficient, and stable way to manage outputs, whether the system requires simple control circuits or more complex automation setups.
About the Manufacturer
Reliance has earned a strong reputation in the automation industry for providing innovative, high-quality components. The Reliance 45C66 is one example of their commitment to delivering advanced, dependable products for industrial applications.
