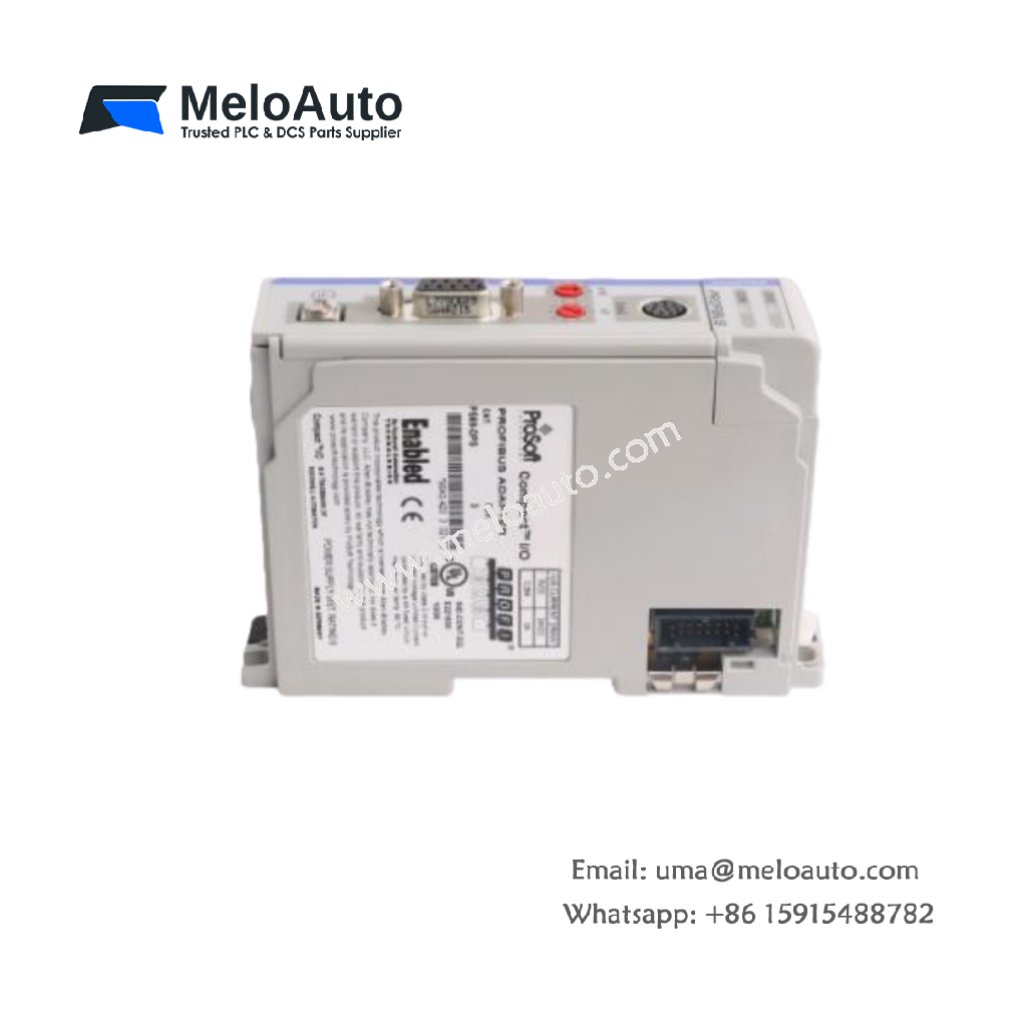

ProSoft PS69-DPS - PROFIBUS DP V1 Slave Interface Module

The ProSoft PS69-DPS is a PROFIBUS DP V1 Slave Interface Module, designed for use with CompactLogix and MicroLogix 1500 controllers. Manufactured by ProSoft Technologies, this module facilitates seamless communication between devices in industrial automation systems. It connects to PROFIBUS networks using RS-485 for data transmission at speeds of up to 12 Mbps.

Key Features:

PROFIBUS Compatibility: Supports PROFIBUS DPV0 and DPV1 communication protocols, enabling effective communication between devices.
Single Slot Module: Occupies only one slot in the system, offering a compact solution for industrial environments.
Data Transfer: Handles up to 244 bytes of input data and 244 bytes of output data.
Diagnostic Interface: Comes with an RS-232 PS/2 mini-DIN port for easy diagnostics, operating at a baud rate of 9600.
EC1-160P Processor: Features a built-in EC1-160P processor with integrated ASPC2, ensuring reliable operation and performance.

Technical Specifications:

Parameter	Value
Model	ProSoft PS69-DPS
Product Type	PROFIBUS DPV1 Slave Network Interface Module
Product Line	CompactLogix
Part Number	PS69-DPS
Weight	3.00 lbs (1.36 kg)
Slot	1
Power Supply Current Load	260 mA max @ 5 VDC
Power Supply Distance Rating	Six (6) modules from power supply
PROFIBUS Version	DP V0 / DP V1
Max. Number of Slaves	125 (excluding Master)
Data Transfer Rate (RS-485)	12 Mbps max
Input Data	244 Bytes max
Output Data	244 Bytes max
Operating Temperature	0°C to 60°C (32°F to 140°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	5% to 95% (non-condensing)
Diagnostic Interface Baud Rate	9600 Baud
Interface Port	RS-232 PS/2 mini-DIN

Additional Features:

Flexible Connectivity: The PS69-DPS can handle up to 32 PROFIBUS devices in a single segment, with 31 PS69-DPS modules allowed per segment.
LED Indicators: It includes built-in LED status indicators for communication and module status, ensuring easy monitoring of system health.
Slot-Based Installation: Designed for use with 1796 backplanes, this module integrates seamlessly into existing systems.
Robust Temperature and Humidity Tolerance: With an operational temperature range of 0°C to 60°C and tolerance for 5% to 95% humidity, the module is suitable for diverse industrial environments.

Applications:

The ProSoft PS69-DPS is ideal for applications where PROFIBUS communication is required. It supports data transmission and control across various industrial processes, including:

Industrial Automation Systems: Facilitates communication between CompactLogix and MicroLogix controllers and PROFIBUS-enabled devices.
Data Transfer: Suitable for transferring CPU data across multiple systems as I/O addresses, supporting both I/O control and messaging capabilities.
