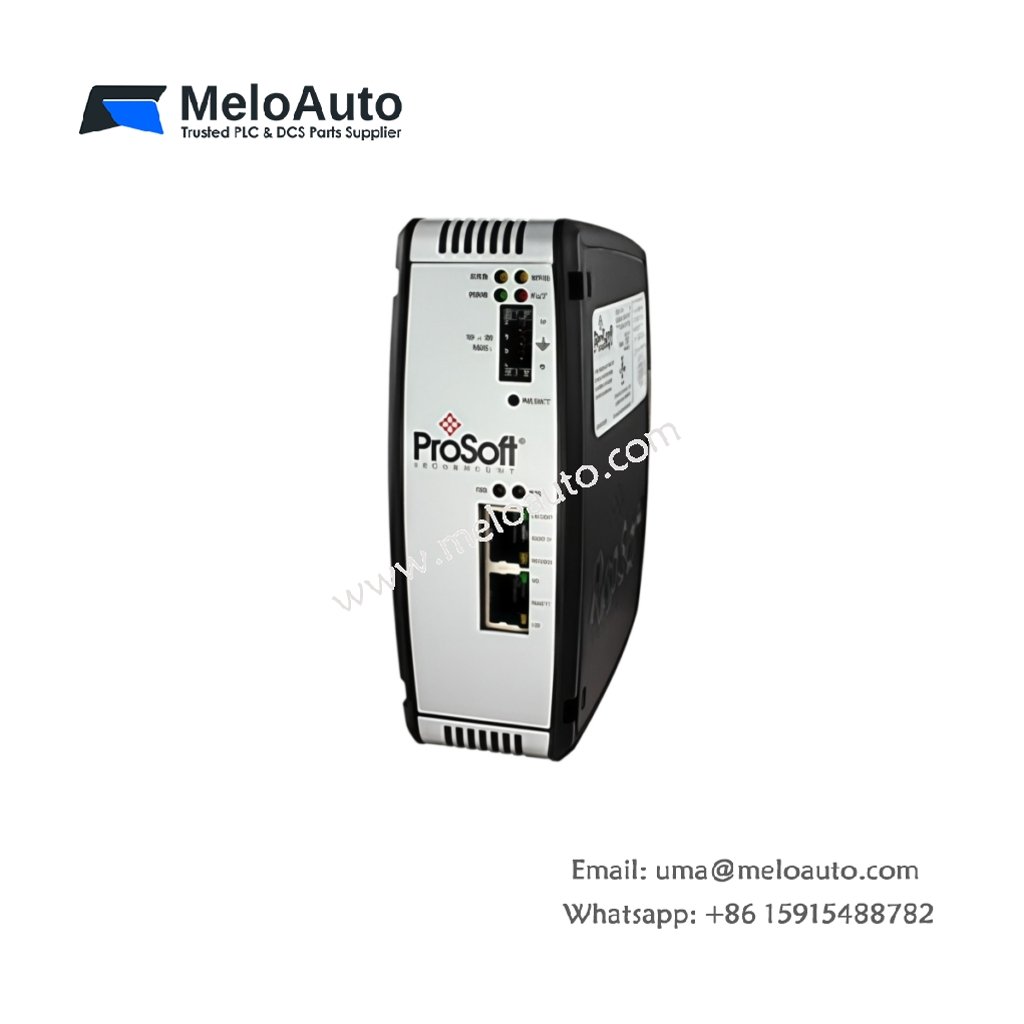

EtherNet/IP to PROFINET Control with the PLX82-EIP-PNC
The PLX82-EIP-PNC connects EtherNet/IP controllers to PROFINET IO controllers as a stand-alone DIN-rail unit. This gateway exchanges process data between Rockwell and Siemens platforms. System integrators therefore apply it where mixed-vendor lines require direct controller-to-controller communication. Its compact housing mounts inside standard enclosures without extra brackets.
Detailed Technical Parameters
Protocol conversion defines the PLX82-EIP-PNC, because the processor board maps data tags between EtherNet/IP frames and PROFINET IO cycles. Dual Ethernet ports support daisy-chain wiring across cabinet layouts. Meanwhile, the gateway handles both client and server roles on either protocol side. Review the essential specifications in the table below.
| Parameter | Specification |
|---|---|
| Function | EtherNet/IP to PROFINET IO stand-alone gateway |
| Network protocols | EtherNet/IP and PROFINET IO controller |
| Ethernet ports | Two switched 10/100 Mbps ports |
| Dimensions (W × H × D) | 90 × 140 × 115 mm |
| Weight | Approximately 0.9 kg |
| Interface | Dual Ethernet ports plus configuration port |
| Component count | Processor board plus dual network interface stage |
| Energy storage | Local decoupling capacitor array |
| Operating temperature | -25 °C to 70 °C |
Integration into Control Systems
The PLX82-EIP-PNC snaps onto a DIN rail and connects through standard Ethernet cables. Commissioning engineers configure tag mapping through the setup software. Consequently, cross-vendor links return to service quickly after gateway replacement. The device converts protocol frames within milliseconds of each scan cycle. Furthermore, the metal housing resists interference from drives and power equipment nearby.
Why Plants Choose This Gateway
Many facilities still operate mixed controller environments for their proven process reliability. Hence, the PLX82-EIP-PNC serves as a dependable spare for keeping cross-vendor links online. Its standardized DIN-rail format simplifies stock management across multiple sites. In addition, the stand-alone design removes the need for chassis slots. This gateway keeps production data flowing and schedules on track.
