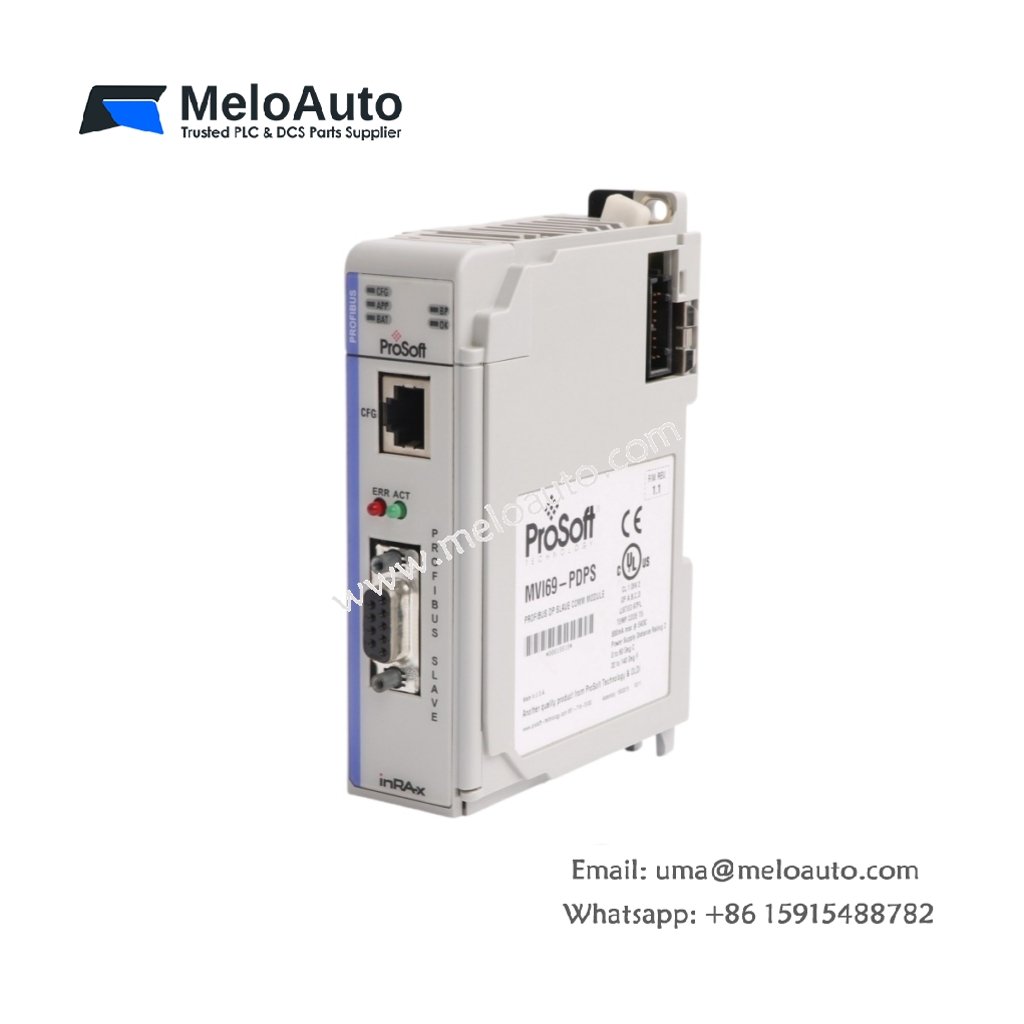

PROFIBUS Slave Links with the MVI69-PDPS
The MVI69-PDPS adds PROFIBUS DP slave communication to Rockwell CompactLogix controllers. This module exchanges process data between the PLC and a PROFIBUS master station. System integrators therefore apply it when connecting CompactLogix racks to existing PROFIBUS networks. Its single-slot format fits standard CompactLogix chassis without extra adapters.
Detailed Technical Parameters
Slave functionality defines the MVI69-PDPS, because the module runs PROFIBUS DP slave services on dedicated firmware. The RS-485 port accepts standard PROFIBUS wiring through a DB9 connector. Meanwhile, the backplane interface exchanges input and output data with the CompactLogix processor. Review the essential specifications in the table below.
| Parameter | Specification |
|---|---|
| Function | PROFIBUS DP slave communication for CompactLogix |
| Network protocol | PROFIBUS DP slave |
| Serial port | One RS-485 PROFIBUS port with DB9 connector |
| Dimensions (W × H × D) | 40 × 130 × 110 mm |
| Weight | Approximately 0.3 kg |
| Interface | PROFIBUS DB9 port plus CompactLogix backplane connector |
| Component count | Communication processor board plus transceiver stage |
| Energy storage | Local decoupling capacitor array |
| Operating temperature | 0 °C to 60 °C |
Integration into Control Systems
The MVI69-PDPS fits into a standard CompactLogix slot and connects through the backplane connector. Commissioning engineers set the station address and configure I/O mapping through the setup software. Consequently, slave links return to service quickly after module replacement. The device responds to master polling within fixed cycle times. Furthermore, the metal faceplate shields the circuitry from interference in electrical rooms.
Why Plants Choose This Module
Many facilities still operate PROFIBUS networks for their proven field reliability. Hence, the MVI69-PDPS serves as a dependable spare for keeping slave links online. Its standardized slot format simplifies stock management across multiple sites. In addition, the compact design reduces panel space requirements inside cabinets. This module keeps process data flowing and production schedules on track.
