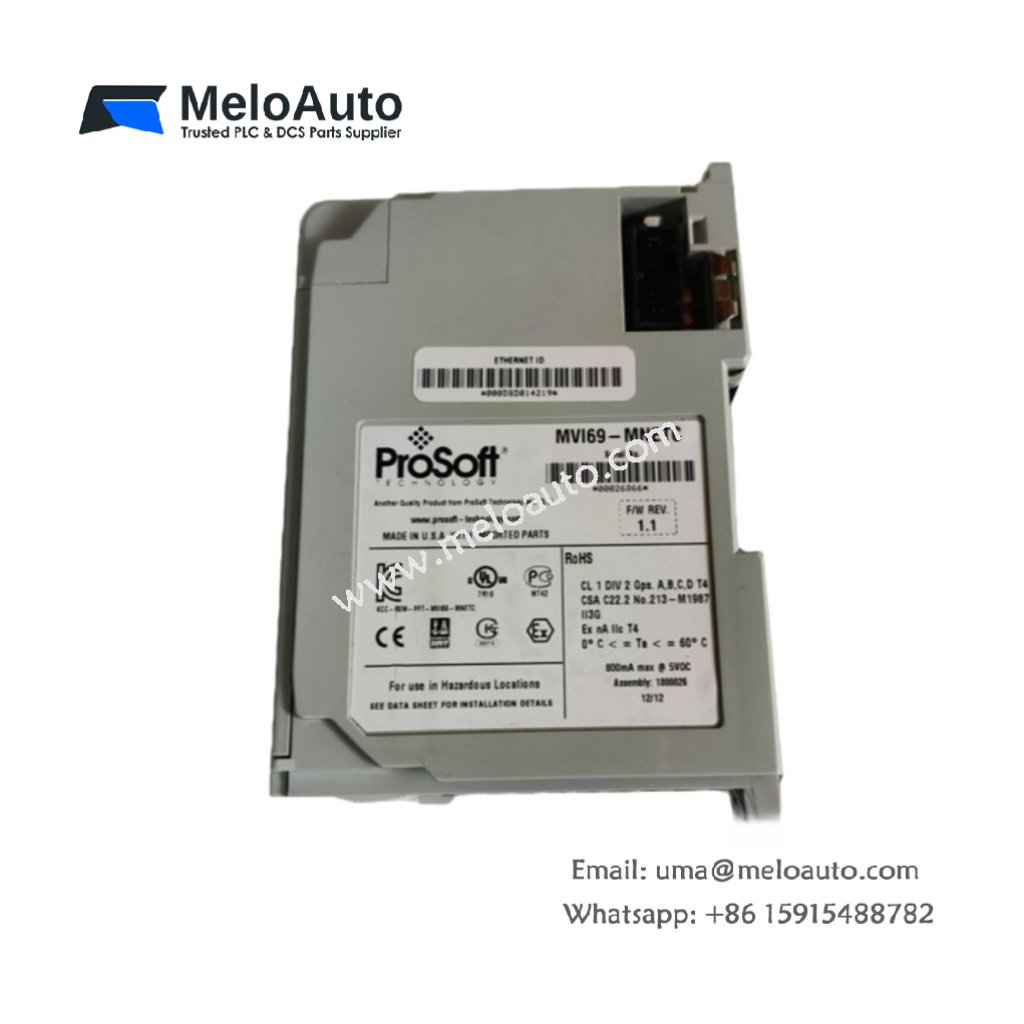

ProSoft MVI69-MNET Modbus TCP/IP Communication Module

Overview

The ProSoft MVI69-MNET is a high-performance Modbus TCP/IP communication module, designed to integrate seamlessly with Rockwell Automation CompactLogix and MicroLogix controllers. This module offers reliable data transfer via ladder logic, and it is ideal for applications requiring flexible communication between industrial systems. With a maximum of 5000 registers and up to 100 client commands, it supports various complex data-handling tasks in industrial automation systems.

The MVI69-MNET ensures smooth communication by utilizing the Modbus TCP/IP protocol, making it compatible with a wide range of Modbus devices. Whether you need to interface with remote I/O, sensors, or other Modbus-enabled devices, this module simplifies the connection process and enhances operational efficiency.

Key Features

• Modbus TCP/IP Protocol: Facilitates seamless communication with Modbus-compatible devices over Ethernet networks.
• Ladder Logic Data Transfer: Supports data transfer using ladder logic, offering flexibility for control system design.
• High Register Capacity: Handles up to 5000 registers, allowing for the management of large data sets in complex systems.
• Client Commands: Supports up to 100 client commands, ensuring efficient data handling and command execution.
• Compact Design: Requires only one free slot in the chassis for installation, making it easy to integrate into your existing system.
• Power Requirements: Draws a maximum of 800 mA at 5 VDC, ensuring efficient power consumption.

Technical Specifications

Applications

The MVI69-MNET module is highly versatile and suitable for various industrial applications, including:

• Manufacturing Automation: Enable real-time communication between PLCs and field devices like sensors, actuators, and HMIs.
• Oil and Gas: Facilitate remote monitoring and control of equipment, optimizing safety and operational efficiency.
• Power Generation: Monitor and control power generation systems by integrating Modbus devices.
• Food Processing: Integrate with production equipment to manage and track production processes and ensure system reliability.
• Water Treatment Plants: Enhance system communication, enabling the efficient operation of water treatment and distribution systems.

Installation Guidelines

To ensure the proper installation of the MVI69-MNET module, follow these steps:

1. Power Off the System: Before installing the module, ensure the system and all connected devices are powered off.
2. Slot Installation: Insert the module into the available slot in the CompactLogix or MicroLogix chassis.
3. Check Connections: Ensure that all connections are secure and correctly wired.
4. Follow Manufacturer Guidelines: Always refer to the manufacturer’s manual for detailed installation instructions and safety guidelines.
