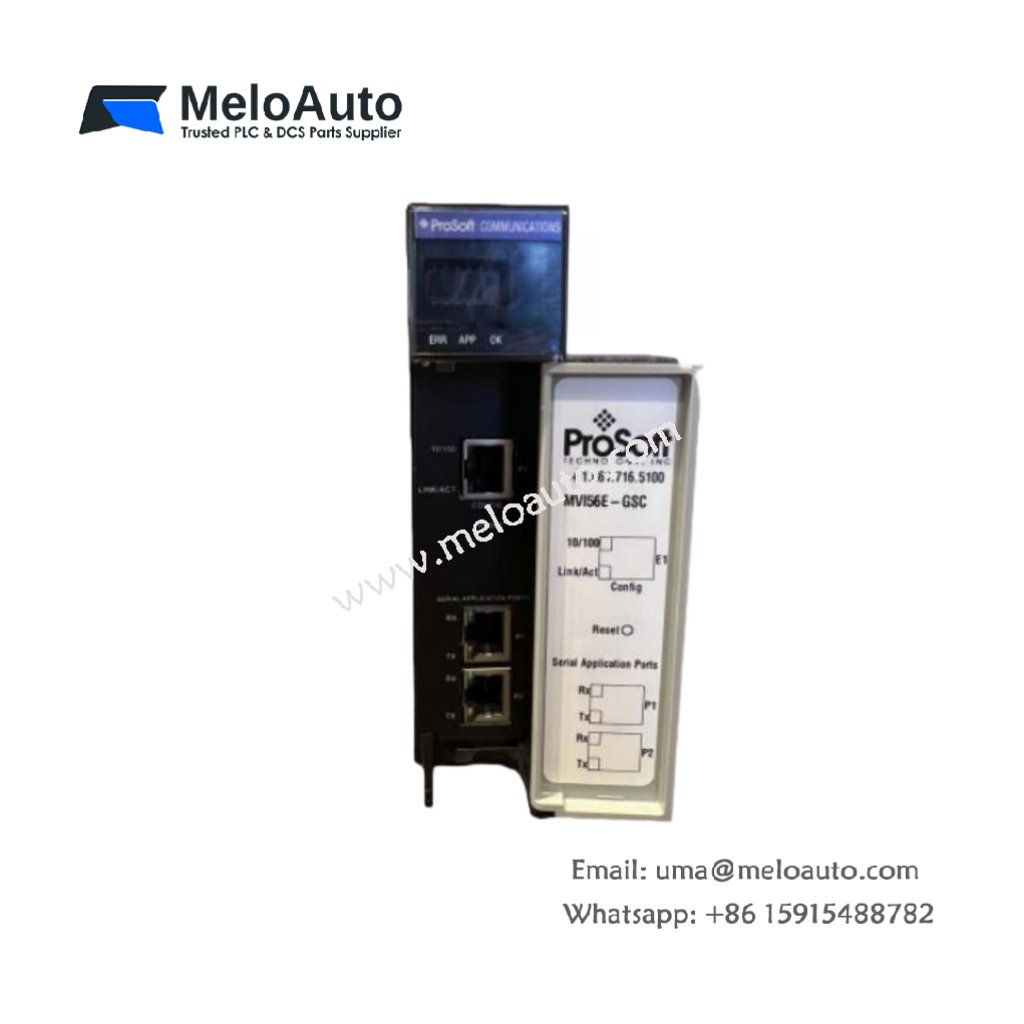

ProSoft MVI56E-GSC Generic ASCII Serial Communication Module

Product Overview

The MVI56E-GSC is a Generic ASCII Serial Enhanced Communication Module developed by ProSoft Technology for Rockwell Automation® ControlLogix® Programmable Logic Controllers (PLCs). This module allows ControlLogix® PLCs to seamlessly interface with a wide range of ASCII-based devices through serial communication protocols. It supports various ASCII protocols, including Modbus ASCII, DF1, DH+, and others, enabling flexible connectivity for diverse applications.

The MVI56E-GSC offers two RS-232/RS-422/RS-485 ports, providing reliable and efficient communication at data rates of up to 115.2 kbaud. This module is designed for easy configuration and use, making it ideal for industrial automation, process control, and building automation systems. With its compact design and low power consumption, the MVI56E-GSC is a versatile solution for connecting ControlLogix® PLCs with ASCII devices.

Key Features:

Flexible Communication: Two RS-232/RS-422/RS-485 ports for versatile connectivity options.
High Data Rates: Supports data transfer rates up to 115.2 kbaud, ensuring fast communication.
Protocol Support: Compatible with Modbus ASCII, DF1, DH+, and other ASCII protocols.
Easy Configuration: Simple setup process, compatible with RSLogix™ 5000 for fast integration.
Efficient Data Exchange: Enables reliable communication with ASCII devices, improving system performance.
Low Power Consumption: Operates at just 120 mA current consumption, ensuring energy efficiency.

Technical Specifications

Parameter	Details
Model	MVI56E-GSC
Manufacturer	ProSoft Technology
Product Type	Generic ASCII Serial Communication Module
Compatible Platforms	ControlLogix® PLCs
Ports	2 x RS-232/RS-422/RS-485
Supported Protocols	Modbus ASCII, DF1, DH+, and others
Data Transfer Rate	Up to 115.2 kbaud
Power Supply	12-24 VDC
Current Consumption	120 mA
Dimensions	127 x 102 x 23 mm
Weight	0.35 kg
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 85°C
Humidity	5% to 95% (non-condensing)
Vibration	5g at 10 to 500 Hz
Shock Resistance	30g for 11 ms

Applications

The MVI56E-GSC is ideal for a wide variety of industrial and control systems, including:

Connecting ASCII-based devices to ControlLogix® PLCs, enabling seamless communication.
Data acquisition and control systems, providing a reliable interface for remote devices.
Industrial automation and process control, facilitating the integration of diverse equipment.
Building automation and monitoring systems, ensuring efficient data exchange between devices.

The MVI56E-GSC offers exceptional flexibility and reliability, making it a key component in modern industrial automation systems.
