Legacy Controller Links with the 5201-DFNT-DH485

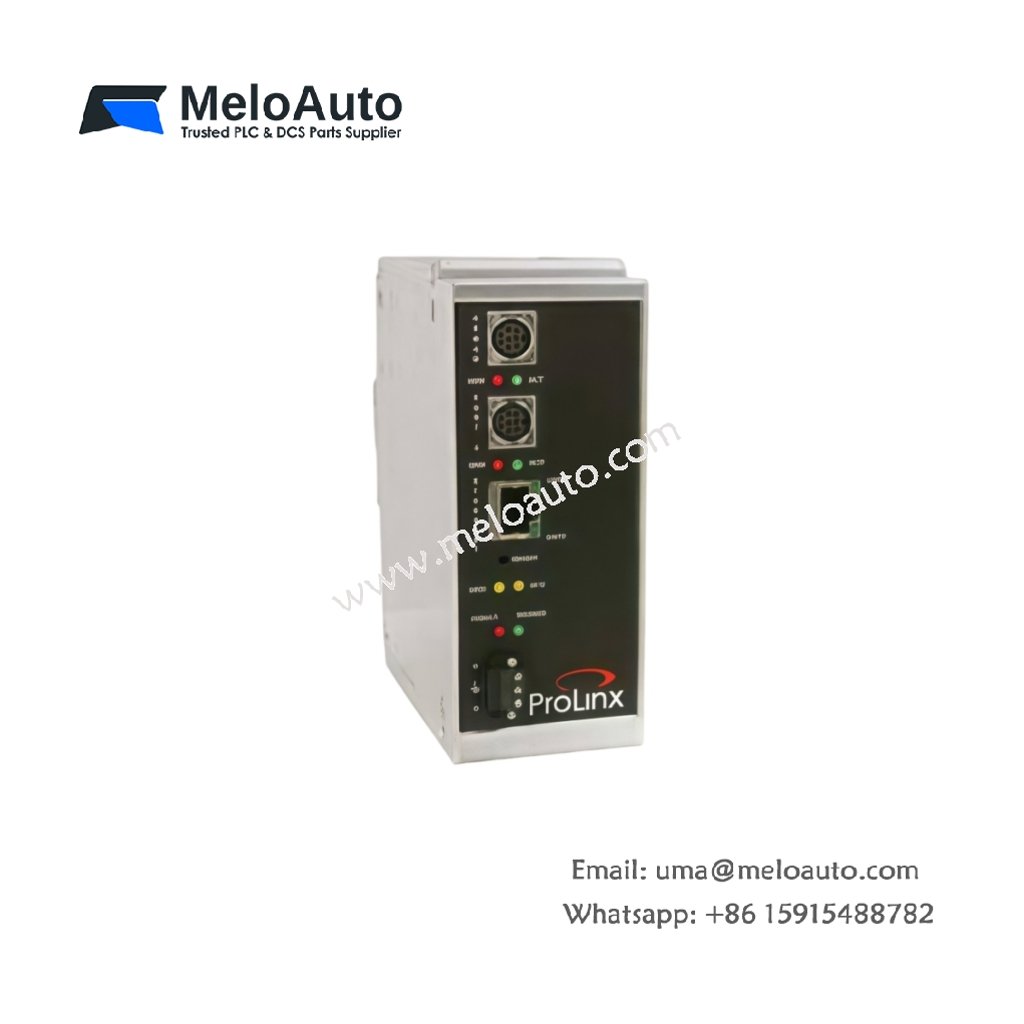

The 5201-DFNT-DH485 connects EtherNet/IP systems to legacy DH-485 networks in industrial plants. This gateway exchanges data between modern controllers and older SLC devices. System integrators therefore apply it when upgrading control architectures without replacing field hardware. Its DIN-rail housing mounts inside standard enclosures without extra brackets.
Detailed Technical Parameters
Protocol bridging defines the 5201-DFNT-DH485, because the processor board maps data between EtherNet/IP tags and DH-485 message frames. The serial port accepts standard RS-485 wiring through a terminal block. Meanwhile, the Ethernet port connects directly to the plant network. Review the essential specifications in the table below.
| Parameter | Specification |
|---|---|
| Function | EtherNet/IP to DH-485 protocol gateway |
| Network protocols | EtherNet/IP and DH-485 |
| Serial port | One RS-485 DH-485 port with terminal connections |
| Dimensions (W × H × D) | 90 × 140 × 115 mm |
| Weight | Approximately 0.8 kg |
| Interface | Ethernet port plus RS-485 terminals |
| Component count | Processor board plus serial transceiver stage |
| Energy storage | Local decoupling capacitor array |
| Operating temperature | 0 °C to 55 °C |
Integration into Control Systems
The 5201-DFNT-DH485 snaps onto a DIN rail and connects through standard cables. Commissioning engineers configure node addresses and data mapping through the setup software. Consequently, legacy devices return to service quickly after gateway replacement. The device converts protocol frames within milliseconds of each scan cycle. Furthermore, the metal housing resists interference from drives and power equipment nearby.
Why Plants Choose This Gateway
Many facilities still operate DH-485 networks for their proven field reliability. Hence, the 5201-DFNT-DH485 serves as a dependable spare for keeping legacy links online. Its standardized DIN-rail format simplifies stock management across multiple sites. In addition, the compact design reduces panel space requirements inside cabinets. This gateway keeps production data flowing and upgrade schedules on track.
