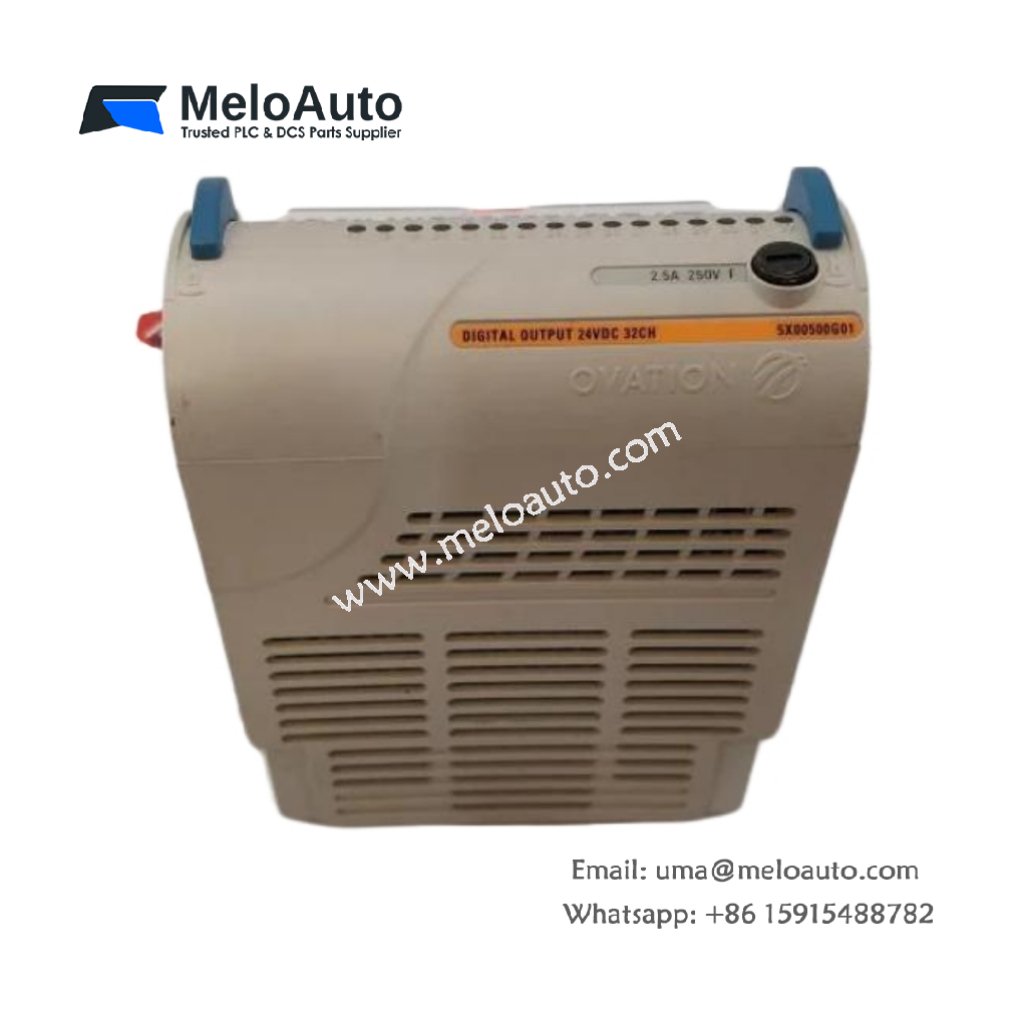

Ovation 5X00497G01 32 Channel Digital Output Module

The Emerson Ovation™ 5X00497G01 32 Channel Digital Output Module delivers reliable DC output switching for industrial control systems. Each channel sources up to 500 mA, while the total current is limited to 2 A, ensuring stable operation in high-demand environments.

Key Features

32 current sourcing channels with 24 VDC output power
Up to 500 mA per channel, with a maximum 2 A across all channels
Integrated galvanic isolation of ±1000 VDC between field and logic signals
Hot-swap functionality supports uninterrupted system operation
Field power monitoring ensures stable cabinet auxiliary 24 VDC supply
Software-configurable communication timeout for reset or latch actions
Built-in electronic ID stores type, group, serial number, and revision data
Kickback protection for inductive load switching reliability

Technical Specifications

Parameter	Specification
Channels per module	32 sourcing outputs
Output type	IEC 61131-2 compliant current sourcing DC output
Max output current (per channel)	500 mA
Max total output current	2 A
Module power dissipation	4.05 W max
Isolation voltage	±1000 VDC (field to logic)
Operating temperature	0°C to 60°C (32°F to 140°F)
Humidity range	0% to 95% non-condensing

Electrical Compliance

ESD Protection: EN 61000-4-2, 4 kV contact, 8 kV air discharge
RF Immunity: EN 61000-4-3, 80–1000 MHz, 10 V RMS/m
Burst Immunity: EN 61000-4-4, 1 kV peak
Surge Immunity: EN 61000-4-5, 1 kV common mode
RF Conducted Disturbances: EN 61000-4-6, 150 kHz–80 MHz, 3 V RMS
Surge Withstand: ANSI/IEEE C37.90.1-1989 SWC standard
Emissions Compliance: ENV 55011 ISM equipment limits
Safety Standard: EN 61010-1

Diagnostics and Maintenance

The 5X00497G01 module integrates advanced diagnostics to simplify system maintenance. LED indicators display:

Module power status
Communication integrity
Field power presence and fuse health
Internal hardware integrity
Per-channel output status for all 32 channels

Required Base Module

This unit requires a 4-slot I/O base (part number 5X00497G01) for complete installation. The base provides terminal wiring support for all 32 output channels.
