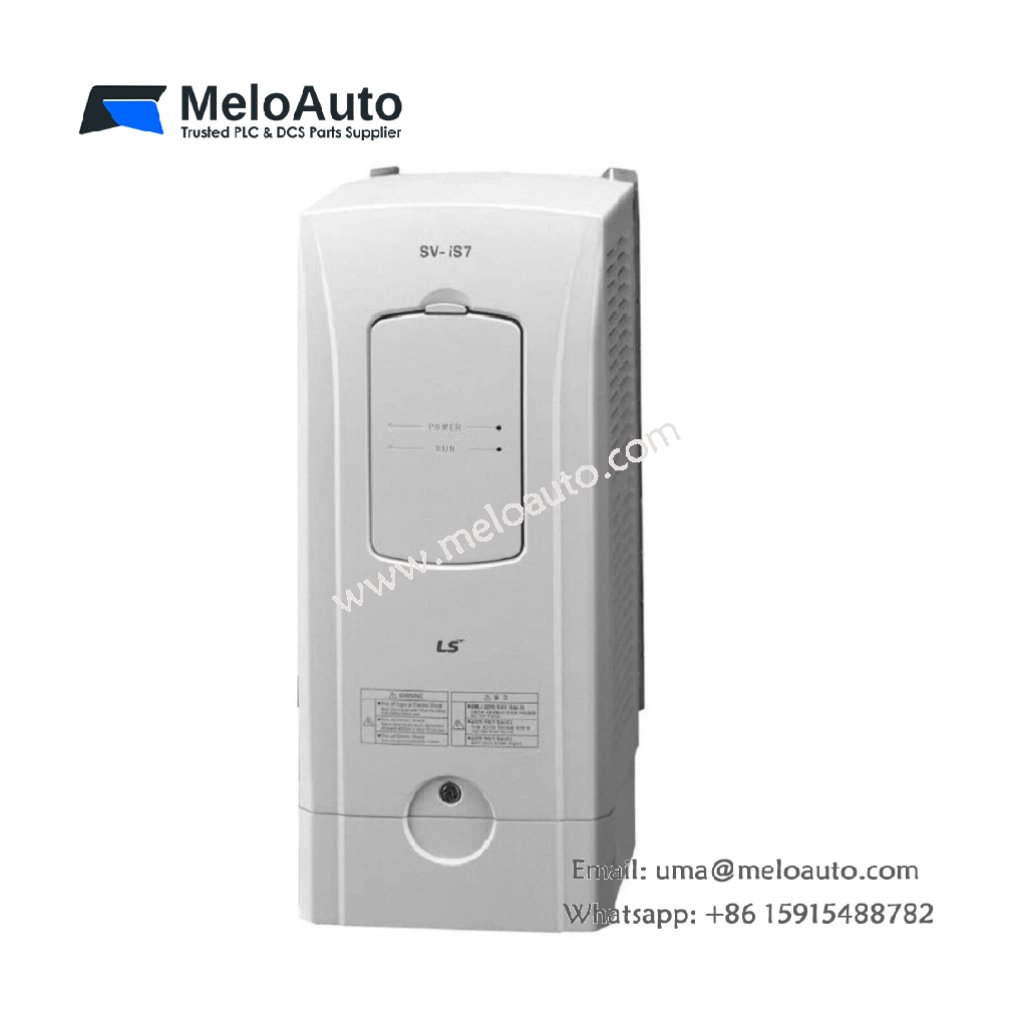

LS iS7 SV0008IS7-4NO VFD | 1-2 HP Variable Frequency Drive

Product Overview

The LS iS7 SV0008IS7-4NO variable frequency drive (VFD) provides precise motor control for industrial applications. It supports constant torque and variable torque modes with selectable V/f, V/f PG, sensorless vector, and sensored vector. Equipped with a high-speed 150 MIPS DSP, built-in RS485 communication, and a wide graphic LCD keypad, it ensures easy operation and fast setup. Available with an optional IP54 enclosure, this drive suits demanding environments and offers reliable performance for 3-phase motors up to 2 HP.

Key Features

• Selectable V/f, V/f PG, sensorless vector, and sensored vector control
• Easy Start Mode for quick setup and user convenience
• Built-in RS485 communication with LS Bus and Modbus RTU
• Wide graphic LCD keypad supporting six languages
• IP54 enclosure available as a built-in option
• Second motor control with independent parameter settings

Technical Specifications

• Series: iS7
• Model: SV0008IS7-4NO
• Brand: LS
• Condition: New
• Horsepower Rating: 1 HP / 2 HP
• Rated Voltage: 480 V
• Rated Amps: 2.5 A / 4 A
• Output Voltage: 480 V
• Output Current: 2.5 A
• Phase: 3-Phase Input / 3-Phase Output
• Overload Capacity: 110% OL = 2 HP, 150% OL = 1 HP
• Enclosure Rating: IP21

Benefits

The LS iS7 SV0008IS7-4NO delivers flexibility, easy control, and strong performance. It suits demanding industrial applications requiring accurate speed and torque management.
