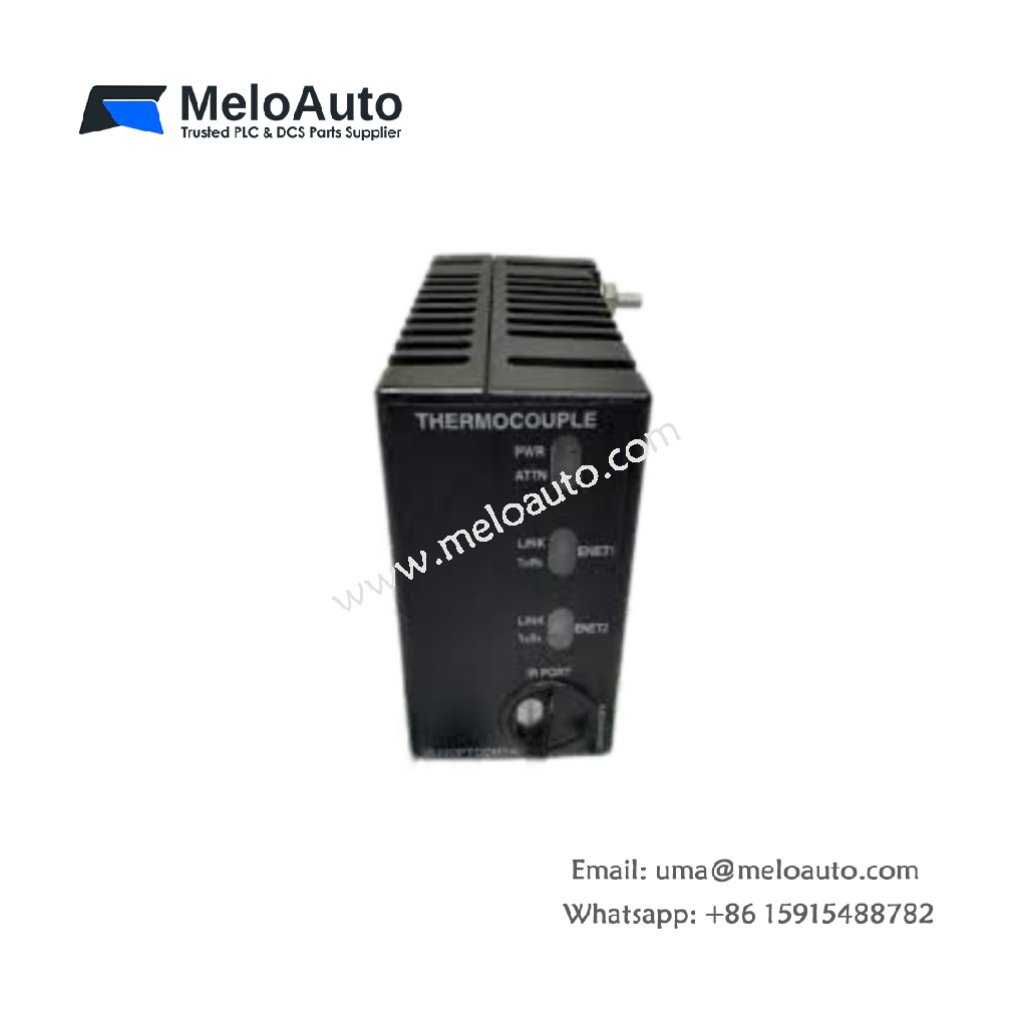

GE IS220PTCCH1A Speedtronic Turbine Control Board

The GE IS220PTCCH1A board provides thermocouple input functions for Speedtronic systems. This turbine control board monitors exhaust and bearing temperatures continuously. It accepts multiple thermocouple types for gas and steam turbines. The board delivers high-accuracy data for critical thermal protection.

Technical Specifications of GE IS220PTCCH1A

Component Count and Board Construction

The GE IS220PTCCH1A board contains over 210 discrete components. You will find multiple high-precision operational amplifiers for signal conditioning. Furthermore, the board includes a dedicated cold junction compensation sensor. The assembly also features optical isolation for each input channel. LED indicators show channel activity and fault status.

Interfaces, Energy Storage, and Signal Processing

The GE IS220PTCCH1A provides removable terminal blocks for thermocouple wiring. Moreover, the board uses capacitors for input filter networks. These capacitors store minimal energy but reject 60 Hz noise effectively. Each channel includes a 24-bit analog-to-digital converter for high resolution. The cold junction sensor maintains accurate reference temperature.

Functional Logic and Application Context

This Speedtronic board samples all eight thermocouple inputs at 10 Hz continuously. It then converts microvolt signals into linearized temperature readings. The GE IS220PTCCH1A performs automatic cold junction compensation for each channel. Additionally, it detects open thermocouple conditions and reports sensor failures. Consequently, the board ensures reliable temperature monitoring in harsh turbine environments.

Channel Configuration and Burnout Detection

You can configure each channel for a specific thermocouple type independently. The board provides built-in burnout detection for broken sensor wires. Furthermore, the GE IS220PTCCH1A applies software linearization tables for accuracy. This linearization covers the full temperature range of each sensor type. The board also includes averaging filters for noise reduction on critical channels.

Installation and Environmental Limits

You must power down the rack before inserting this control board. The operating temperature range spans -30°C to +65°C . Furthermore, the board provides 1500 V isolation between inputs and logic. Always verify the GE IS220PTCCH1A channel configuration before connecting sensors. Use proper thermocouple extension wire for accurate readings.
