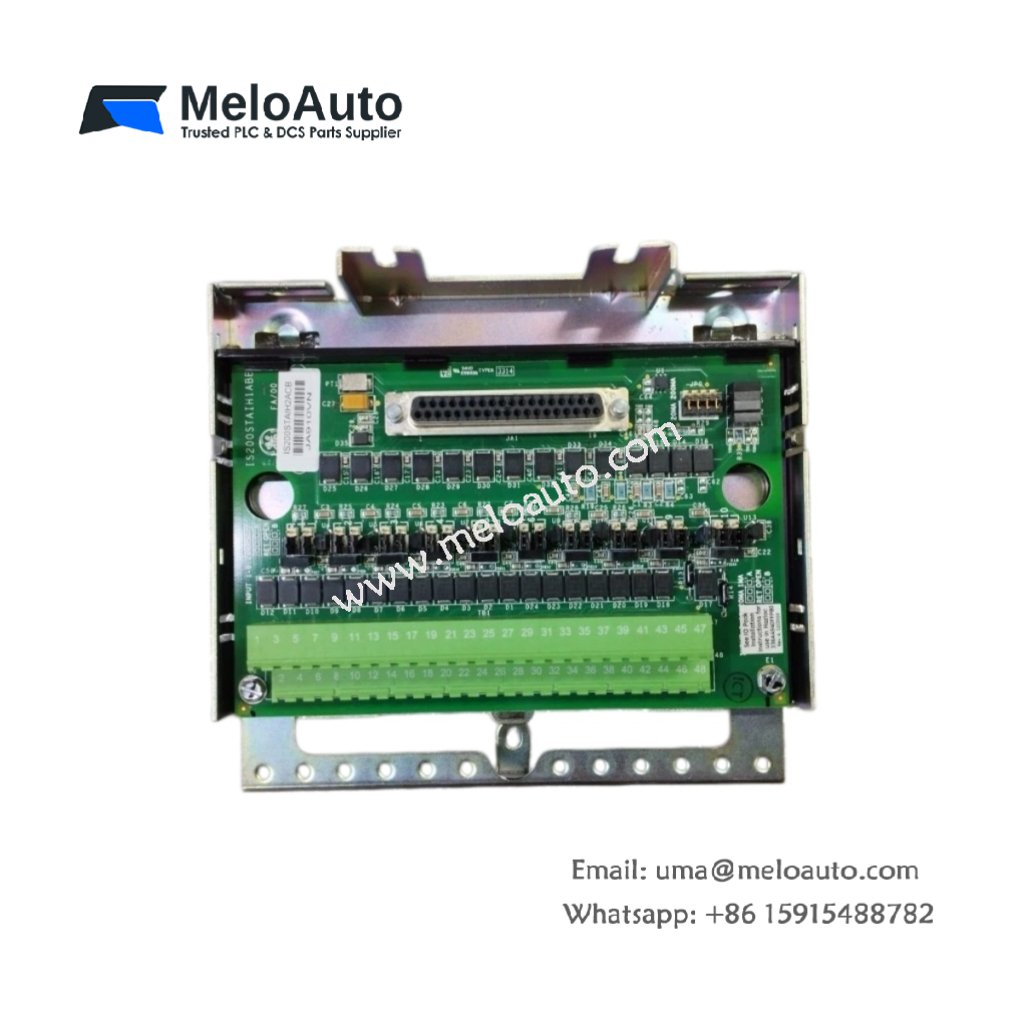

GE IS200WDIIH3A IS200WDIIH3ABB WDII Digital Input PCB Board

The GE IS200WDIIH3A board provides digital input functions for Mark VI systems. This WDII digital input PCB also carries the revision code IS200WDIIH3ABB . It reads status from field switches and sensors continuously. The board delivers reliable signal acquisition for turbine protection applications.

Technical Specifications of GE IS200WDIIH3A IS200WDIIH3ABB

Component Count and Board Construction

The GE IS200WDIIH3A board contains over 250 discrete components. You will find opto-isolators for each input channel. Furthermore, the board includes filtering circuits for noise rejection. The assembly also features LED indicators for every input point. A ribbon cable connector interfaces with the main controller.

Interfaces, Energy Storage, and Signal Processing

The IS200WDIIH3ABB revision provides screw terminal blocks for all field wiring. Moreover, the board uses capacitors for input debouncing and filtering. These capacitors store minimal energy for transient suppression. Each channel includes a dedicated opto-isolator for voltage level shifting. The board supports both sinking and sourcing field device configurations.

Functional Logic and Application Context

This Mark VI board scans all 32 input channels continuously. It then transmits these digital values to the main controller. The GE IS200WDIIH3A reads status from limit switches, pushbuttons, and pressure switches. Additionally, it filters electrical noise from field wiring. Consequently, the board provides clean, reliable digital signals for turbine logic.

Configuration and Diagnostic Features

You can configure each input channel independently for sink or source wiring. The board includes built-in LED indicators for visual status verification. Furthermore, the IS200WDIIH3ABB provides channel-level fault detection. This detection identifies open-wire conditions in the field. The board also features removable terminal blocks for easy maintenance.

Installation and Environmental Limits

You must isolate the 24 V DC supply before removing this PCB. The operating temperature range spans -30°C to +65°C . Furthermore, the board withstands 5 g vibration without signal interruption. Always verify the IS200WDIIH3ABB configuration before connecting field devices. Use proper wire ferrules for reliable screw terminal connections.
