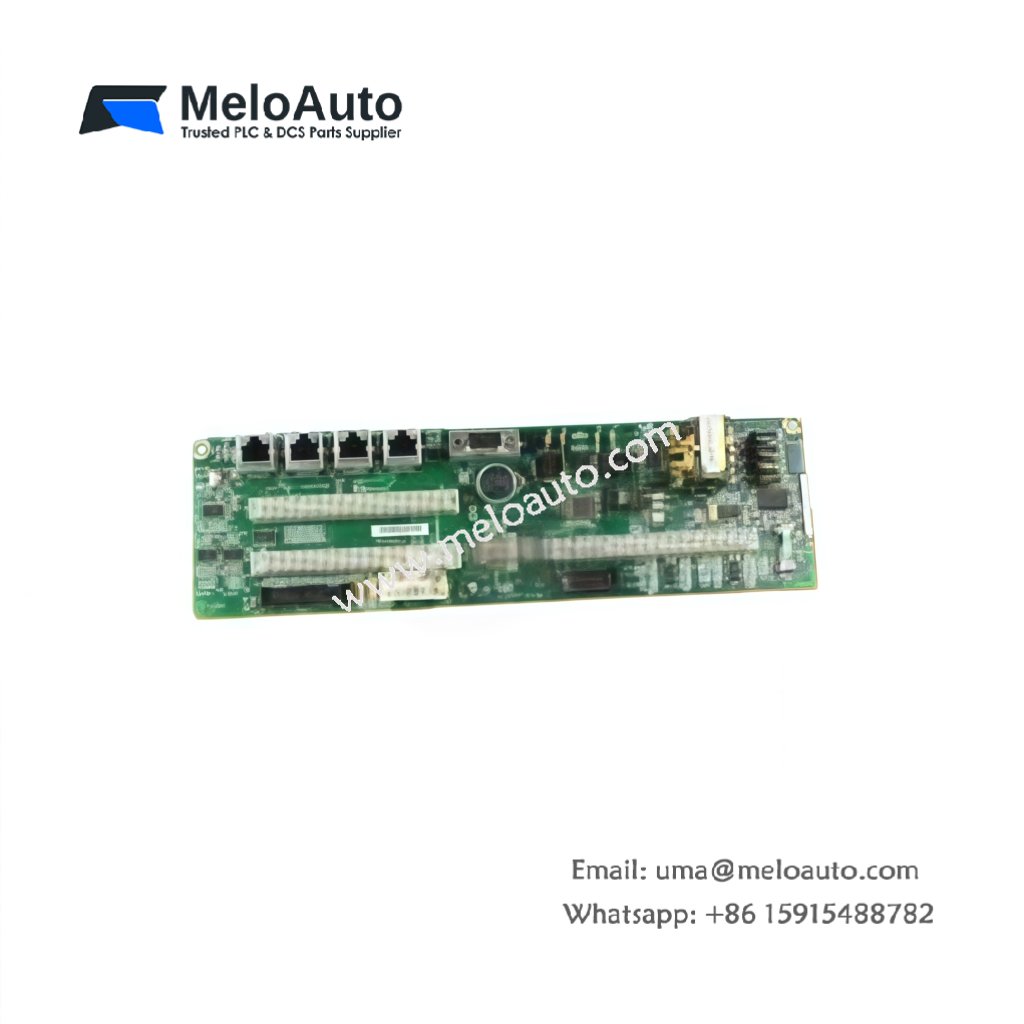

IS200ICBDH1A IS200ICBDH1ABA GE | Innovation Control Board

The GE IS200ICBDH1A board serves as the main controller for Mark VI systems. This innovation control board also carries the revision code IS200ICBDH1ABA . It executes turbine control algorithms with high precision. The board manages communication between multiple I/O racks.

Technical Specifications of GE IS200ICBDH1A IS200ICBDH1ABA

Parameter	Specification
Manufacturer	General Electric (GE)
Series	Mark VI Speedtronic
Full Model	GE IS200ICBDH1A (IS200ICBDH1ABA)
Board Dimensions	26.04 cm x 24.13 cm x 2.54 cm
Weight	Approximately 0.78 kg
Processor	32-bit RISC (Embedded)
RAM Memory	64 MB (SDRAM)
Flash Storage	32 MB (Non-volatile)
Communication Ports	2 Ethernet, 2 Serial
Supply Voltage	24 V DC (Nominal)
Power Dissipation	15 W (Typical)

Component Count and Board Construction

The GE IS200ICBDH1A board contains over 380 discrete components. You will find a central processor with integrated memory controllers. Furthermore, the board includes Ethernet transceivers for network connectivity. The assembly also features status LEDs for each communication port. Watchdog timers provide fail-safe operation monitoring.

Interfaces, Energy Storage, and Memory Configuration

The IS200ICBDH1ABA revision provides dual Ethernet ports for redundant network paths. Moreover, the board uses capacitors for power supply decoupling. These capacitors store enough energy for 50 ms of hold-up time. The memory banks include both volatile RAM and non-volatile flash storage. A battery-backed real-time clock maintains accurate time.

Functional Logic and Application Context

This Mark VI board executes turbine control algorithms at 100 Hz cycle rates. It processes speed, load, and pressure feedback from field sensors. The GE IS200ICBDH1A calculates valve position demands for governor valves. Additionally, it monitors overspeed conditions and initiates trips when necessary. Consequently, the board ensures safe steam turbine operation across all load conditions.

Storage and Data Logging Features

The innovation control board stores configuration parameters in onboard flash memory. You can upload new control logic without removing the board. Furthermore, the IS200ICBDH1ABA maintains sequence-of-events logging with 1 ms resolution. This log captures all critical turbine events for analysis. The board also buffers trend data for performance monitoring.

Installation and Environmental Limits

You must power down the VME rack before inserting this control board. The operating temperature range spans 0°C to 60°C . Furthermore, the board withstands 5 g vibration without memory corruption. Always verify the IS200ICBDH1ABA firmware version matches your application requirements.
