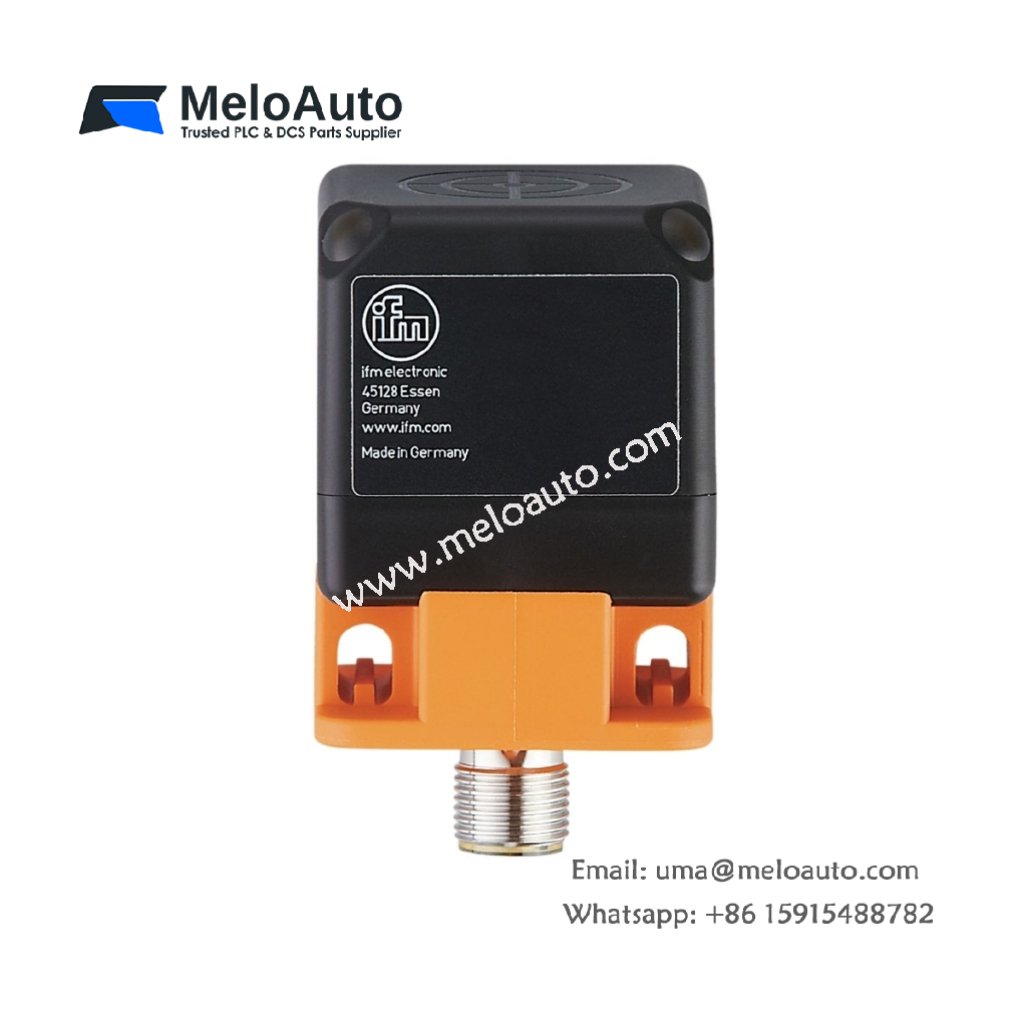

Ifm ANT512 DTRLF MCRWIDUS01 RFID Read/Write Head LF

The ifm ANT512 DTRLF MCRWIDUS01 RFID read/write head offers reliable identification of ID tags in industrial automation. Its durable rectangular housing and selectable sensing face positions ensure flexible integration in mounting, feeding, and handling applications.

Application and Design

Engineers use the ANT512 DTRLF MCRWIDUS01 to detect objects on transport equipment with precision. The device supports international radio approvals, making it suitable for deployment in global facilities. A long write/read distance and five selectable sensing face positions allow versatile installation.

Electrical and Performance Data

The RFID head operates with a 24 V DC supply while consuming less than 50 mA. It runs at 0.125 MHz frequency and supports a maximum travel speed of 0.5 m/s. Reading distance reaches 60 mm with static tags, while writing distance extends up to 55 mm.

Technical Specifications

Specification	Details
Article Number	ANT512 DTRLF MCRWIDUS01
Operating Voltage	24 V DC
Current Consumption	< 50 mA
Frequency	0.125 MHz
Read Distance	≤ 60 mm (static)
Write Distance	≤ 55 mm (static)
Travel Speed	< 0.5 m/s
Interface	DATA / DTE10x
Connection	M12 rotatable connector, A-coded
Housing Material	PA with stainless steel parts
Protection Rating	IP67 / IP69K
Dimensions	40 × 40 × 54 mm
Weight	185 g
Operating Temp.	-20 to +60 °C
Storage Temp.	-25 to +80 °C
Shock Resistance	40 g, 6 ms / 50 g, 11 ms
Vibration Resistance	20 g, 10–55 Hz
MTTF	536 years
Displays	Green LED (power), Yellow LED (tag comm.)

Reliability and Compliance

The ANT512 DTRLF MCRWIDUS01 withstands extreme shock and vibration conditions. With IP67 and IP69K protection, it operates reliably in harsh industrial environments. The unit supports compliance with EN 60068 standards, ensuring long-term durability.
