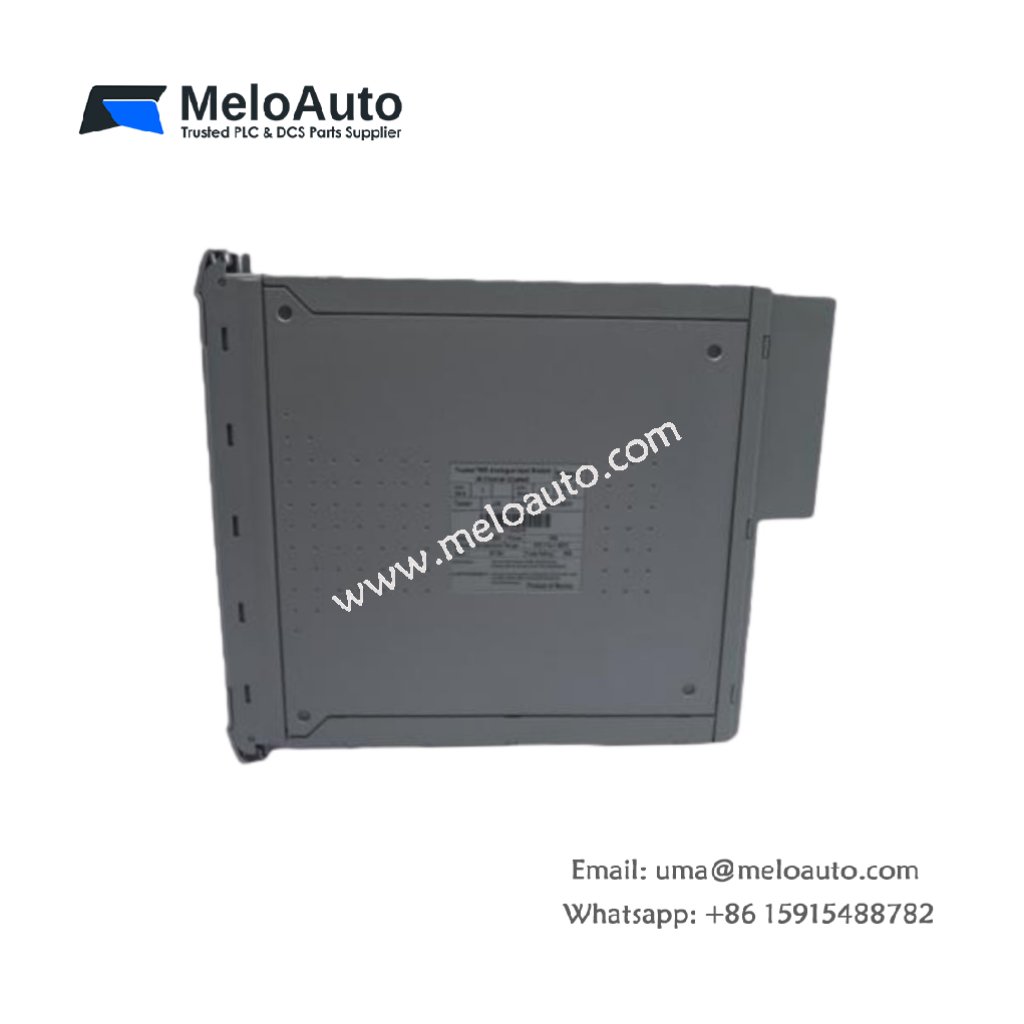

ICS Triplex TC51202 16-Channel Analog Input Module

The ICS Triplex TC51202 delivers high-performance analog signal acquisition for industrial PLC systems, supporting precise control in safety-critical and process automation environments. Designed for demanding applications, it ensures reliable operation while providing flexible configuration options for 16 input channels.

Key Features

The TC51202 integrates advanced analog processing, robust isolation, and calibration circuitry to optimize performance for industrial automation.

16 Analog Input Channels: Supports both differential and single-ended signal measurements.
Programmable Input Filters: Enables tailored filtering for noise reduction in high-demand environments.
Built-in Calibration: Maintains accuracy across all channels with automatic adjustment circuitry.
Channel Isolation: Ensures electrical separation between each input and ground for safety and signal integrity.
Rugged Industrial Design: Resistant to vibration, temperature fluctuations, and electromagnetic interference.
Easy Installation: DIN rail compatible with straightforward wiring and configuration.

Technical Specifications

Parameter	Specification
Model Number	TC51202
Input Channels	16 analog (differential or single-ended)
Input Range	±10 V or 0–10 V selectable
Input Impedance	1 MΩ typical
Isolation	Channel-to-channel and channel-to-ground
Calibration	Built-in calibration circuitry for all channels
Input Filters	Programmable low-pass filter
Power Supply	24 VDC nominal
Power Consumption	8 W typical
Operating Temperature	0°C to +60°C (32°F to 140°F)
Storage Temperature	–25°C to +70°C (–13°F to 158°F)
Humidity	10–95% RH non-condensing
Mounting	DIN rail compatible
Weight	1.4 kg (3.1 lb)

Origin

Parameter	Specification
Country of Manufacture	USA

Applications

High-precision process control in chemical, oil, and gas plants.
Safety-critical machinery monitoring and automated shutdown systems.
Machine control and industrial automation requiring reliable multi-channel analog input.
Retrofitting into existing ICS Triplex PLC systems for enhanced functionality.
