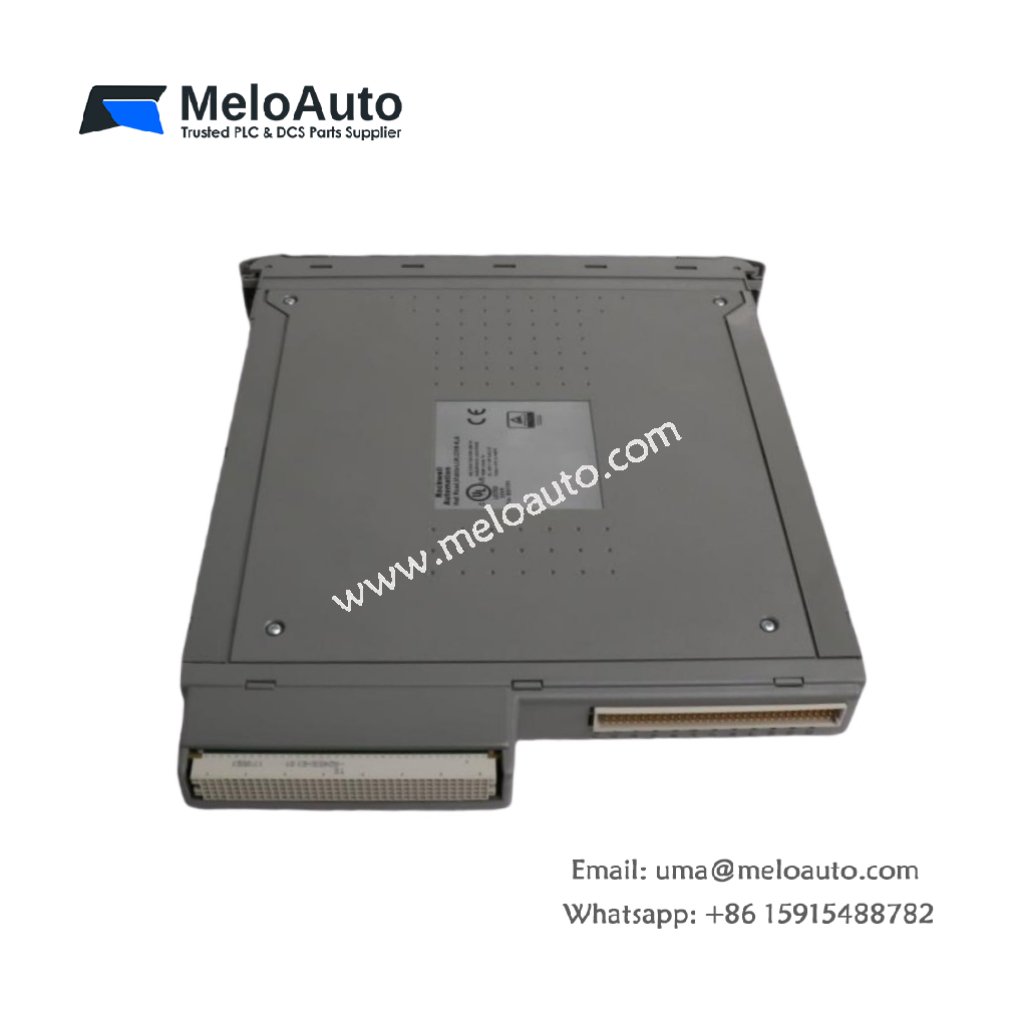

ICS Triplex TC21002 16-Channel Analog Input Module

The ICS Triplex TC21002 is a robust and high-performance 16-channel analog input module. Designed for use with ICS Triplex programmable logic controllers (PLCs), this module excels in demanding industrial applications. It provides reliable data acquisition, temperature and pressure measurements, and more. Ideal for machine control, process control, and motion control, the TC21002 ensures accurate and continuous performance even in challenging environments.

This module supports differential and single-ended inputs, offering versatility across a wide range of applications. It features programmable input filters for enhanced signal accuracy and built-in calibration circuitry for easy maintenance. The module’s rugged design ensures durability, and the isolation between channels and ground adds an extra layer of protection.

Key Features

• 16-Channel Analog Input: Allows monitoring of multiple sensors or devices simultaneously.
• Differential and Single-Ended Inputs: Provides flexible measurement options for various industrial applications.
• Programmable Input Filters: Improve signal processing and noise reduction.
• Built-in Calibration Circuitry: Ensures ease of maintenance and high accuracy.
• Isolation Between Channels and Ground: Protects equipment from electrical interference.
• Ruggedized Design: Built to withstand harsh industrial environments.
• Easy Installation and Configuration: Streamlined setup for quick integration into existing systems.

Technical Specifications

Product Origin, Dimensions & Weight

• Origin: Manufactured by Rockwell Automation as part of the ICS Triplex product line.
• Dimensions:
  • Width: 200 mm
  • Height: 150 mm
  • Depth: 100 mm
• Weight: 1.8 kg
