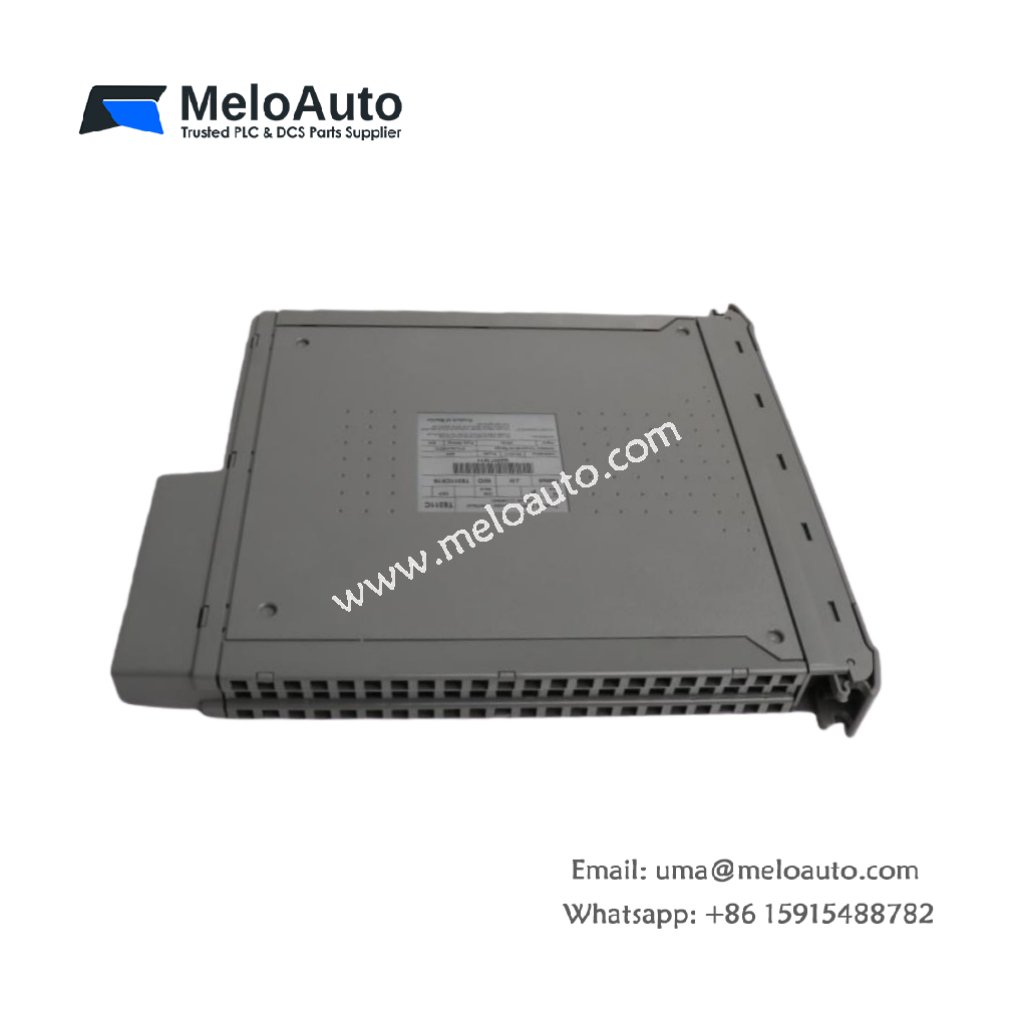

ICS Triplex TC00202 Motion Controller Module

Overview

The ICS Triplex TC00202 is a high-performance 2-axis motion controller, designed for seamless integration with ICS Triplex programmable logic controllers (PLCs). It offers precise motion control and operates efficiently in demanding industrial environments. Furthermore, it supports a wide range of motor types, allowing users to select the most suitable motor for their specific application.

Key Features

• Motor Compatibility: The module supports various motor types, including stepper motors, servomotors, and linear motors, ensuring versatility in different industrial tasks.
• Programmable Motion Profiles: Users can define motion profiles to match specific operational needs, providing greater flexibility in automation projects.
• Closed-Loop Control: The TC00202 offers accurate closed-loop control, which guarantees precise feedback for position and speed adjustments.
• Signal Isolation: It features isolation between control channels and ground, minimizing electrical interference and ensuring signal integrity.
• Rugged Design: Built to endure harsh conditions, the TC00202 performs reliably even in industrial settings with high levels of dust or vibration.
• User-Friendly Setup: The module is designed for quick and easy installation, ensuring minimal downtime and a hassle-free setup process.

Technical Specifications

Product Description

The ICS Triplex TC00202 motion controller module delivers reliable 2-axis motion control for industrial automation. With support for multiple motor types, this module provides flexibility for various application scenarios. Additionally, the programmable motion profiles allow users to design tailored motion patterns that fit their specific requirements.

Moreover, the TC00202 integrates programmable closed-loop control, offering real-time feedback for improved accuracy in position and speed management. This ensures precise control during operation, increasing overall system efficiency. The ruggedized design further enhances the module’s durability, making it suitable for use in industrial environments subject to extreme conditions such as temperature fluctuations and dust.

Thanks to its intuitive setup process, the ICS Triplex TC00202 is easy to install and configure, reducing the risk of installation errors and shortening the time required for system deployment. Whether you’re handling simple or complex motion control tasks, this module provides a dependable solution that can adapt to various operational needs.

Origin, Dimensions, and Weight

• Origin: Manufactured by ICS Triplex, a leading provider of industrial automation solutions.
• Dimensions: 100 mm x 75 mm x 30 mm (3.94 in x 2.95 in x 1.18 in)
• Weight: 0.7 kg (1.5 lbs)
