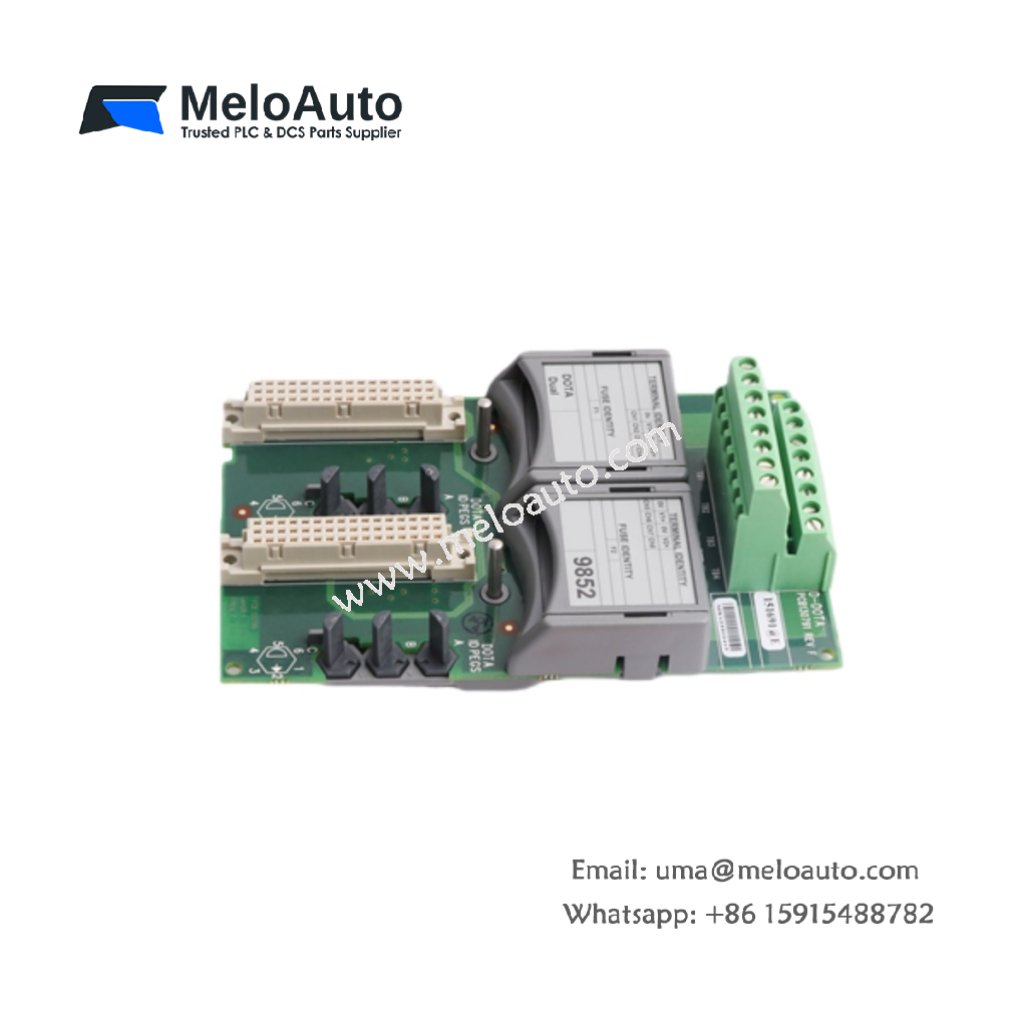

ICS Triplex T9852 – 8-Channel Redundant Digital Output Module

Product Overview

The ICS Triplex T9852 serves as a high-performance 8-channel digital output module within the ICS Triplex product line. Specifically designed for safety-critical applications, it provides dual redundant channels, ensuring continuous operation even when one channel fails. Each channel is equipped with its own microprocessor, power supply, and output circuitry, contributing to overall system reliability.

This module’s key features include on-board diagnostics for proactive maintenance, forced output testing for verification, and vent and bleed connections for efficient air purging. The ICS Triplex T9852 operates with both 24 VDC and 48 VDC outputs, supporting flexible integration into various industrial control systems. It mounts easily on DIN rails, making installation simple and secure.

Key Features

Dual Redundant Channels: With each channel running independently, the ICS Triplex T9852 maintains system reliability. If one channel fails, the other continues to operate seamlessly, preventing system downtime.
On-Board Diagnostics: The T9852 actively monitors its health. This feature helps users identify potential issues early, allowing for proactive maintenance and reducing the risk of failure.
Forced Output Test: Users can manually test each output channel to ensure proper functionality. This feature is crucial for verifying the system’s performance before full deployment.
Vent and Bleed Connections: The ICS Triplex T9852 includes vent and bleed connections, enabling quick air purging and improving operational efficiency during system maintenance.
DIN Rail Mounting: The module is designed to mount easily on standard DIN rails, ensuring a simple, secure installation process in industrial environments.

Technical Specifications

Parameter	Value
Number of Channels	8
Output Type	Digital
Output Current	2A per channel
Output Voltage	24 VDC or 48 VDC
Response Time	Less than 1 ms
Operating Temperature	-40°C to +70°C
Storage Temperature	-40°C to +85°C
Humidity	5% to 95% non-condensing
Vibration	5 to 20g, 10 to 500 Hz
Shock	15g, 11 ms
Certifications	CE, UL, CSA
